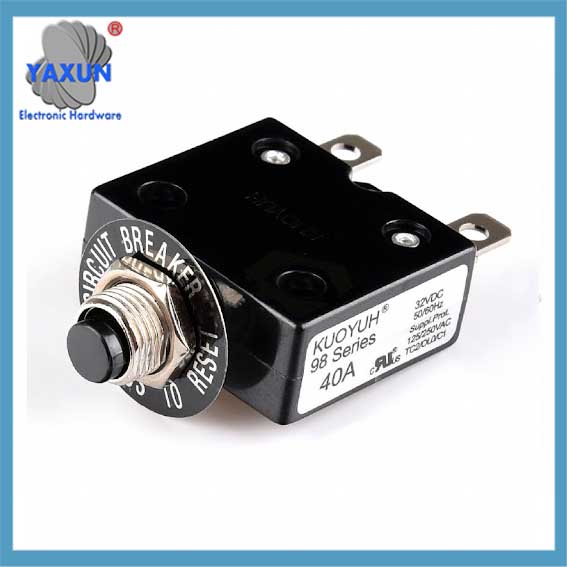

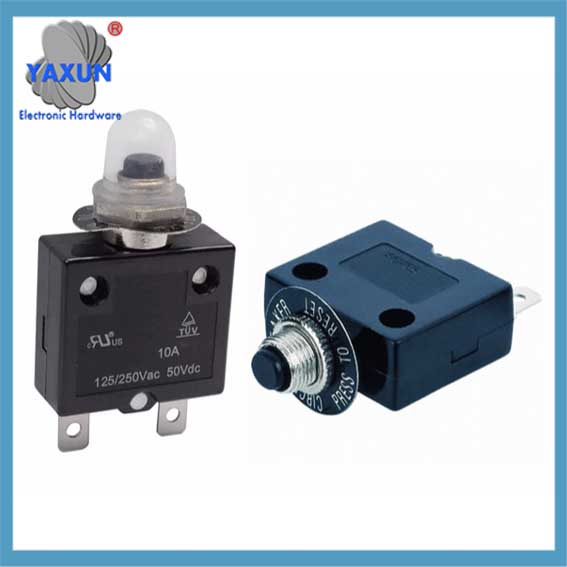

98 Series Manual Reset Thermal Overload Protector Switch Electronic Circuit Breaker
98 series equipment circuit breaker (commonly known as Motor overcurrent protector). Suitable for overload protection in branch circuits inside electrical equipment with AC 50/60Hz, rated working voltage up to 250Vac, DC 32Vdc, and rated current up to 50A.
98 series equipment circuit breaker (commonly known as Motor overcurrent protector). Suitable for overload protection in branch circuits inside electrical equipment with AC 50/60Hz, rated working voltage up to 250Vac, DC 32Vdc, and rated current up to 50A.
Working principle: There is a hot metal sheet inside the 98 series overcurrent protector, which is composed of two different metals. When current passes through, the bimetallic strip will heat up. Due to the different expansion coefficients of the metal strips, force is generated, causing mechanical movement within a certain time range. Overcurrent protection is achieved through mechanical structure. The bimetallic strip has passed experimental tests during production.
It is widely used in various electromechanical appliances, such as: automotive industry electrical equipment, winches, DC power supply equipment, electric vehicles, зарядни устройства, motors, и т.н.
88/98 series overload protector
[Модел]: 88/98
[Номинален ток]: 3A~25A
[Номинално напрежение]: 125/250V AC 50VDC 50~60HZ
Electrical specifications:
100% current test: no tripping
150% current test: tripping within 1 hour
200% current test: tripping within 5~25 seconds
300% current test: tripping within 1.6~4.8 seconds
Application range:
Water dispenser, electric water heater, refrigerator, air conditioner laminating machine, microwave oven, dishwasher, dryer, disinfection cabinet, sandwich toaster, electric coffee pot, electric cooker, office equipment, car seat heater
