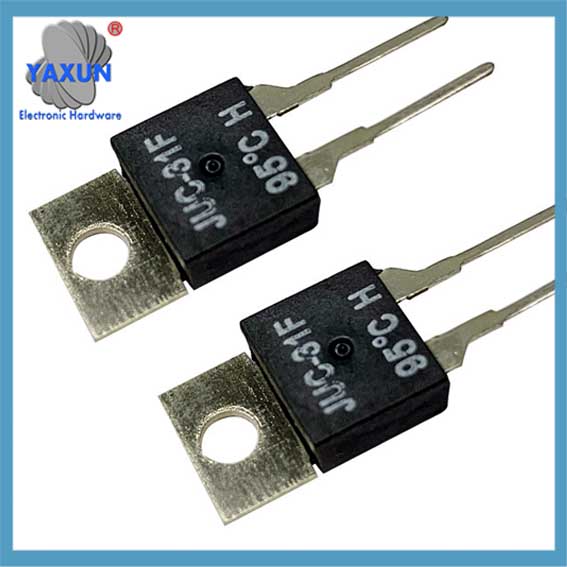

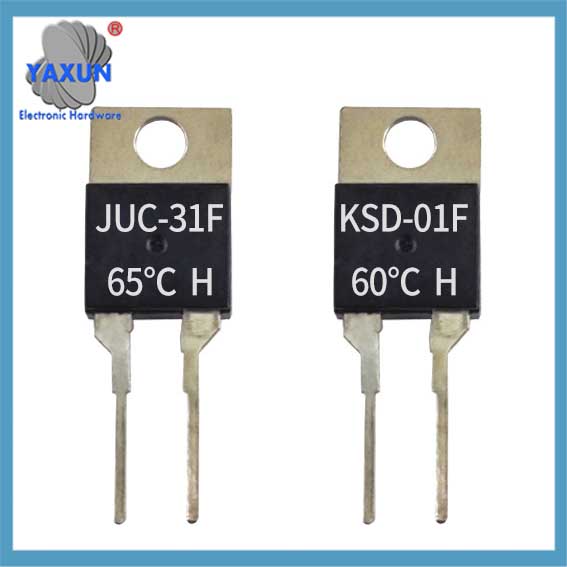

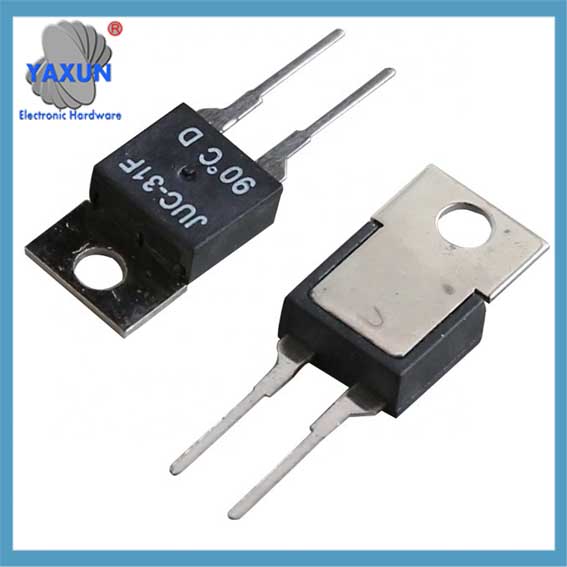

Китайски термопревключвател TO-220 JUC-31F/ KSD-01F instead 6700 серия субминиатюрен термостат. JUC-31F/KSD-01F е RoHS съвместим, положително бързо действие, еднополюсен / едно хвърляне, субминиатюрен биметален термостат, който осигурява точно и надеждно отчитане и превключване в едно устройство. The JUC-31F/ KSD-01Е, 6700 series thermostat dimensionally conforms to the international product package standard Y220 / TO220.

6700 30-150Deg Претоварване 250V 2A Мини термичен превключвател

KSD-01F 250V 2A Mini Bimetallic Thermostat Thermal Switch

KSD-01F Превключвател за термично изключване , Превключвател за термично изключване с докосване

Така, theJUC-31F / KSD-01Е, 6700 may be automatically placed and soldered onto PC boards with high speed automated equipment, eliminating the need for the expensive hand placement and termination required today for most power supply thermostats.

JUC-31F / KSD-01Е, 6700 Характеристики
RoHS compliant per EU directive 2002 / 95 / EC, УЛ, TUV;
TO-220 / Y-220 international electronic package standard;
Ideal for surface and air sensing on PC boards and heat sinks;
VDE approved with “P” bracket option;
Gold-plated contacts;
Up to 20,000 life cycles @ max standard amperage;
Up to 100,000 life cycles @ max gold contact amperage;

Контактна съпротива : 50 милиома макс (before and after rated life)
Contact Ratings : Cycles Voltage Amps (резистивен); 20,000 48 VDC 0.5; 100,000 5 VDC 0.001 (gold).
Contact Operations : Either close on rise (make) or open on rise (почивка)
Работна температура : 40°C to 130°C (104°F to 266°F)
Temperature Tolerance : Standard of ±5°C (±9°F) with nominal operating temperature settings in 5°C increments
Short Term / Long Term Exposure Limit Short = 260°C (500°F), 10 second duration; Long = -55°C to 160°C (-67°F to 320°F)
Диелектрична якост : Nickel-plated copper bracket has 1480 VAC 60Hz, 1 second duration terminals to case. Plastic bracket has 2000 VAC 60Hz, 1 second duration terminals to case.
Изолационно съпротивление : 100 Mohms at 500 VDC
Contact Bounce : 3 milliseconds max (make)
Vibration : Per Mil-Std-202, method 204D, test condition D, 10 към 2,000 Hz
Shock : Per Mil-Std-202, method 213, test condition C, 100 G’s for 6 millisecond duration, 1⁄2 sine wave
Seal : High temperature epoxy sealed for wave soldering and cleaning, moisture proof per Sensata specification S-722 (unit will not leak while submerged in 9” of water for a minimum of two minutes)
Base Material : PPS (Polyphenylene Sulfide), 94 VO rated
Терминален материал : 65% Copper, 18% Nickel
Контактен материал : Gold-plated or overlay, silver crossbar
Mounting Bracket Material : Nickel-plated copper bracket has 1480 VAC 60Hz, 1 second duration terminals to case. Plastic bracket has 2000 VAC 60Hz, 1 second duration terminals to case.
Chemical Resistance : Unit is resistance to water, salt, alcohol, ammonia, trichlorethane and most other organic solvents
Запояемост : Terminal material is selectively striped with lead-free solder for improved solderability
Soldering Heat Resistance : Per Mil-Std-202G, method 210F, test condition C & К, test condition K validated at 260°C for 25 секунди
Тегло : Approximately 0.5 grams
Agency Approvals : cЯUus recognized E36687
VDE approval 0631/12.83 : RoHS Compliant per EU Directive 2002/95/EC

Тип:	Switch Snap Action	Приложение:	PCB,power Suppl
Supplier Type:	Original Manufacturer	Cross Reference:	KSD-01Е, KSD-05Е
Media Available:	Datasheet, Photo, EDA/CAD Models	Contact Type:	D For Normally Closed & H For Normally Open
Temperature Deviation:	±3°C / ±5°C / ±7°C	Life Cycle:	10000пъти
MOQ:	1000PCS	Payment Method:	TT Or Negotiate Payment Term
Време за доставка:	7 To 15 Working Days	Модел:	JUC-31F
Raw Material:	Sliver, Copper, Пластмаса, Метал, Aluminum	Електрическа оценка:	AC250V / 5А;AC250V 10A; AC125V / 8А
Action Temperature Range:	0~130℃ (one Step For Every 5°C)
Висока светлина:	Bimetallic Thermostat Switch for PCB, 2A Bimetallic Thermostat Mini Thermal Switch

Mini Bimetallic Thermostat Thermal Controller Switch JUC-31F 250V 2A 0 To 130 Degree

Електрическа оценка	AC250V / 5А;AC250V 10A; AC125V / 8А
Action Temperature range	0~130℃ (one step for every 5°C)
Recovery and action temperature difference	Operating temperature decrease by 15-45°C
Temperature deviation	±3°C / ±5°C / ±7°C
Circuit resistance	≤50mΩ (Initial value)
Изолационно съпротивление	≥100mΩ (DC500V Normal State)
Диелектрична якост	AC50Hz 1500V / Мин, no breakdown blinding (Normal State)
Life cycle	10000 пъти
Contact type	D for Normally closed & H for Normally open
Време за доставка	7 към 15 working days
MOQ	1000PCS
Payment method	TT or negotiate payment term
Време за доставка	7 към 15 working days
MOQ	500PCS
Scope of application	JUC-31F thermostat is applicable to Electric equipment, electric product, household appliance, the protection of temperature control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers, inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,военни, Commercial product temperature control or temperature protection.

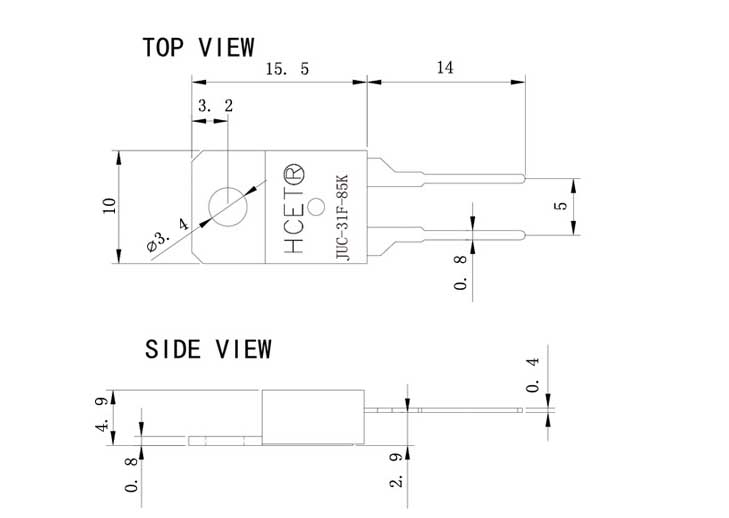

6700 TO220 Thermostat Thermal Switch Dimensions

1. JUC-31F thermostat’s Principle and structure
The product is a sensor of belonging to touch-type plastic Snap temperature thermostat ,the adoption of international TO220/Y220 standard package ,the product has high reliability ,sensitive and accurate ,малък размер ,леко тегло ,very easy to install and so on , very suitable for PCB circuit board / heat equipment/ power device installed Specification
2. JUC-31F thermal protector’s Specification
2.1. Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
2.2. Contact type : D for normally closed type; H for normally open type
2.3. температура

Operating temperature/°C	Recovery temperature/°C(lower than Operating temperature)	Error	Testing way (Speed of temperature rise and fall)
0~99	5~35	±3°C	1°C/min
100~130	7~40	±5°C	1°C/min

2.4. Overheating temperature:250 степени
2.5. Контактно съпротивление: less than 50mΩ
2.6. Изолационно съпротивление : повече от 100 mΩ
2.7. Dielectric withstand voltage: more than 1500V
2.8. Product life: повече от 10000 пъти
2.9. Тегло:1.7 ж
2.10. Action temperature deviations:+-5 степени
3. The drawing of JUC-31F
