Ignition Protected Battery CF Terminal Fuse Holder and Fuses

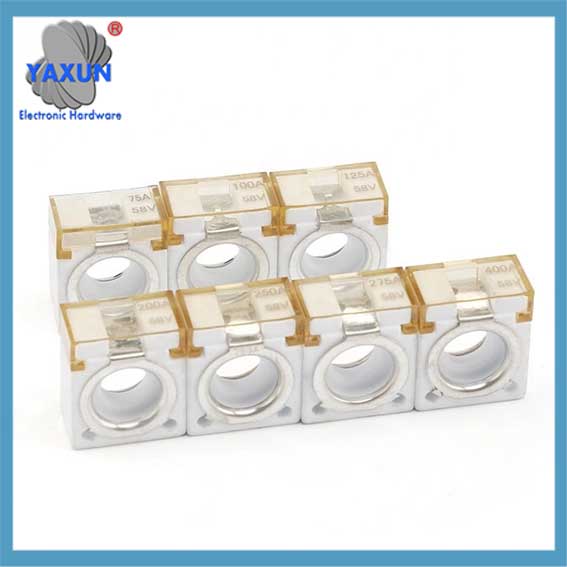

CF 58V automotive Ignition Protected fuses serve as battery terminal fuses. Each installs on a pole in a bolt-down fuse holder and power distribution block to provide fast-acting circuit protection. Max current 500 amp. Stud size M8. Buy CF8 799 Series fuse holders separately.

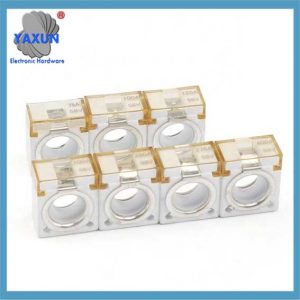

CF 58V automotive fuses serve as battery terminal fuses

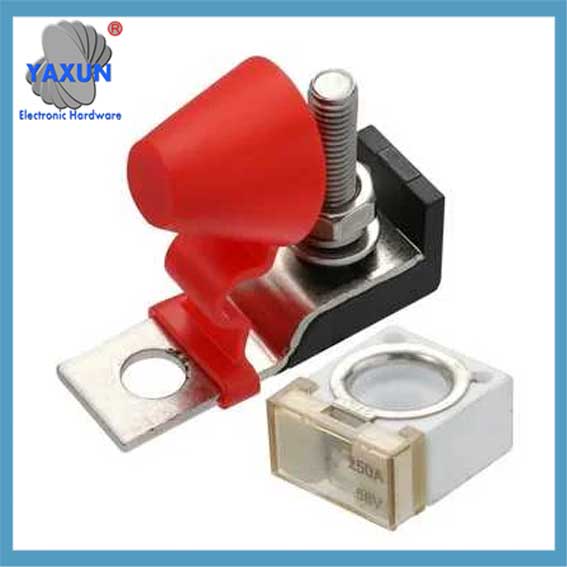

CF TERMINAL FUSE HOLDER AND FUSES

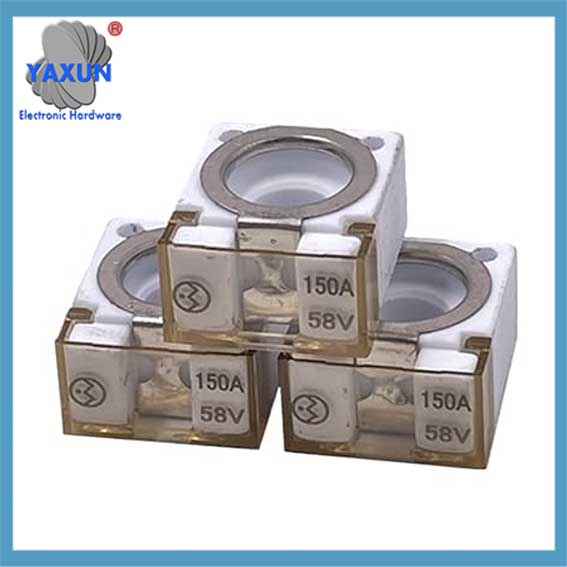

ADH-FL 50A-300A RV, Yacht, and Boat Battery Fuse Ceramic Square Fuse

и:	30A To 500A	Ур:	58Vdc
Сертификация:	ROHS	Материал:	Plastic,керамични
Stud:	Stainless Steel	Screw:	Steel, Zinc Plated
Приложение:	Автомобилна, Marine, RV, Yacht, Etc
Висока светлина:	58V Ceramic Fuse, MRBF Ceramic Fuse, 58V Marine Rated Battery Fuses

Описание на продукта

Име на продукта	Ignition Protected CF Battery Fuse
Номинален ток	30A 40A 50A 60A 70A 80A 100A 120A 150A 200A 300A 400A 500A
Номинално напрежение	58В DC
Base	ThermopIastic
Housing	Plastic
Insulated Material	Керамика
Stud	Stainless Steel
Screw	Steel, Zinc Plated
Melting Element	Copper Alloy
Приложение	Автомобилна, Marine, RV, Yacht, и т.н

Характеристики
Fast-acting
Available with ratings of 50 A to 300 А
Interrupting ratings of 2 kA at 58 Vdc
50 A to 100 A fuses operate at up to 105 °C; 125 A to 300 A fuses operate at up to 125 °C
Tin-plated zinc alloy terminals
Ceramic insulating bodies
Transparent PES covers
Comply with ISO 8820-6 and DIN 72581-5
UL Recognized in Canada and the United States as UL 248 Special Purpose Fuses (File e211637)
Certified lead-free and RoHS compliant
