KSD301 N.C 10A M4 Copper Screw Mount Thermostat, Temperature Control Switch 80°C

Buy KSD301 M4 Copper Probe Thread Thermostat Bimetallic 40C-150C Degree 10A 250V Normally closed 45C 55C 65C 75C 90C 100C 130C 150C Degree . Auto / Manual Reset Temperature Switch Thermo Disc Switch M4 Screw Copper KSD301 Thermostat ; Номинално напрежение(Ur), AC250V ; Action temperature Tolerance, 士5°C.

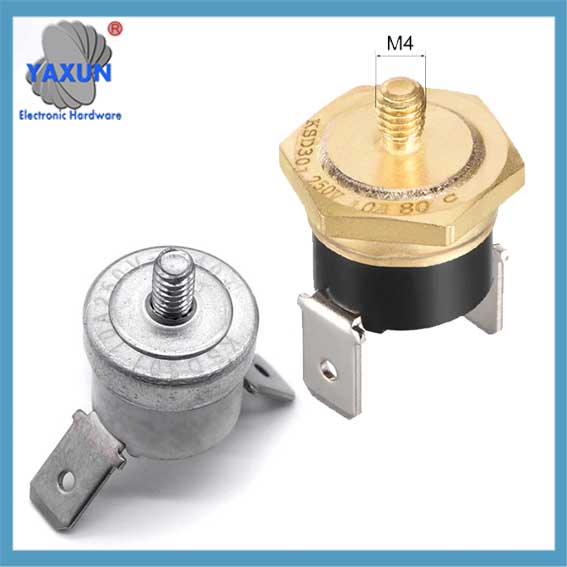

M6 M5 M4 Hex Copper Head 10A 15A 16A 250V KSD301 Ceramic Bimetal Thermal Switch

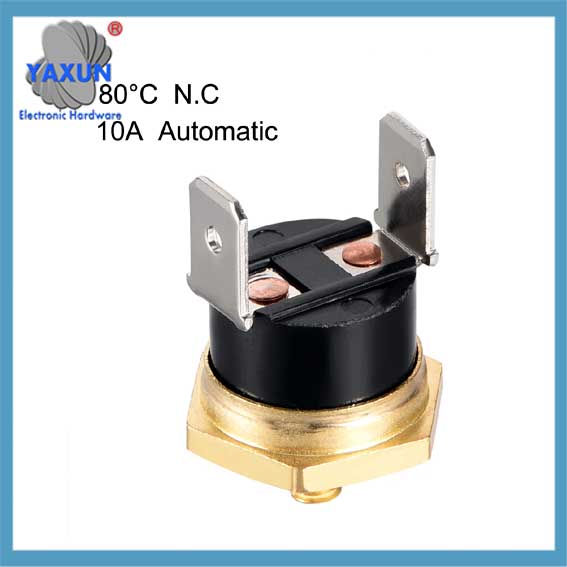

Uxcell KSD301 Thermostat, Temperature Control Switch 80°C Copper M4 Normally Closed

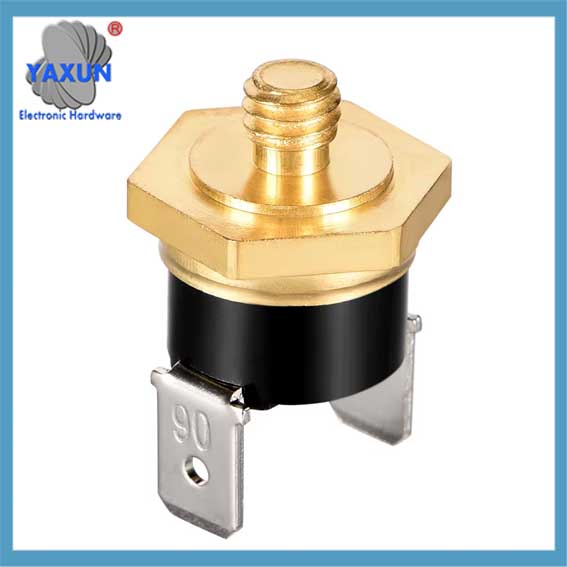

KSD301 M4 M6 30°C – 180°C Temperature Switch Hexagonal Copper Head 250V 10A Bent Leg Thermostat

Спецификация:
Име на продукта : KSD301 M4 Copper Screw Mount Thermostat
Модел: KSD301
Температура на действие: 80°C
Power : 250V 10A
Action Type: N.C (Normal Close)
Thread Dia : M4
Reset Tyoe : Automatic
Material : Copper, Bakelite

Описание :
1.Нормално затворен: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
2.Характеристика: Contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.
3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.
4.функция: It is closed until the temperature reaches 80 Celsius degree, then the switch opens. Широко използван за контрол на температурата или защита на домакински електрически уреди.
5.Application: Mainly used for motor electric heating , bottles, cabinet, coffee shell, електрическа ютия, dryer, air conditioning, heater, electronic cooker, heater, cupboard and motor cleaner etc.

Температура на действие(Tf) & Reset Temperature(Tr)

Dimension of KSD301 Bimetal Thermostat Temperature Switch Thermal control Switch

1 Compact Size
The length of each KSD301 therostat swilch is about.4 cm/ 1.34 inchas, the width is about 3.2cm/1.26 inches, and the height is abaut 1.15 cm 0.45 inch, which is compact and portable, willnof take up much stornge space.
2 Extensive Application
These KSD301 thermal switches aredesigned for home appliance temperaturecontrol and protection, such as the microwave, water heater, iron, refrigerator, toaster, neating device, corfee maker and more.
3 Reliable to Use
Our KSD301 temperature swilch is aafo and roliabld, bimetallic contect sensor, respand sensitively and has no arc phenomenan, easy to deform, and can be applled for along time with confidence
4 Quick Connect Terminals
Dinconngct the black power cord that combined with speed contral, bringing you conngcts to the fireplace blower, can be a nice user experience.
5 High Quality Bimetals
KSD301 Using high-quality bimetals, the breaking temperatureftripping temperature is more accurate.
6 Silver Contacts
Contacts use composite silver contacts. langer life and more rellable SD301 VTA 250℃.
7 Safe to Use
KSD301 Bimetal Thermostat Uniquely designed auxiliary heating sheet Improves product stability and safety.
8 Perfect Design
KSD301 Bimetal Thermostat Small size, easy to install Insulated shell, sealed and waterproof.

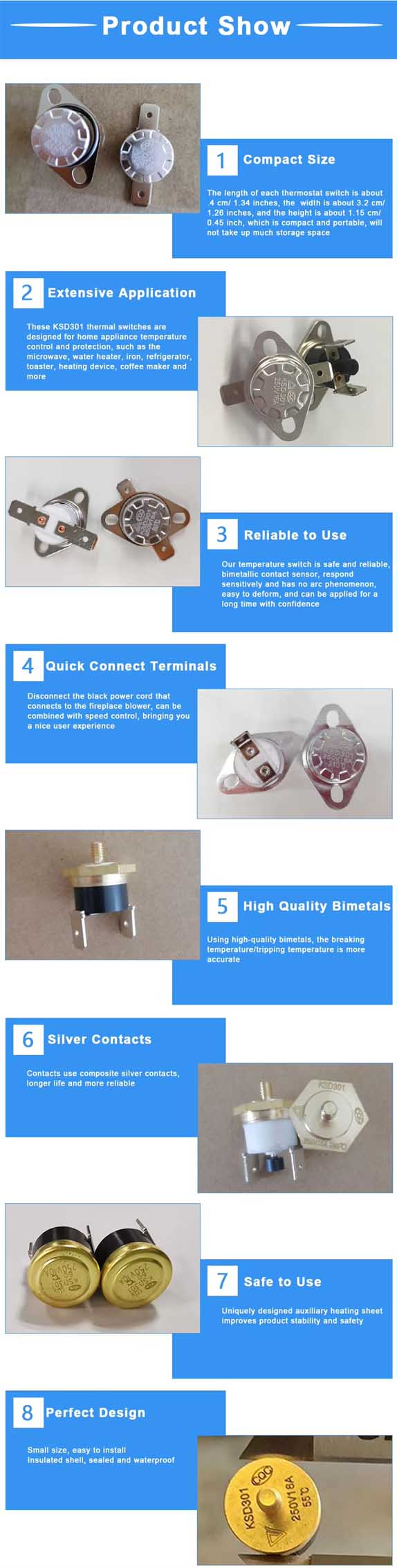

Different KSD301 Bimetal Thermostat appearance and installation methods

What’s the difference between NC and NO?
Нормално затворен: the thermostat is closed(connected) at normal status
Нормално отворен: the thermostat is open(disconnected) at normal status

Please Note :
During installation, the switch should be completely fixed close to the mounting surface of the tested appliance.
Do not collapse or deform the plastic / metal shell during installation.
For metal temperature controller, do not remove the insulating sleeve to avoid electric leakage.
Not suitable for air temperature sensing, only applied to contact sensing.

Standard Package
100бр в торба

Shipping Term:
EXW, DDU, DDP, ° С&F, FOB

Shipping Methods:
International Express, By Air, By Sea
