KSD302 20A Bipolar Bimetal Thermostat Manual Reset Thermal Control Heater 93c

The KSD302 series comprises a wide range of Bipolar bimetallic thermostats, with extremely compact dimensions and fitted with a snap-action trip device. Big current, High power KSD302 Bimetallic Thermostat Temperature Switch 250V 15A To 60A. US … Efficient Mini Thermal Switch , Bipolar Bimetallic Thermal Thermostat. Buy Bipolar bimetal thermostat online with fast delivery and free shipping. Bipolar Bimetal thermostat adopts high quality heating core, which has long service life.

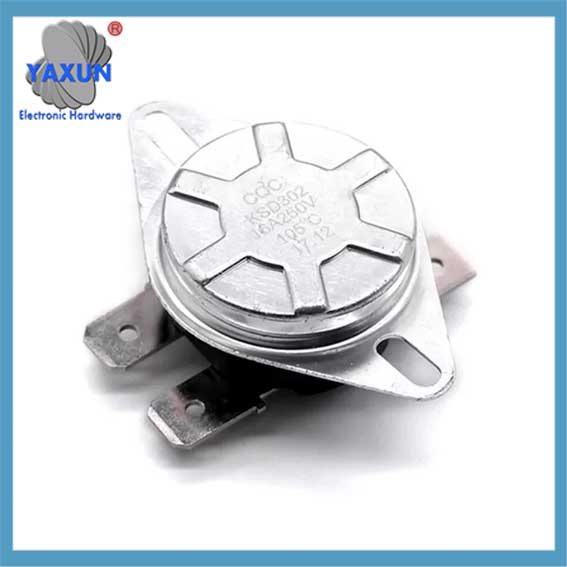

KSD302 Bipolar Thermal Control Switch AC 250V 15A Contact Sensor Thermal Thermostat

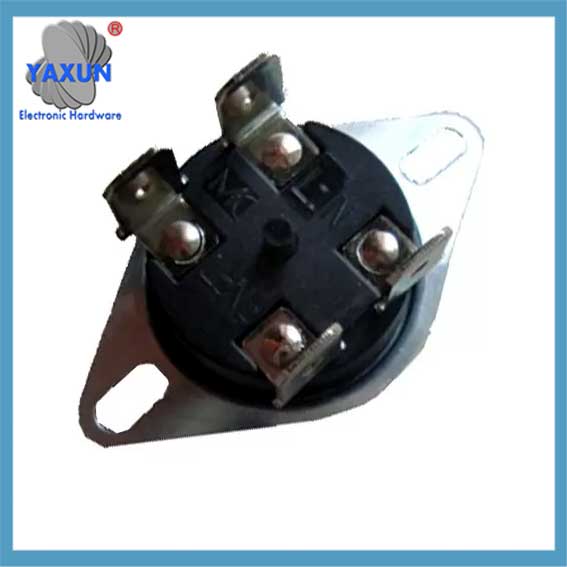

KSD302X 20A 93C Degree Manual Reset Temperature Thermal Control heater

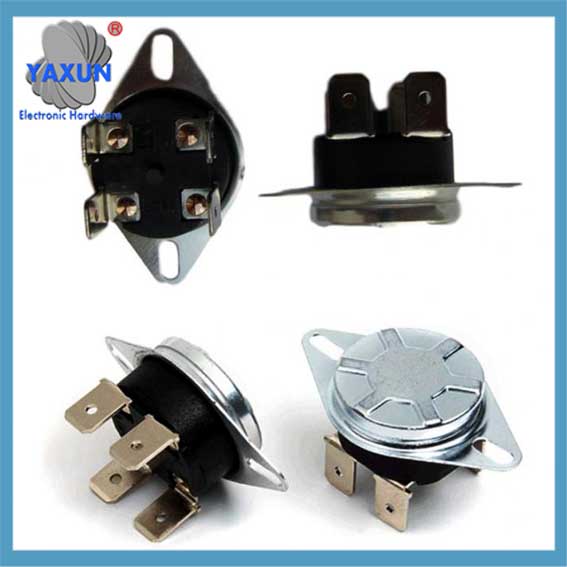

KSD302 Manual Reset Thermal Switch 20A Bipolar Bimetal Thermostat Switch

Име на елемент:	Bipolar Thermal Switch, Bipolar Bimetal Thermostat	Част №:	Ksd301
Номинално напрежение:	250V AC	Текущ рейтинг:	15A 16A 20A
Action Temp:	0~280 Celsius Degree	Reset Type:	Automatic, Manual
Terminal Type:	Horizontal, Upright	Closing Type:	Нормално затворен, Нормално отворен
Terminal Size:	4.8mm 6.3mm	живот:	10000 Cycles
Съвместим с RoHS:	да	Без халоген:	да
MPQ:	100бр	MOQ:	1000бр
Висока светлина:	KSD302 20A Bipolar Manual Reset Thermal Switch

Описание на продукта
KSD302 KSD302X 250V 15A 16A 20A Automatic Manual Reset Bimetal Thermostat 4-leg bipolar thermal switch 84C 93C
Описание на продукта
Номинален ток(Ir): 15A 16A 20A
Номинално напрежение(Ur): 250V ac;
Action temperature Tolerance:±5 ℃
Electric intensity:AC2000V 50/60Hz lasting for 1min;няма разбивка, no flashover
Контактно съпротивление:﹤50mΩ
Изолационно съпротивление:﹥100MΩ
Response speed:≤1℃/min
Operation cycles: ﹥30000 Times
Approvals: CQC

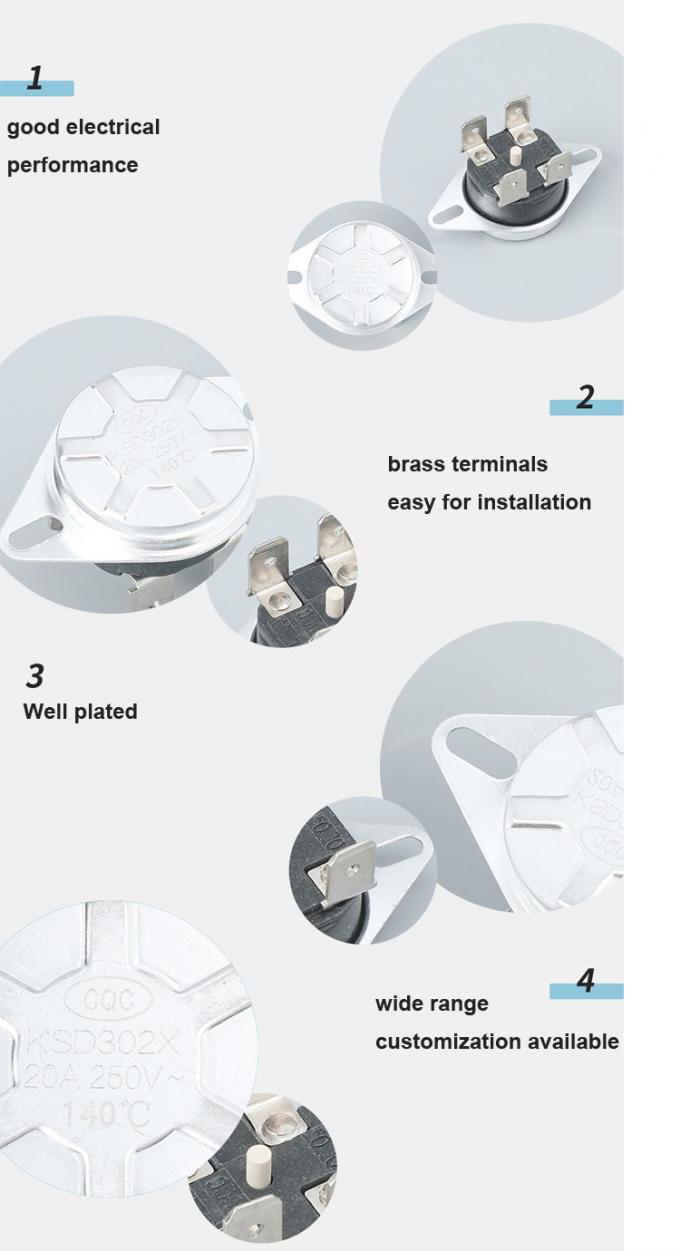

KSD302 16A Bipolar Bimetal Thermostat Advantages

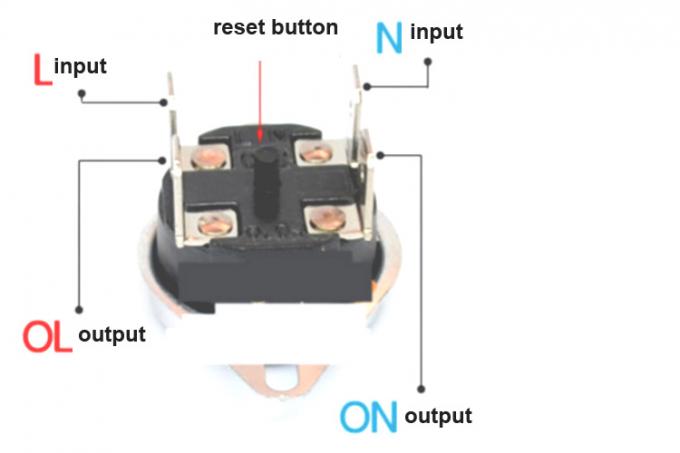

KSD302 20A Bipolar Manual Reset Bipolar Thermal Switch Mounting Suggestion

KSD302 20A Bipolar Manual Reset Bipolar Thermal Switch Application

Температура на действие & reset temperature

Температура на действие	Нулиране на температурата	Температура на действие	Нулиране на температурата
45 ±5 ℃	40±6℃	145 ±5 ℃	115±15℃
50 ±5 ℃	43±6℃	150 ±5 ℃	120±15℃
55 ±5 ℃	45 ±6℃	155 ±5 ℃	125±15℃
60 ±5 ℃	50 ±10℃	160 ±5 ℃	130±15℃
65 ±5 ℃	50 ±10℃	165 ±5 ℃	135±15℃
70 ±5 ℃	50 ±10℃	170 ±5 ℃	140±15℃
75 ±5 ℃	55 ±10℃	175 ±5 ℃	145±15℃
80 ±5 ℃	55 ±10℃	180 ±5 ℃	150±15℃
85 ±5 ℃	55 ±10℃	185 ±5 ℃	160±15℃
90 ±5 ℃	60 ±10℃	190 ±5 ℃	165±15℃
95 ±5 ℃	65 ±10℃	200 ±5 ℃	170±15℃
100 ±5 ℃	75 ±10℃	210 ±5 ℃	175±15℃
105 ±5 ℃	80 ±15℃	215 ±5 ℃	180±15℃
110 ±5 ℃	80 ±15℃	220 ±5 ℃	185±15℃
115 ±5 ℃	85 ±15℃	230 ±5 ℃	195±15℃
120 ±5 ℃	90 ±15℃	240 ±5 ℃	205±15℃
125 ±5 ℃	95 ±15℃	250 ±5 ℃	215±15℃
130 ±5 ℃	100 ±15℃	260 ±5 ℃	225±15℃
135 ±5 ℃	105 ±15℃	270 ±5 ℃	235±15℃
140 ±5 ℃	110 ±15℃	280 ±5 ℃	245±15℃
Custom specification can be manufactured as request.

Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, електрическа ютия, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
