Морски високоусилвателен прекъсвач за лодка / Тролинг с ръчно нулиране

Персонализиран 16-3F, 187-Серия 25A-300A, 2000A/32VDC , 2000A/14VDC, 1500A/48VDC тип морски прекъсвач за лодка / Тролинг с ръчно нулиране. 16-3Е, 187-Серия/ЧЕРВЕН ВЪЛК Прекъсвач за мотор за тролинг на лодка Морски ATV Ремарке Превозни средства Стерео аудио Електронна батерия Слънчева система Вграден предпазител с превключвател за ръчно нулиране Водоустойчив DC 12V-48V.

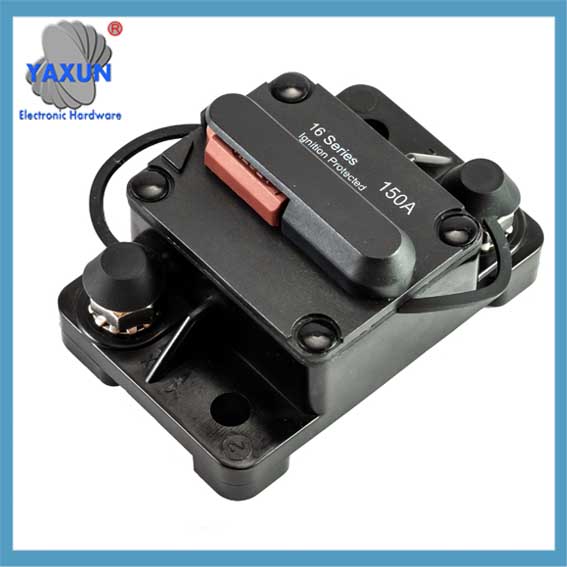

16-3Е, 187-Серия, Red Wolf 60Amp ~ Hi-Amp морски прекъсвач

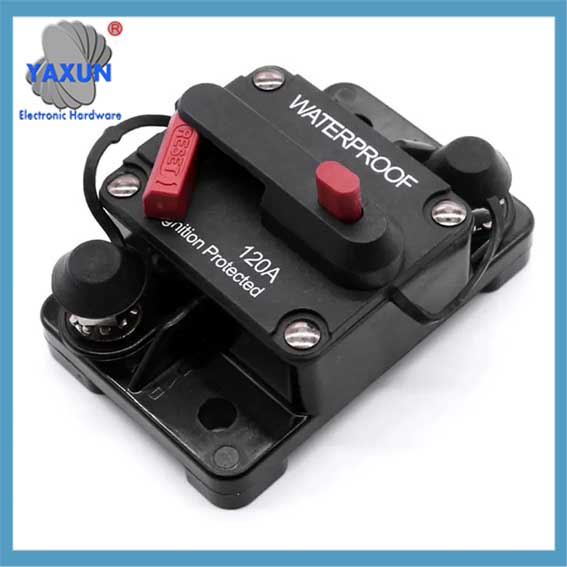

48V 80A Автоматични прекъсвачи с бутон за нулиране за автомобили, Лодка, Тролене

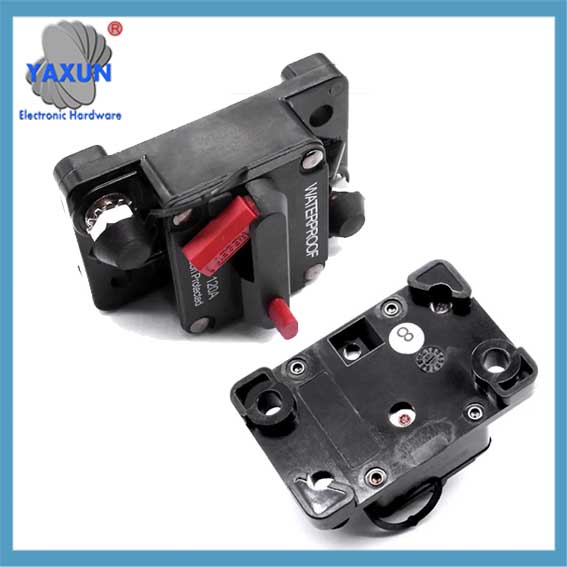

Mechanical Products 875S10602 Marine Ratd Seurface Mount High-Amp Circuit Breaker

Protect your system: using as 16-3F, 187-Series Marine circuit breaker and battery Disconnect, allows to charge or maintain the battery without having to disconnect all the wires; Protect excessive current between battery or electrical from damage;
Solid Marine breaker: new design with waterproof resistant housing and solid build; Manual Reset Fuse breaker Holders have Pass professional electrical performance test and aging test, the switch button is on/off smoothly, reliable quality;
Ръчно нулиране: Marine circuit breaker Unique on/ off reset push button, mounted on panel or firewall, can used as a kill switch; No need to buy more replacing fuses;
Приложение: 16-3Е, 187-Series Marine circuit breaker used in auxiliary and accessory circuits for fit to Boat Marine RV Yacht Battery Trailer Bus Truck ATV Winches applications; Also used in battery charges and DC sound amplifier system;
Mechanical Marine circuit breaker Use the waterproof cover to better prevent rust from metal parts. Max current 300A; Voltage DC 24V.

Име на елемент:	Hi-Amp Marine Circuit Breaker Circuit Breaker	Част №:	16-3Е, 187-Серия ,E99
Измерение:	74×48.2×44.2мм	No. Of Pole:	Single
Тип монтаж:	Повърхностен монтаж	Прекъсваща оценка:	25A-300A, 2000A/32VDC, 2000A/14VDC, 1500A/48VDC
House Material:	Phenolic 94V-0	Protection Grade:	IP67
Номинално напрежение:	48V DC	Съвместим с RoHS:	да
Без халоген:	да	Коефициент на ток 0.1A~20Ag:	20A 30A 40A 50A 60A 70A 80A 100A 125A 150A 200A 250A 300A
MPQ:	100pcs Per Bag	Оперативна температура:	-32˚C To +82˚C
Torque Rating:	50 In-Ib (5.6Nm) Макс
Висока светлина:	80A Automotive/ Marine Circuit Breaker Circuit Breakers / Boat Battery Circuit Breaker

Описание на продукта

Име на продукта	16-3Е, 187-Серия ,E99 Circuit Breaker Hi-Amp with Switch Manual Reset
Видове	Single Pole Thermal Type Breakers
Номинален волт	48Vdc
Рейтинг на усилвател	20A 30A 40A 50A 60A 70A 80A 100A 125A 150A 200A 250A 300A
Прекъсваща оценка	5KA@32VDC, 3KA@48VDC
Материал на тялото	Black UL-rated 94V0 thermoset plastic
Protection Rating	IP67
Прекратяване	1/4-28 или 3 8 16 threaded studs
Работна температура	–25°F (–32°C) to 180°F (82°C)
Storage Temperature	–30°F (–34°C) to 300°F (149°C)
Compliance	SAE J1625; ABYC E-11; CE; SAE J1171 (защитена от запалване)

Features of 16-3F, 187-Серия ,E99 circuit breakers 48V 80A Circuit Breakers with reset button for Automotive
Compact and lightweight design,Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected)
1/4″ Stainless Steel Studs, Повърхностен монтаж, protective stud insulator included
Hi-Amp manual reset button Circuit Breaker
Housing is thermalplastic UL rated 94V0
Manual Reset Circuit Breaker, can also be used as an on-off button switch for the battery
функция: High current circuit breaker, using bimetal structures, protects your trolling motor from possible damage due to an overload or short circuit, save time & money.
Compatible with all 12, 24 Volt systems, водоустойчив, защитена от запалване.
Може да се нулира: Yellow or red manual reset button, No need to replace the inline fuse.
Installation: Surface mount on panel or firewall, easy to use and durable, protective stud insulators included, Stud Size: 1/4”-28.
Приложение: Widely used in solar system, battery charges, inverter, boat, marine,RV and DC sound amplifier system, special vehicles, off-road vehicles winch, yachts and ships electrical control.
16-3Е, 187-Серия ,E99 Circuit Breaker Hi-Amp breakers with Manual Reset Switch

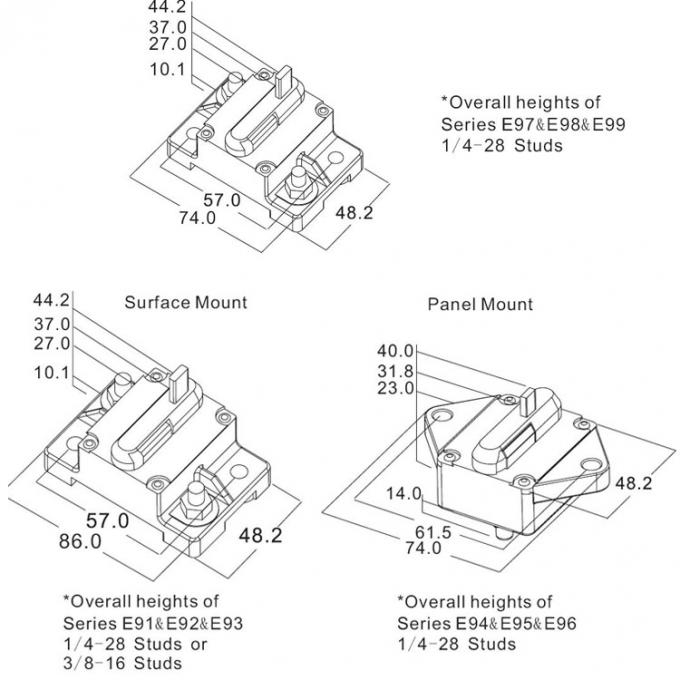

Drawing of 16-3F, 187-Series E99 Hi-Amp Circuit Breaker

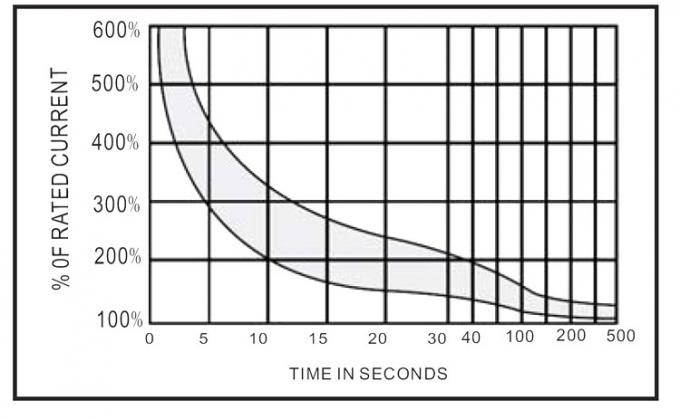

16-3Е, 187-Series Circuit Breaker TEMPERATURE DERATING CURVES

Marine Hi-Amp Circuit Breaker yellow or red manual reset button, on-off button switch for the battery

Marine Hi-Amp Circuit Breaker Splash and dust proof, Waterproof, lgnition Protected OEM & custom logo available

Стандартен пакет
1бр в торба, 100бр в кашон

Срок на доставка:
EXW, DDU, DDP, ° С&Е, FOB

Методи за доставка:
Международен експрес, По въздух, По море

Warmly Reminder:
1. Please use it under right work temperature, to avoid it is too heat and stop work.
2. Please correctly push the button to avoid damage the Circuit Breaker.

FYI
A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected. Unlike a fuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation.
Circuit breakers are made in varying sizes, from small devices that protect low-current circuits or individual household appliance, up to large switchgear designed to protect high voltage circuits feeding an entire city. The generic function of a circuit breaker, or fuse, as an automatic means of removing power from a faulty system is often abbreviated as OCPD (Over Current Protection Device).
