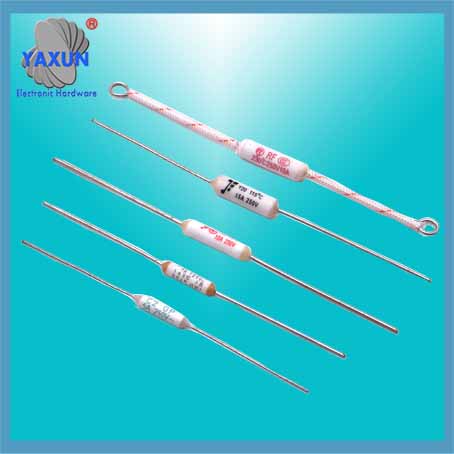

Мотор на Aupo Axial Thermal Cutoff

Working principle of alloy type axial thermal fuse

Alloy type thermal fuse: When the temperature around the alloy type thermal fuse rises to its operating temperature, its fusible alloy melts and shrinks into a ball attached to the ends of the two pins under the action of surface tension and the help of special resin, so that the circuit is permanently cut off.

rf 250v 10a, 250v / 20А 216 Целзий Верига Температура на изключване Термичен предпазител Керамика AUPO, RY, RH, БОЯ, SEFUSE, НАБОР, Емерсън, NEC

A Ceramics thermal cutoff is an electrical safety device parts (either a thermal fuse or thermal Cutoff) that interrupts electric current when heated to a specific temperature. These devices may be for one-time use (Ceramics thermal fuse).

Номинално напрежение: 250V;
Номинален ток: 1А, 2А, 3А, 5А, 10А, 15А,20А.
Cutoff Temperature: По поръчка
This is a single-use device that cannot be reset and must be replaced when it fails or is triggered.
Function is to cut off the circuit of appliances when temperature exceed specified TF value because of unexpected fault.
Widely used in home appliance such as rice cooker, pressure cooker, hair straightener, нагревател, готвач на ориз，и т.н. as thermal overload protection. You can freely use the matching furniture and wire harness processing.

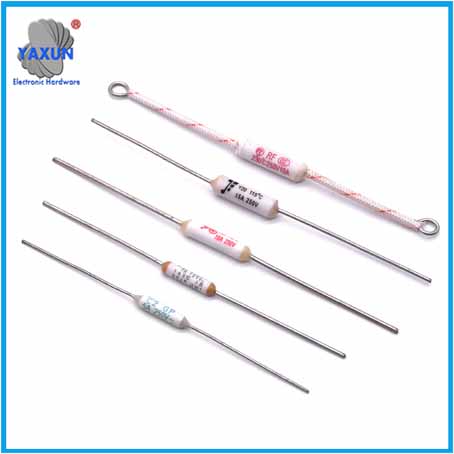

Axial thermal Cutoff

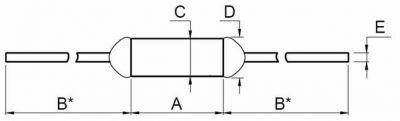

Ceramic thermal Cutoff size

Размери(мм) А Б ° С д д 6.5±0,5 37±5 2.1±0,5 ≤2.6 0.5±0.05

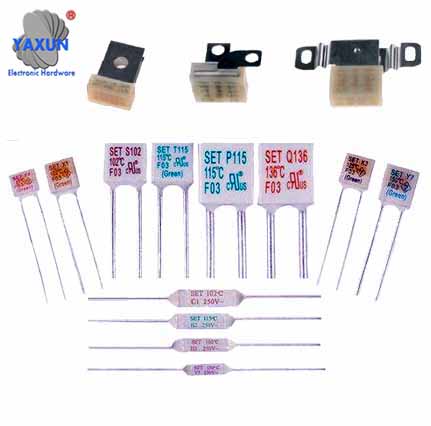

Уред за готвене на ориз Керамичен термопредпазител

AUPO thermal fuse Wiring diagram

Flat iron Axial thermal fuse
