Резервен предпазител DYE Термичен предпазител Аксиален тип TF прекъсване

DYE Dongyang Thermal Fuse Link е температурен защитен елемент, който използва термисторни частици (органични химикали) като термочувствителни материали. The safety certifications obtained are: CCC UL CSA PSE VDE TUV EK ROHS. Rated voltage 250V/110V; rated current 10A, 15А; rated temperature 66℃-240℃. DYE Thermal Cutoff Link is a component that provides very reliable protection under overtemperature conditions. It has small size, голям свръхток, no reset, стабилна производителност, easy installation, and a certain range of humidity settings and load capacity to choose from to meet customer application needs.
Продуктите се използват широко в: various motors, копирни машини, факс машини, HID баласти, баласти за флуоресцентно осветление, трансформатори, зарядни устройства, батерийни пакети, отоплителни уреди, електрически ютии, hot hair dryers, електрически печки, electric rice cookers, електрически чайници, coffee pots, ventilators, електрически вентилатори, електрически шевни машини, бойлери, преобразуватели на мощност, power plugs, хладилници, климатици, car air conditioners, instruments, оборудване, и т.н. for overtemperature protection.

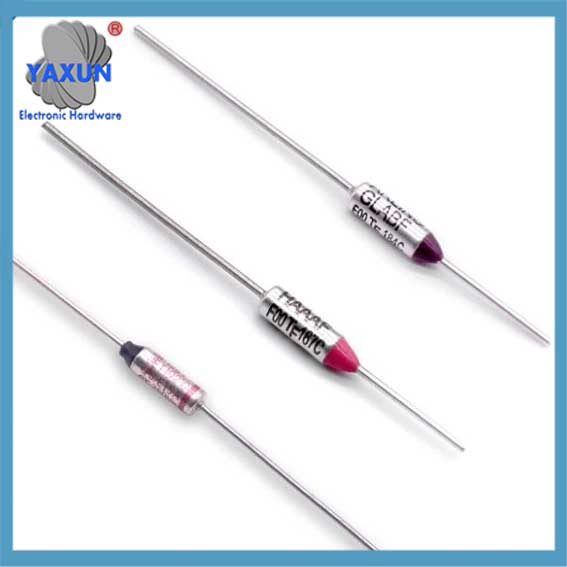

16A Thermal Cut Out Fuse 240℃ Axial Leaded Fuse Link For Transformer

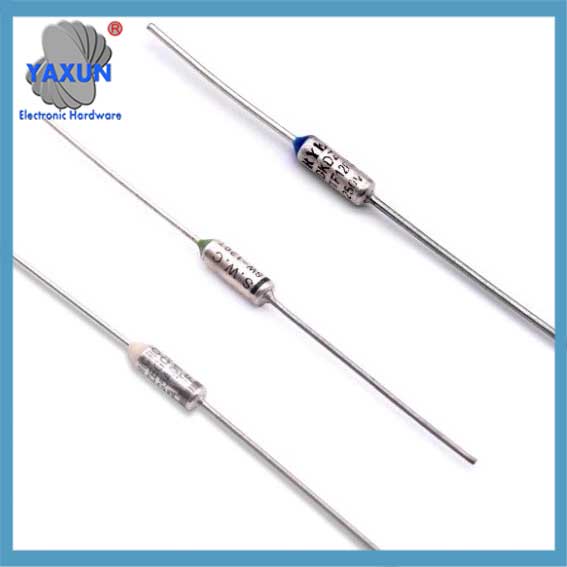

Термичен предпазител DYE 77c 16a 250v

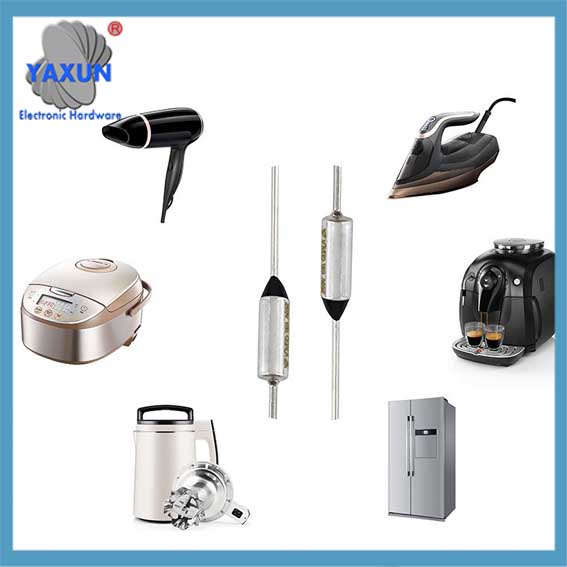

Dye Series Thermal Fuses 91*C. and 10A at 120Vac

Описание на продукта

DYE 250V 15A 16A Thermal Cutoff Fuse Thermal Cutout Link DF104S DF184S DF192S

DYE Dongyang temperature fuse Dimension

Описание на продукта

The Thermal DF Series Thermal Cutoffs are single action devices that open when a preset temperature is reached. They do not reset. The active component of a thermal cutoff is an electrically insulated thermal pellet. This pellet holds a spring loaded contact against a fixed contact under normal operating temperatures. When the preset temperature of the cutoff is reached, the pellet liquifies, the springs relax, and the spring loaded contact is moved away from the fixed contact, opening the circuit. The DF Series is the right choice for applications requiring an inexpensive limit protector with 15A capability.

Характеристики на продукта

Номинален ток: UL 250V 10A/16A, VDE 15A, CCC 15A

Advantage: One shot operation, stable and precise, compact, durable and reliable by hermetic seal structure, excellently sensitive to ambient temperature.

функция: Термичен предпазител, Widely Used in Electric Current Appliance as Heat Protection. When temperatures exceed the specified TF level, Electrical Contacts will Open.

Приложения: Suitable for electric home appliances, electric industrial equipment, office automation equipment, plain paper copiers, трансформатори, двигатели, и т.н.

Спецификация

(SEFUSE SF-E thermal fuse, термично прекъсване, термична връзка)

Opening Temperature Tolerance: TF+0°C/-5°C

Temperature Rating (Tf):Rated opening temperature

Holding temperature (Th):Maximum temperature measured at the case end ofthe thermal cutoff at which the thermal cutoff can be maintained for a period for 168 hours without opening.

Maximum temperature (Tm):The maximum temperature at which a thermal cutoff can be maintained for10 minutes as an open circuit and can then be maintained at twice rated voltage for a period of 2 minutes during which its mechanical and electrical properties will not be impaired
