SPST Limit 36T 3/4″ Термостат Snap Disc Термостат с ръчно нулиране

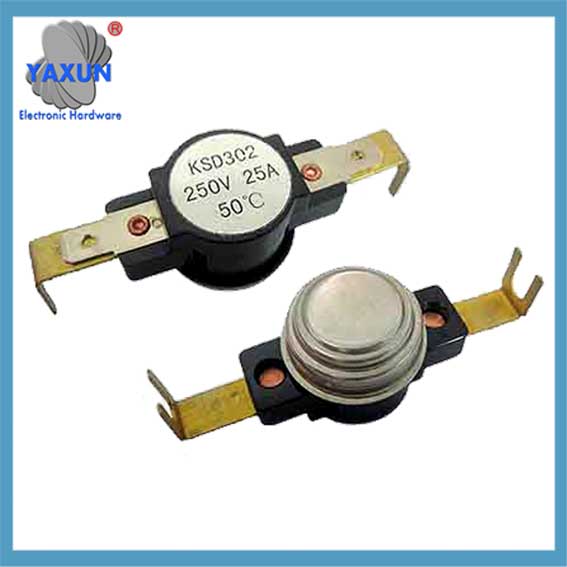

Китай по поръчка Силен ток и висока мощност (AC 15A , 20А, 25А ,30А,35А ,40А,45А ,50А, 60А) SPST Limit 36T 3/4″ Snap Disc Thermodisc Switch Ръчно нулиране N.C. / Н.О. Пасва Заменя Breckwell Big E, P20, P22, P23, P24, P2000 P2700, Ashley APC4000 и USSC 5040 Петки на пелети, Заменя 80683 Предпазен превключвател Thermodis.

Заменя термодисков превключвател с висока граница 80683 Термодисков предпазен превключвател

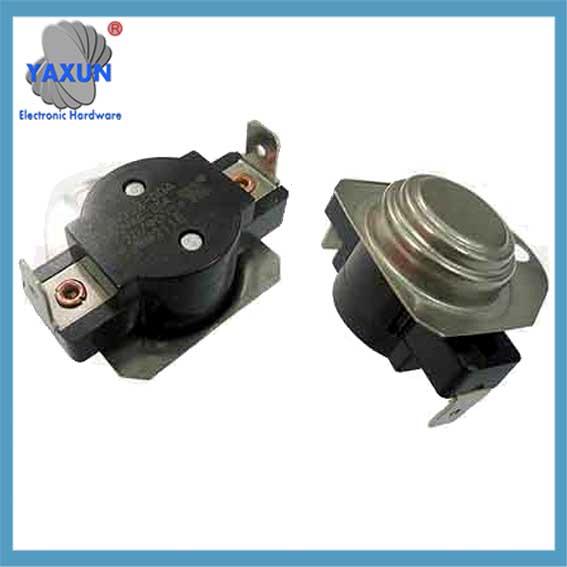

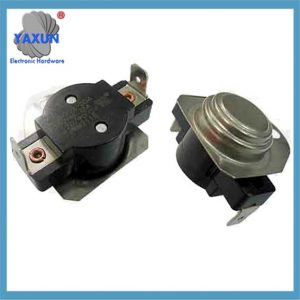

Limit Switch Thermostat Replacement Part Fit for Intertherm, Nordyne Miller, Gibson, Tappan, Frigidaire Furnace Replace 313236 626338R

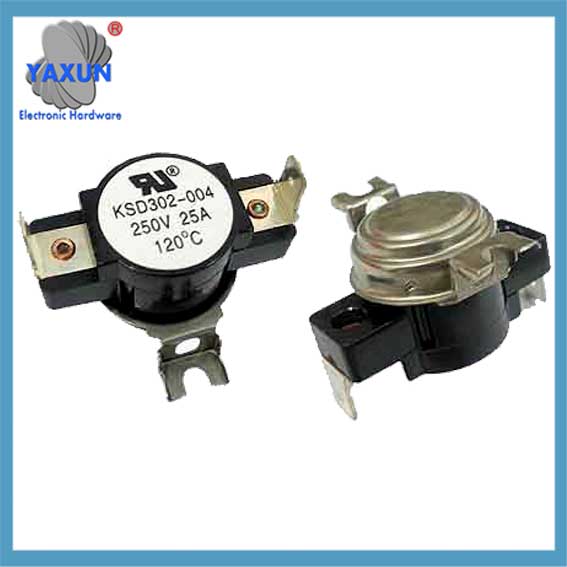

Превключвател на термостат, Термопревключвател на вентилатора на камината, Контрол на температурата на Snap Disc (100°F ВКЛ. и 85°F Изкл), Превключвател на термостата Snap Disc

About this SPST Limit Disc Thermostat item
Replacement Part Number: High limit thermodisc safety snap switch replacement part number # 80683,CC-E-090-21.
China Custom Compatible Models: C-E-090-21 High Temp Limit Switch for P1000 Big EP2000, P20, P22, P23, P24, P26, P2700, P28, P32, P4000, P6000, SP6000 Pre 2013, P7000. AP2000, AP2000i, APC4000.5040, 5040 Pellet Heater.
Rated Temperature: Replacement 80683 High Limit Thermodisc Switch for 300-50° F. China Custom this switch will lock in the auger feed when temps exceed 300°.
функция:80683 High limit thermodisc safety snap switch.The high limit switch will trip the auger motor if temperatures exceed 300°. It is designed as a safety limit sensor switch.
Premium Quality: China C-E-090-21 High limit thermodisc safety snap switch use contact sensors switch , sensitive and reliable, extremely durable, stable operating temperature, long service life, high temperature quick switch.

SPST Limit Switch AC 36T Snap Disc Thermostat is the small-size bimetal thermostat series with a metal cap, which belongs to thermal relays family. The main principle is the function of bimetal discs snap action under the change of temperature sensed. The snap action of disc can push the action of the contacts through the inside structure, causing the circuit on and off finally. The main characteristics: fixed working temperature, reliable snap action, less flashover, longer working life and less radio interference.

Номинален ток(Ir): 15А , 20А, 25А ,30А,35А ,40А,45А ,50А, 60А

Номинално напрежение(Ur):110V 400V ac;

Action temperature Tolerance:±5 ℃

Electric intensity:AC2000V 50/60Hz lasting for 1min;няма разбивка, no flashover

Контактно съпротивление:﹤50mΩ

Изолационно съпротивление:﹥100MΩ

Response speed:≤1℃/min

Operation cycles: ﹥30000 Times

Approvals: УЛ, TUV, CQC

Температура на действие & reset temperature

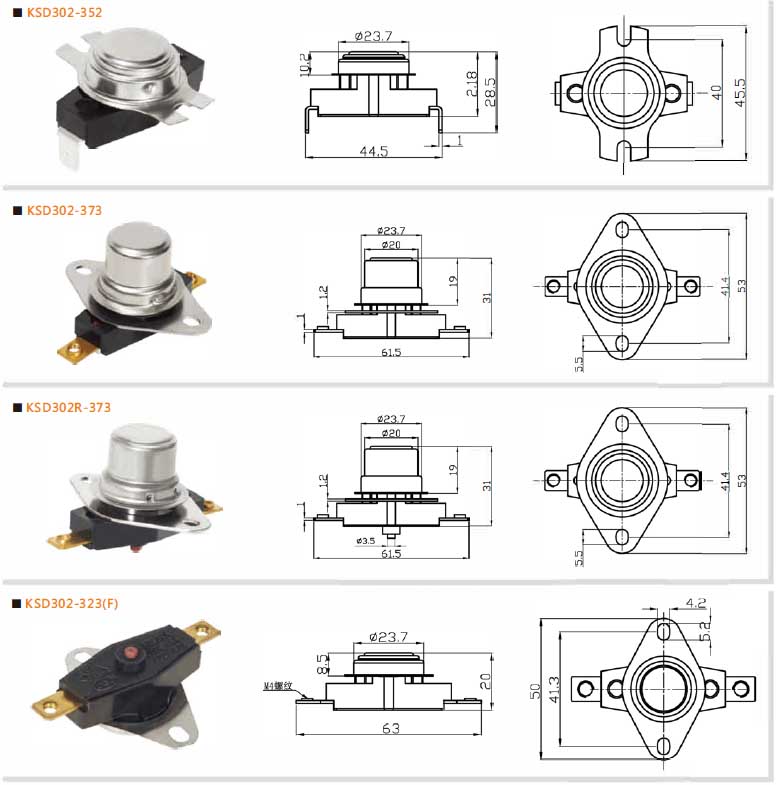

Emerson Thermostats Emerson 3F05-1 Snap Disc Fan Control, Metallic

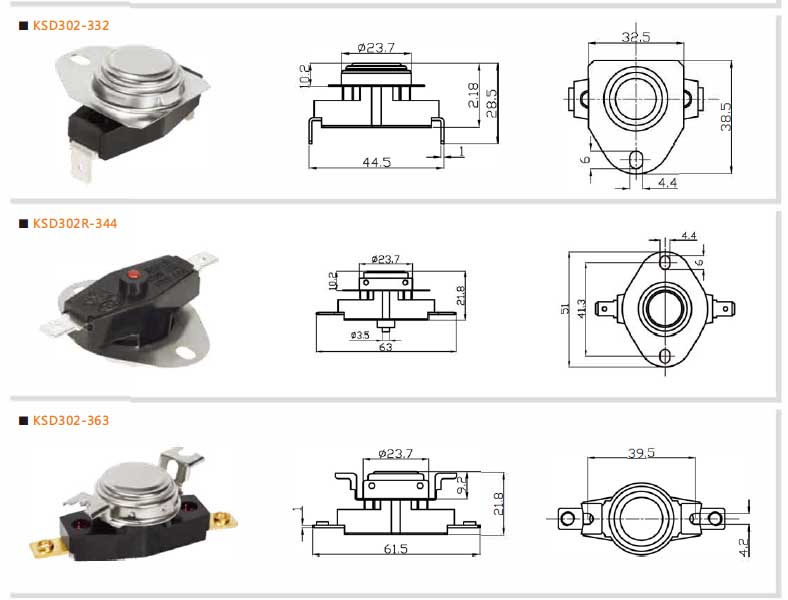

US Stove 80314 F120 Therm-O-Disc Snap Thermostat Switch

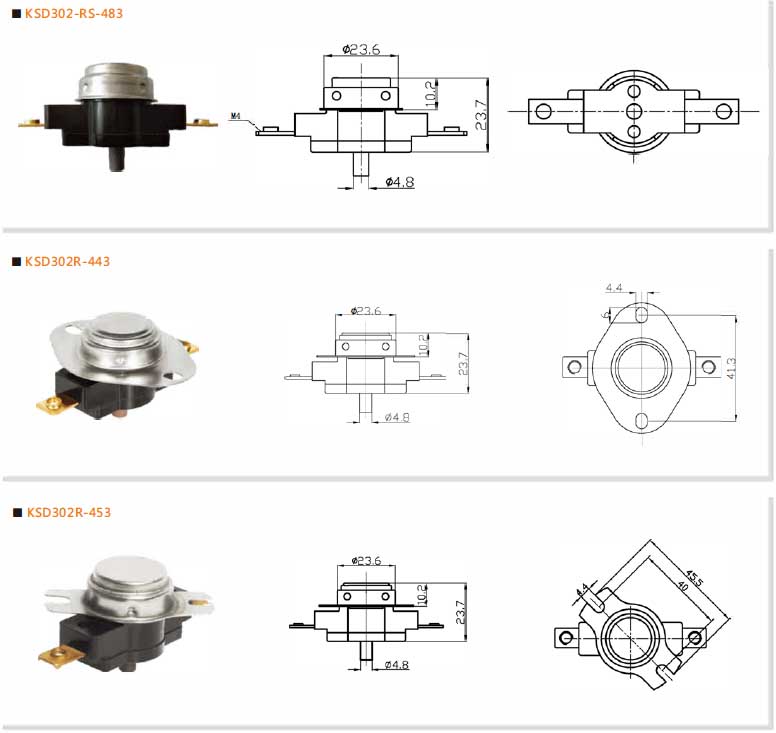

Emerson 3F01-110 Snap Disc Fan Control
