01530007Z Littelfuse MINI® 153-PC Series 32V PCB Fuse Holder for Commercial Vehicle

The Littelfuse MINI 153-PC Series (01530007Z) 32V PCB Fuse Holder lets you easily mount a MINI blade-style fuse on a printed circuit board. It’s designed with a circuit board locking anchor to ensure secure attachment to the PCB, and it has standoffs, which accommodate circuit board washing. The heat-resistant thermoplastic body carries a UL 94 V-0 flammability rating, making the fuse holder ideal for automotive PCB applications. such as protecting circuits for vehicle control systems, navigation and entertainment systems, and automotive sensors. This MINI® 153-PC Series PCB fuse holder (01530007Z) features a horizontal PCB mounting style.

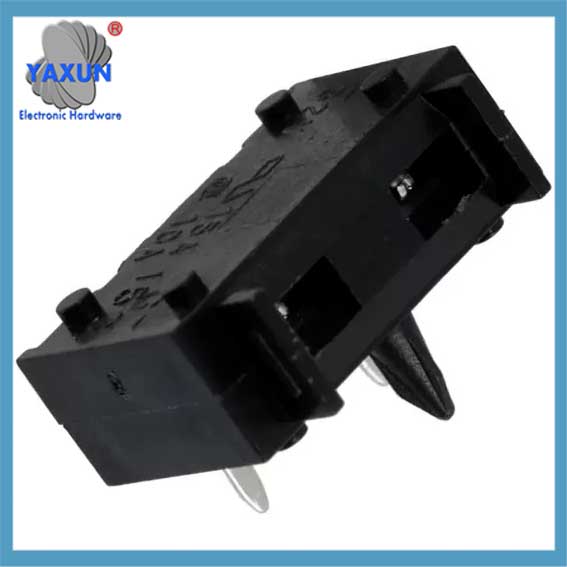

Littelfuse-Commercial Vehicle Products 01530007Z Fuse Holder 15A 32V 1 Circuit Blade Fuse

MINI 153-PC Series 32V PCB Fuse Holder

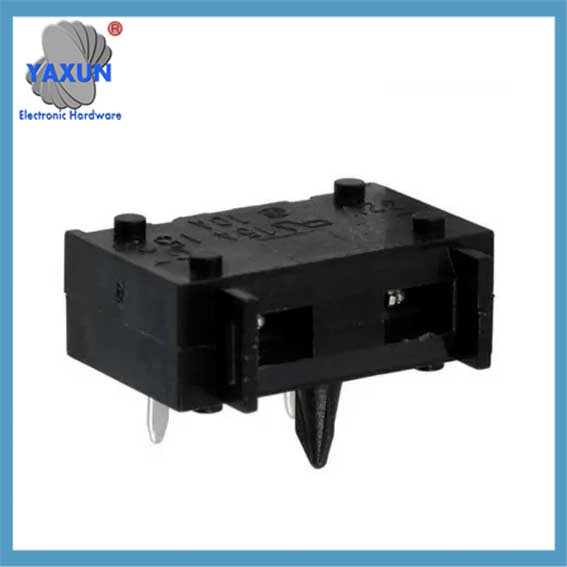

High quality SL-1537 Fuse Holder for MINI-MIN-297-ATM-BFMN PCB car Automotive

Item Name:	01530007 Mini Blade Fuse Holder	Mount Type:	PCB
Voltage Rating:	32V Dc	Current Rating:	15A
Applied To:	APM, ATM Mini Blade Fuses	RoHS Compliant:	Yes
Body Material:	Thermoplastic UL 94-V0,	Terminal Material:	Messing, Tin Plated
Terminal Thickness:	0.3mm
Hohes Licht:	01530007 15A 7.6mm APM, ATM Mini Blade Fuse Block

Produktbeschreibung
01530007Z PCB Mount Fuse Holder for Mini Blade Fuse with Horizontal Terminal 01530007 UL 32V 15A 297 Fuse Block
Produktbeschreibung
This type of MINI Fuse Holders brings the reliability and availability of the plug-in 32V MINI Fuse to the circuit board. Vertical and horizontal mounting of units is offered. They have“standoffs” to accommodate board washing and incorporates a unique “board lock” anchor to maintain a firm mechanical bond to the PCB.

Item	01530007 Fuse Holder
Mounting Type	PCB
Materials	Thermoplastic UL 94-V0, brass tin plated
Terminal Angle	Horizontal
Zertifizierung	UL CSA
Color	black
Length	17.3mm
Width	12.9mm
Thickness	7.6mm

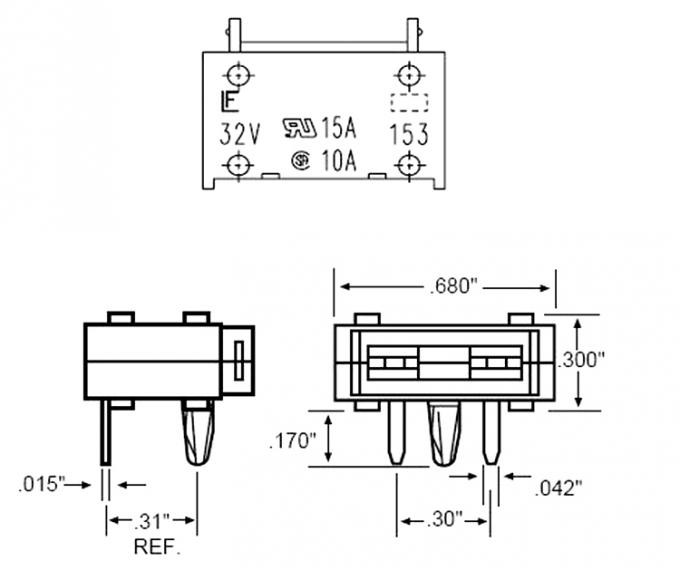

Drawing of Littelfuse 01530007Z Blade Fuse Holder

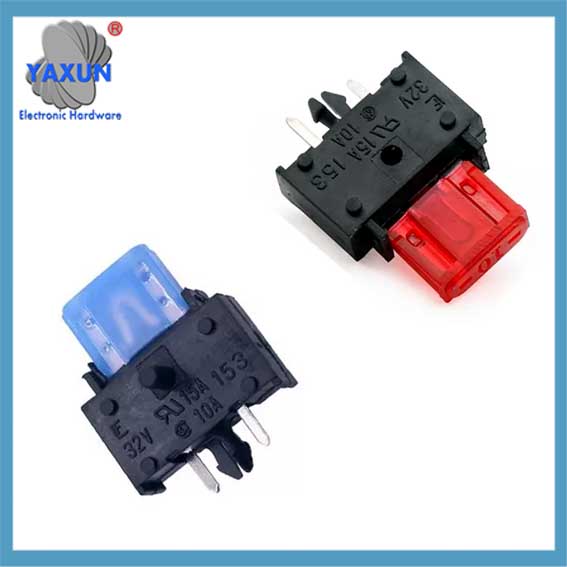

Select Littelfuse MINI® 153-PC Series 32V PCB Fuse Holder Appearance

Blade Fuses Specification

Size	P/N	Dimension LWH	Amperes
Micro2	APT, ATR	9.1 × 3.8 × 15.3 mm	5, 7.5, 10, 15, 20, 25, 30
Micro3	ATL	14.4 × 4.2 × 18.1 mm	5, 7.5, 10, 15
low profile	APS, ATT	10.9 × 3.81 × 8.73 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Mini	APM, ATM	10.9 × 3.6 × 16.3 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A
Regular	APR, ATC, ATO, ATS	19.1 × 5.1 × 18.5 mm	1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40
Maxi	APX	29.2 × 8.5 × 34.3 mm	20, 25, 30, 35, 40, 50, 60, 70, 80, 100,

Colors & Ratings

Color	Current rating
Black	1 A
Grey	2 A
Violet	3 A
Pink	4 A
Tan	5 A
Brown	7.5 A
Red	10 A
Blue	15 A
Yellow	20 A
Transparent	25 A
Green	30 A
Blue-green	35 A
Orange	40 A
Red	50 A
Blue	60 A
Amber/tan	70 A
Transparent	80 A
Violet	100 A

Anwendungen
Car, Boat, Truck, SUV, Motorcycle, usw.

Standard Package:
depends on the cable spec

Shipping Term:
EXW, DDU, DDP, C&F, FOB

Shipping Methods:
International Express, By Air, By Sea
