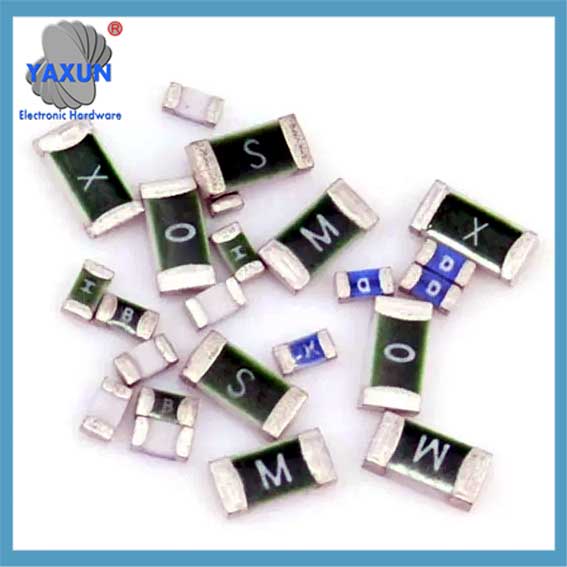

0603 Surface Mount Fuse Fast Blow 32V 63V SMT Fuse UL Listed

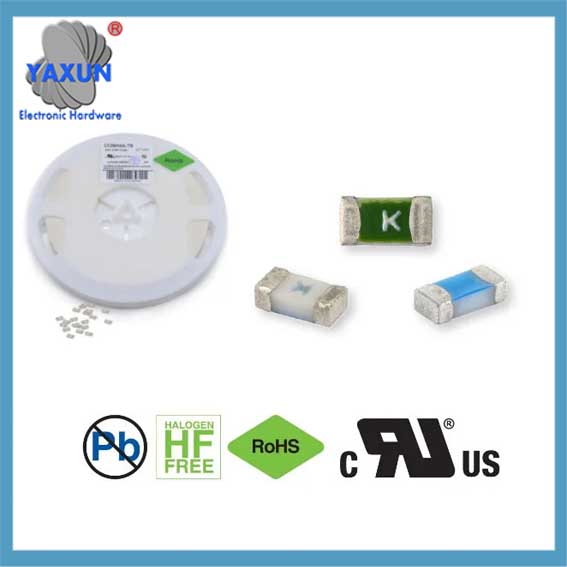

0603 (1608 metric) Oberflächenmontierte Sicherungen 0467 467 SMD Very Fast Acting 32V ; Usage · Low Voltage ; Very fast acting at 200% Und 300% overloads Excellent inrush current withstanding capability at high overloads Thin body for space limiting applications.
Item Name: | 0603 SMD Fuse | Part No.: | R06.000 |
Blow Type: | Fast Acting | Mount Type: | Surface Mount |
Standard: | UL248-1 | Insulation Material: | Keramik |
Metal Material: | Alloy | Ur: | 32V 63V |
Und: | 0.25A 0.375A 0.5A 0.75A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A | Applied To: | 1.6 X 0.81 X 0.47 Mm |
RoHS Compliant: | Yes | Halogen Free: | Yes |
MOQ: | 5000pcs | ||
Hohes Licht: | SMT Fast Blow Fuse, 1.6×0.81 Fast Blow Fuse, 8 Amp Ceramic Fuse |
Produktbeschreibung
0603 Footprint Surface Mount Fuse Fast Blow 32V 63V 1.6×0.81 SMT Fuse UL Listed 0.25A~8A
Beschreibung
06.000 Series fast acting brick fuses help provide over-current protection for systems using DC power sources up to 63V.
Help provide higher hold current in smaller footprint, improve product reliability and quality, enhance high temperature performance in a wide range of circuit designs.
Item Name | 0603 surface mount fuse |
Standard | UL |
Blowing Speed | fast blow |
Insulation Material | Keramik |
Fusing Material | alloy |
Voltage Rating | 32V 63V dc |
Current Rating | 0.25A 0.375A 0.5A 0.75A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A |
Mounting Type | Surface Mount |
Dimension | 1.6×0.81×0.47 mm |

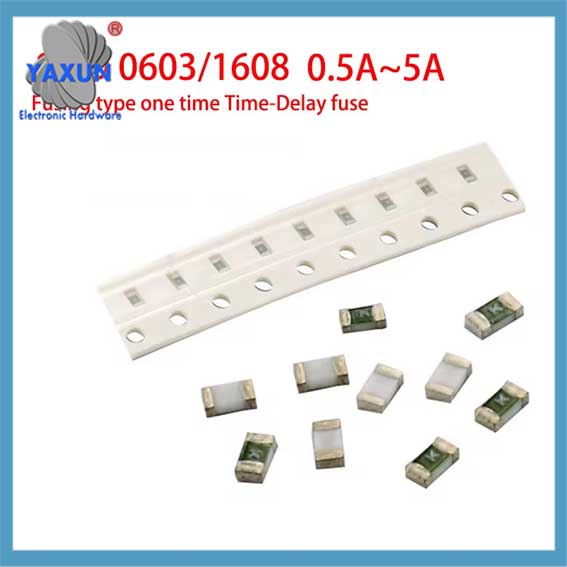

Package | taped&reel, 5000 pcs per reel |
Product Features
Small volume, miniature size
Instant interruption of excessive current
Compatible with reflow and wave solder
Ceramic and glass construction
One time positive disconnect, not resettable
Lead and Halogen free
Tape and Reel for automatic SMT placement
Anwendungen
USB charger
DVD players
Laptops
Portable electronics
Digital cameras
Game syste ms
Cell phones
LCDmonitors
Printers
Scanners
Operating Temperature: -55℃ to +125℃ (Consider de-rating)
Stored condition: at temperature of +10℃~60℃, relative humidity ≤ 75%.
A:Soldering pot temperature: 260℃ Max; Solder dwell time: <5s (Wave Soldering)
B:Solder Iron Temperature: 350±5℃, heating time: 1~2s. (Hand Soldering)
Specification | ||||||||
Part No. |
Rated
Voltage |
Rated
Aktuell (A) |
Breaking
Capacity (A) 1 |
Typical Cold.
Resistance (mOhms) 2 |
Typical Voltage
Drop (mV) |
Typical Pre-
Arcing I2t (A2Sec)3 |
Alpha
Mark |
|
DC | ||||||||
06.000.0.25 |
63V |
32V |
0.250 | 50A | 3250 | 893 | 0.00042 | D |
06.000.0.375 | 0.375 | 50A | 1310 | 587 | 0.00093 | E | ||
06.000.0.5 | 0.500 | 50A | 1070 | 582 | 0.0020 | F | ||
06.000.0.75 | 0.750 | 50A | 470 | 427 | 0.0092 | G | ||
06.000.1 | 1 | 50A | 300 | 295 | 0.018 | B | ||
06.000.1.5 | 1.5 | 50A | 150 | 220 | 0.065 | H | ||
06.000.2 |
– |
2 | 50A | 72 | 160 | 0.115 | K | |
06.000.2.5 | 2.5 | 50A | 52 | 145 | 0.14 | L | ||
06.000.3 | 3 | 50A | 35 | 130 | 0.21 | O | ||
06.000.3.5 | 3.5 | 50A | 23.8 | 130 | 0.55 | R | ||
06.000.4 | 4 | 50A | 21 | 120 | 0.52 | S | ||
06.000.5 | 5 | 50A | 14 | 110 | 1.70 | T | ||
06.000.6 | 6 | 50A | 8 | 110 | 2.30 | V | ||
06.000.7 | 7 | 50A | 5.6 | 80 | 2.8 | X | ||
06.000.8 | 8 | 50A | 3.5 | 75 | 4.96 | Z |
DC Interrupting Rating (Measured at rate d voltage, time constant of less than 50 microseconds, battery source)
DC Cold Resistance are measured at<10% of rated current in ambient temperature of 25degrees
Typical Pre-arching l2t are measured at 10ln Current
For fuse below 1A, the color of glass coating is Blue; for 1A and above it’ s Green
