10A 48V Car Blade Fuses ATO BP PRO Fast-Acting Standard PA66
Find ATO BP PRO Fast-Acting Series Blade Fuses part specifications and more from the YAXUN Automotive Aftermarket Products selection of Fuses. ATO, Autofuse blade fuse was patented and introduced. It became the international fuse standards by 1981. It is currently found on most trucks, cars, buses and off the road vehicles world-wide.
Find ATO BP PRO Fast-Acting Series Blade Fuses part specifications and more from the YAXUN Automotive Aftermarket Products selection of Fuses. ATO, Autofuse blade fuse was patented and introduced. It became the international fuse standards by 1981. It is currently found on most trucks, cars, buses and off the road vehicles world-wide.

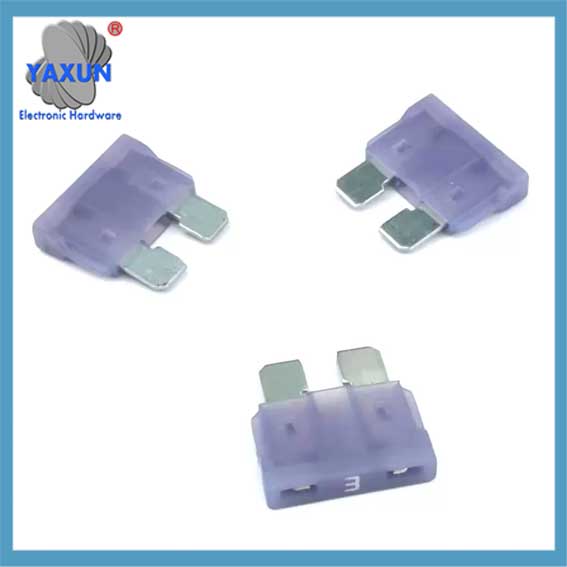

 48V Automotive Blade Fuses ATO Standard Car Fuses Nylon PA66 1A 2A 3A 4A 5A 7.5A 10A |

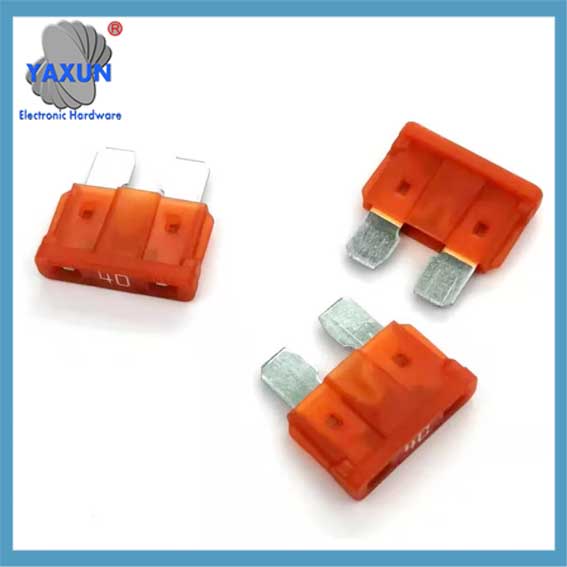

 ATO5PRO ATO BP PRO Fast-Acting Automotive Blade Fuse |

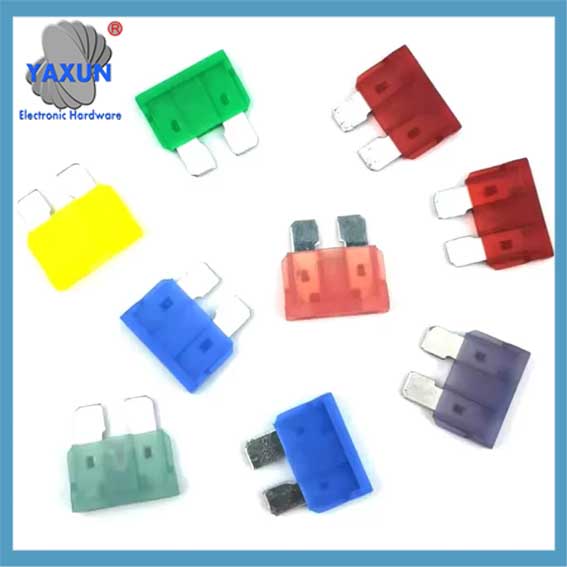

 10 Und AC 32 V DC Fuse Automotive Requires Holder Blade, ATO ATC |
Produktbeschreibung
| Artikelname: | Blade Fuse | Größe: | 19.1mm |
| Montageart: | Plug-in | Unterbrechende Bewertung: | 1000A |
| Blow Speed: | Middle | Hausmaterial: | Nylon/PA66 |
| Fusing Material: | Zinc Alloy | Nennspannung: | 48V 58V |
| Stromstärke: 0,1 A bis 20 Ag: | 1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A | RoHS-konform: | Ja |
| Halogenfrei: | Ja | Standard: | SAE J2077 |
| Betriebstemp: | -40˚C To +125˚C | ||
| Hohes Licht: | 48V Automotive Blade Fuses, ATO Automotive Blade Fuses, PA66 Standard Car Fuses | ||
Produktbeschreibung
48V 58V ATO Standard Blade Fuse Nylon PA66 Blade-type Automotive Fuses 1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A
Produktbeschreibung
| Produktname | Standard Blade Fuse |
| Material | nylon & Zinklegierung |
| Volt-Bewertung | 48V 58V dc |
| Verstärkerbewertung | 1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A |
| Blow Types | middle |
| Environmental | Lead and Ph free |
| Package | 1000Stück pro Beutel |
Spezifikation:
| Spezifikation | Parameters |
| nterrupting Rating: | 1000A |
| Nennspannung: | 48VDC 58VDC |
| Umgebungstemperatur: | -40°C to +125°C |
| Terminals: | zinc aloy |
| Housing Material: | PA66 |
| Complies with: | SAE J2077,ISO 8820 |
Time-Current Characteristics
| % of Rating | Aktuelle Bewertung | Opening Time Min / Max (S) |
| 100 | 35A & 40A | 360,000s/- |
| 110 | 1A-30A | 360.000s/- |
| 135 | 1A&2A | 350 ms / 600S |
| 3A-40A | 0.750S / 600S | |
| 160 | 1A-40A | 250 ms/ 50s |
| 200 | 1A&2A | 100 ms/5.0s |
| 3A-40A | 0.150s/5.0s | |
| 350 | 1A&2A | 20ms/500ms |
| 3A-40A | 80ms/500ms | |
| 600 | 1A-30A | -/ 100 ms |
| 35A & 40A | -/ 150 ms |
Bewertungen & Farben
| Aktuelle Bewertung (A) | Shell Color | Typ. Voltage Drop (mV) | Cold Resistance (mΩ) | I2t(A2s) |
| 1 | Schwarz | 176 | 123 | 0.4 |
| 2 | grey | 141 | 53.5 | 1.4 |
| 3 | purple | 137 | 31.1 | 7.4 |
| 4 | pink | 136 | 22.8 | 14 |
| 5 | tan | 128 | 17.85 | 26 |
| 7.5 | brown | 116 | 10.91 | 60 |
| 10 | red | 109 | 7.70 | 115 |
| 15 | blue | 102 | 4.80 | 340 |
| 20 | yellow | 98 | 3.38 | 520 |
| 25 | white | 92 | 2.52 | 1080 |
| 30 | light green | 84 | 1.97 | 1510 |
| 35 | green | 87 | 1.61 | 2280 |
| 40 | orange | 96 | 1.44 | 3310 |
