3.6x10mm glass, ceramic fuse with connecting cable
Europe and North America have their own certification systems IEC: British BSI, German VDE, Dutch KEMA, Swedish SEMKO, Finnish FEMCO, Italian IMQ, Chinese CCC UL, Japanese PSE, Korean EK, Russian GOST. 3.6x10mm Type: Slow Strike; Rated Power: 250V, 2.5A; Body Size: 3.6 x 10mm/0.1” x 0.4” (D*L); Cable size (each end): 0.5 X 28 mm / 0.02 inches.
3.6x10mm glass, ceramic fuse is also called mini current fuse, IEC127 standard defines it as “fuse-link”. Fuse certification and testing March 20010, two major standards for fuse certification: Europe and North America have their own certification systems IEC: British BSI, German VDE, Dutch KEMA, Swedish SEMKO, Finnish FEMCO, Italian IMQ, Chinese CCC UL, Japanese PSE, Korean EK, Russian GOST. 3.6x10mm Type: Slow Strike; Rated Power: 250V, 2.5A; Body Size: 3.6 x 10mm/0.1” x 0.4” (D*L); Cable size (each end): 0.5 X 28 mm / 0.02 inches.
The fuse is a wire made of a silver-copper alloy with a relatively high resistivity and a low melting point. If the fuse is correctly placed in the circuit, then when the current abnormally rises to a certain height and temperature, the fuse will melt and cut off the current, thereby protecting the circuit from safe operation. The fuse invented by Edison more than a hundred years ago was used to protect the expensive incandescent lamps at that time. With the development of the times, fuses protect electronic/power equipment from overcurrent/overheating and avoid serious damage to electronic equipment caused by internal faults.
Function: Mainly plays an overload protection role. Correctly place the fuse in the circuit. When the current or temperature rises abnormally to a certain limit, the fuse will blow the fuse, cut off the current, and protect the safety of the entire circuit.
Application direction: Fuses and fuse breakers are both safety devices, and they play the same role, both of which are used to protect the safety of the entire circuit. Fuses are mainly used for weak current products, such as chargers, power adapters, usw., while fuse breakers are used for products such as charging cabinets and photovoltaic energy.

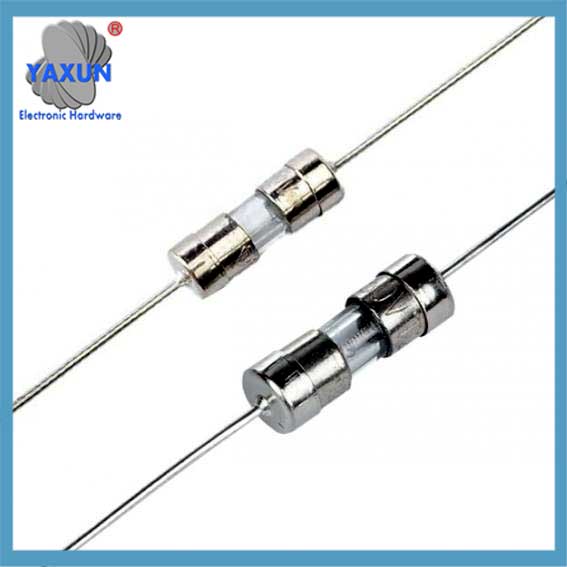

 China uxcell 3.6x10mm Glass Cartridge Fuses Slow Blow Fuse |

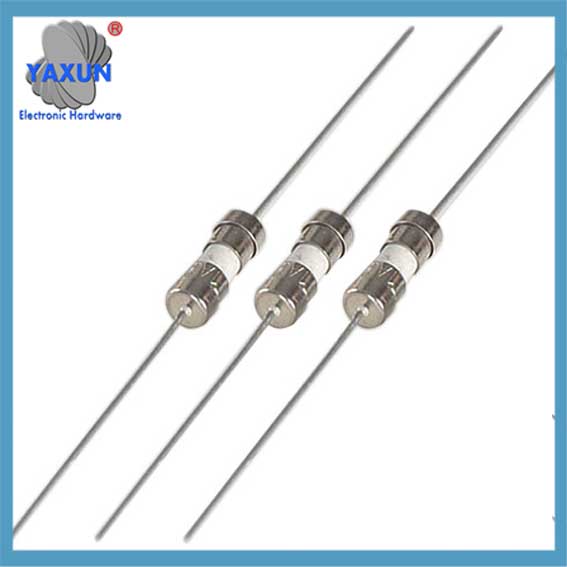

 1A 250V 500mA-10A 3.6*10 ceramic fuse with lead |
China uxcell 3.6x10mm Glass Cartridge Fuses Slow Blow Fuse |
Produktbeschreibung
| Item Name: | Glass Fuse | Blow Type: | Fast Blow, Slow Blow |
| Mounting Type: | Axial Leaded | Standard: | UL Or VDE |
| Body Material: | Glass | Fusing Material: | Tinned Copper |
| Cap Material: | Nickel Plated Brass | Voltage Rating: | 250V |
| Current Rating: | 0.1~10A | RoHS Compliant: | Yes |
| Halogen Free: | Yes | MPQ: | 500pcs Per Bag |
| Package: | 500pcs Per Bag, 20000pcs Per Carton | ||
| Hohes Licht: | 3.6x10mm Glass Tube Fuses, 250V Glass Tube Fuses, 10 Amp Slow Blow Fuse | ||
Produktbeschreibung
3.6×10 Glass Tube Fuses Slow Blow Axial Lead Fuse 3.6x10mm Glass Fuse 250V 0.1A~10A
Beschreibung
| Item | Glass Fuse |
| Standard | UL or VDE |
| Blow Type | fast acting |
| Body Material | glass |
| Leads Material | tinned copper |
| Voltage Rating | 250V 125V |
| Current Rating | 0.1A 0.125A 0.16A 0.2A 0.25A 0.3A 0.315A 0.35A 0.4A 0.5A 0.63A 0.75A
0.8A 1A 1.25A 1.5A 1.6A 2A 2.5A 3A 3.15A 3.5A 4A 5A 6A 6.3A 7A 8A 10A |
| Mounting Type | axial leaded |
| Breaking Capacity | 35A |
| Size | 3.6x10mm 0.14″ x 0.39″(D*L) |
| Anwendungen | home appliance, power supply, telecommunication, consuming electronics |
Blowing Characteristics
Fast blow
| Time vs Current Characteristics: IEC 60127 | ||||
| Rated current | 210% | 275% | 400% | 1000% |
| Blowing Time | <30min | 10ms~3s | 3ms~300ms | <20ms |
| Time vs Current Characteristics:UL248-1/14 | ||||
| Rated current | 100% | 135% | 200% | 1000% |
| Blowing Time | >4hs | <1h | <5s | >10ms |
Time delay
| Time vs Current Characteristics: IEC 60127 | ||||
| Rated current | 210% | 275% | 400% | 1000% |
| Blowing Time | <2min | 400ms~10s | 150ms~3s | 20ms~150ms |
| Time vs Current Characteristics:UL248-1/14 | ||||
| Rated current | 100% | 135% | 200% | 1000% |
| Blowing Time | >4hs | <1h | <120s | >10ms |
