500V 10x38mm Ceramic Fuse R015 / RT1 8/ RT14 Fuse Core
Kategorie: Elektro-Sicherung
Stichworte: Keramikrohrsicherung, elektrische Sicherung, Glasrohrsicherung
500V 16A R015 RT18 RT14 Fast Blow Ceramic Fuse Links 10 x 38mm/0.4″ x 1.5″ (3/8″ x 1-1/2″).
10x38mm Ceramic Fuse R015/RT18/RT14 Latest Application Areas: 15-50KW PV Photovoltaic Inverter
: UPS, Frequency Converter, Air Conditioner, APF
: Power Transmission and Distribution, Energy Storage Power Station
: Elevator, Rail Transit, Aviation Power
Introduced complete matching products as follows: PV Photovoltaic Fuse Series: 500V 600V 660V 690V 1000V
Current sensor series: L18P L07P S22P L08P L01Z F01P
F02P F03P L03S L05S L06P L12P L34S S20S S21S
S23P S25P S26P S27S S28S
High current EMC common mode CHOKE / CRM PFC inductor series
55-100A single-phase common mode inductor, 55-100A three-phase common mode inductor
Produktbeschreibung
Item Name: | Solar PV Fuse | Part No.: | PV1000 |
Blow Type: | Fast Blow | Mounting Type: | Cartridge |
Standard: | UL | Tube Material: | Keramik |
Cap Material: | Nickel/silver Plated Brass | Fusing Material: | Alloy |
Voltage Rating: | 1000Vdc | Current Rating: | 1A 2A 3A 3.5A 4A 5A 6A 8A 10A 12A 15A,16A,20A,32A |
Applied To: | 10x38mm Fuses | UL Listed: | Yes |
RoHS Compliant: | Yes | Halogen Free: | Yes |
MPQ: | 100pcs Per Bag | Package: | 1000pcs Per Box, 4000pcs Per Carton |
Hohes Licht: | Photovoltaic Solar PV Fuse
, 10x38mm Solar PV Fuse , 10 Amp Ceramic Fuse |
Produktbeschreibung

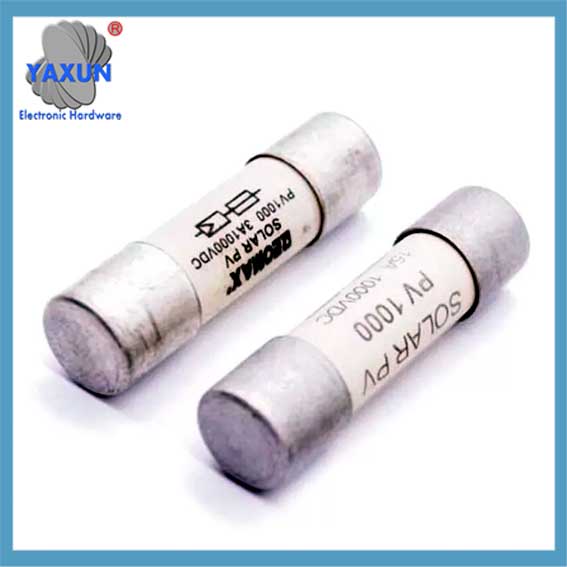

10×38 1000V Solar PV Fuse 10x38mm 1000Vdc Photovoltaic Fuse 1A 2A 3A 3.5A 4A 5A 6A 8A 10A 12A 15A for Solar Panel
Beschreibung
Item | Solar PV Fuse |
Standard | UL |
Blow Type | fast |
Body Material | Keramik |
Fusing Material | alloy |
Cap Material | nickel/silver plated brass |
Voltage Rating | 1000VDC |
Current Rating | 1A 2A 3A 3.5A 4A 5A 6A 8A 10A 12A 15A |
Mounting Type | cartridge |
Breaking Capacity | 10KA 33KA |
Size | 10x38mm |
Certifications | CUL UL |
Anwendungen | Photovoltaic |
Merkmale
1000Vdc Fuse for Solar Panel Applications
10x38mm physical size with leads
Designed to UL 2579
Capable of interrupting low overcurrents associated with faulted
Lead Free and Halogen free material
Specification | |||||||
Part No. |
Rated
Voltage |
Nennstrom | Breaking Capacity | Energy Integrals I2t (A2S) | Power Loss
(W) |
||
DC | DC | Pre‐Arcing | Total at 1000V | 0.8In | 1.0In | ||
PV1000.1A |
1000V |
1A |
UL 10kA IEC 33kA Time Constant 1‐3ms |
0.15 | 0.4 | 0.8 | 1.5 |
PV1000.2A | 2A | 1.3 | 3.4 | 0.7 | 1.1 | ||
PV1000.3A | 3A | 4 | 12 | 0.8 | 1.3 | ||
PV1000.3.5A | 3.5A | 6.5 | 20 | 0.9 | 1.4 | ||
PV1000.4A | 4A | 10 | 28 | 1.1 | 1.4 | ||
PV1000.5A | 5A | 19 | 50 | 1.1 | 1.4 | ||
PV1000.6A | 6A | 32 | 93 | 1.2 | 1.8 | ||
PV1000.8A | 8A | 3.2 | 33 | 1.2 | 2.2 | ||
PV1000.10A | 10A | 30 | 70 | 1.3 | 2.3 | ||
PV1000.12A | 12A | 50 | 200 | 1.5 | 2.8 | ||
PV1000.15A | 15A | 60 | 230 | 1.8 | 3 |
DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃
Typical Pre‐arching I2t are measured at 10In Current
Min Interrupting Rating: 1.35 x In
Fuse Coordination w/: Thin film cells and 4”, 5” and 6” crystalline silicon cells.
Dimension & Structure
