5x20mm pcb soldering mount fuse holder clip Copper 0.4mm thickness

0.3mm 0.4mm 0.5mm Thickness 5*20mm pcb soldering mount fuse holder clip. 5x20mm Glass Tube / ceramic tube Electronic Plug In Copper Insurance / Phosphor Bronze Header Fuse Holder Clip Clamp.

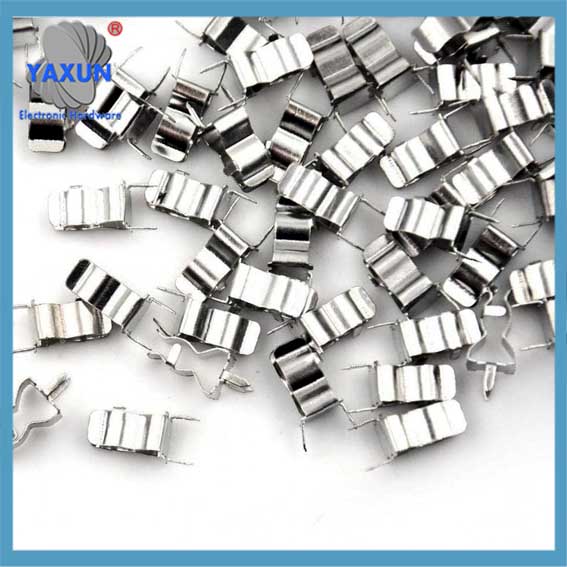

5x20mm pcb soldering mount fuse holder clip chassis tinned brass 0.4mm thickness

5x20mm pcb soldering mount fuse holder clip chassis tinned brass 0.4mm thickness

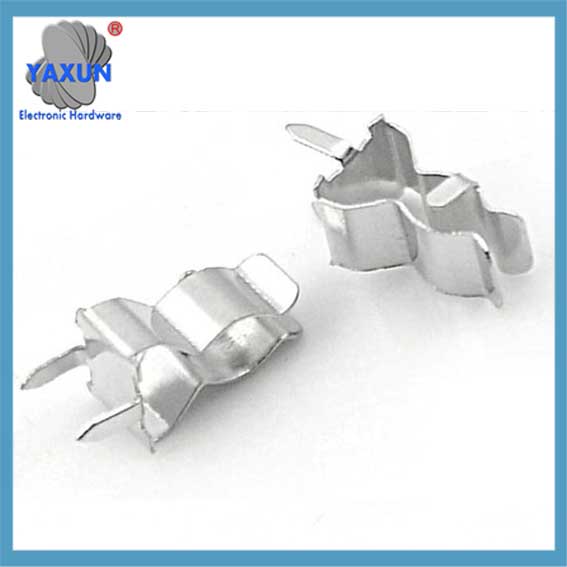

0.4mm Thickness 5.2x20mm PCB Mount Fuse Holder 10A Nickel Plated Brass

0.4mm Thickness 5.2x20mm PCB Mount Fuse Holder 10A Nickel Plated Brass

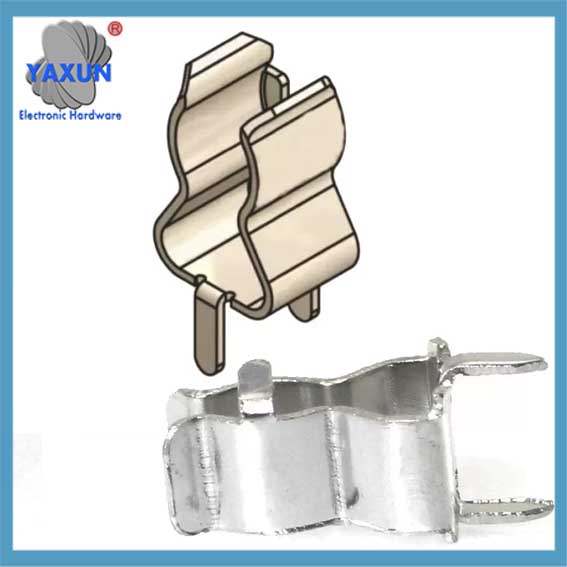

Fuse Block Fuse Holder and Fuse Accessories

Fuse Block Fuse Holder and Fuse Accessories

Item Name: Fuse Holder, Fuse Clip Mount Type: PCB
Nennspannung: 250V Nennstrom: 10A
Plating: Tin Or Nickel Height: 13.1 Mm
Thickness: 0.4 Mm Applied To: 5.2x20mm Fuse
RoHS Compliant: Yes Body Material: Messing
Hohes Licht: 0.4mm PCB Mount Fuse Holder, 10A PCB Mount Fuse Holder, Fuse Holder 5x20mm

Produktbeschreibung

250V 6.3A 5×20 PCB Mount Tinned Nickel Plated Brass Fuse Holder 5.2x20mm Fuse Clip 0.4mm Thickness

Produktbeschreibung

Item 520B 5×20 Fuse Clip PCB Mount
Rating 10A 250V
Body Messing
Plating nickel or tin
Length 6.5mm
Width 5.5mm
Hole distance 5.2mm
Terminal Width 1.2mm



The most used fuse clips for 5x20mm fuses



Electrical Characteristics:

Rated Current/Voltage:10A 250V

Operating Power:1.6W

Contact Resistance: 5mΩ max

lnsulation Resistance: 100mΩ min

Dielectric Strength:3000Vac/60sec min



Widely used in household appliances, electric power, telecommunications, machine tools, ships, textiles, printing, mining machinery, instruments, usw.

5x20mm pcb soldering mount fuse holder clip Drawing

5x20mm pcb soldering mount fuse holder clip Drawing
