6.35×32 Hochspannungssicherung aus Keramikrohr, 15 A, 250 V, träge
Bestimmen Sie die Sicherheitsmarke von 5×20, 3.6×10, 6.35×32 Sicherungen: Entsprechend den Marktanforderungen, wo das Produkt verkauft werden soll, Wählen Sie das Sicherheitszertifizierungszeichen und den Sicherheitsstandard aus (Ul Standard- oder IEC -Standardsicherung) des Glasschützerrohrs aus Glas.
A) Bestimmen Sie die Sicherheitsmarke von 5×20, 3.6×10, 6.35×32 Sicherungen: Entsprechend den Marktanforderungen, wo das Produkt verkauft werden soll, Wählen Sie das Sicherheitszertifizierungszeichen und den Sicherheitsstandard aus (Ul Standard- oder IEC -Standardsicherung) des Glasschützerrohrs aus Glas.
B) Determine the external dimensions: According to the installation space and the determined safety certification mark and safety standard, select the external dimensions of the fuse tube.
C) Determine the model: According to the current characteristics of the protected circuit, select the model of the fuse tube. Zum Beispiel, if the current characteristics of the protected circuit are constant current, select a fast-blow type.
D) Determine the rated voltage: According to the input voltage and usage requirements of the protected circuit, determine the rated voltage of the fuse tube. Zum Beispiel, if the input voltage of the protected circuit is 220V, a fuse tube with a rated voltage of more than 220V must be selected, and 250V, 300V, 350V, usw. can be selected. Jedoch, considering the cost factor, it is not necessary to select an excessively high rated voltage.
e) Determine the minimum rated current: According to the stable working current of the protected circuit and the relevant use loss coefficient, preliminarily determine the rated current of the fuse tube. Zum Beispiel, if the stable working current of the protected circuit is 1A, a UL standard time-delay fuse tube is selected, and the working environment temperature is about 80°C, then the minimum rated current of the fuse tube is: 1A×1.25÷0.5=2.5A.
F) Determine the minimum I2T of the fuse tube: Determine the I2T of the fuse tube according to the surge I2T of the protected circuit. Zum Beispiel, the surge I2T of the protected circuit is 1 (A2S). To ensure that the fuse tube can withstand more than 100,000 impacts, the I2T of the fuse tube should be greater than: 1÷0.2=5 (A2S).
G) Determine the rated current of the fuse tube: According to the minimum rated current and the minimum I2T value, check the corresponding model specifications in the product catalog. Take the primary rated current specification that is greater than the minimum rated current value and whose I2T value is also greater than the minimum I2T value as the rated current of the selected fuse tube. Zum Beispiel, based on the above minimum values.
(1) If the I2T of the rated current 2.5A is 4.3 A2S, and the I2T of 3A is 5.4A2S, then 3A is taken as the rated current of the selected fuse tube;
(2) If the I2T of the rated current 2A is 5.3 A2S, and the I2T of 2.5A is 7.6A2S, then 2.5A is taken as the rated current of the selected fuse tube.

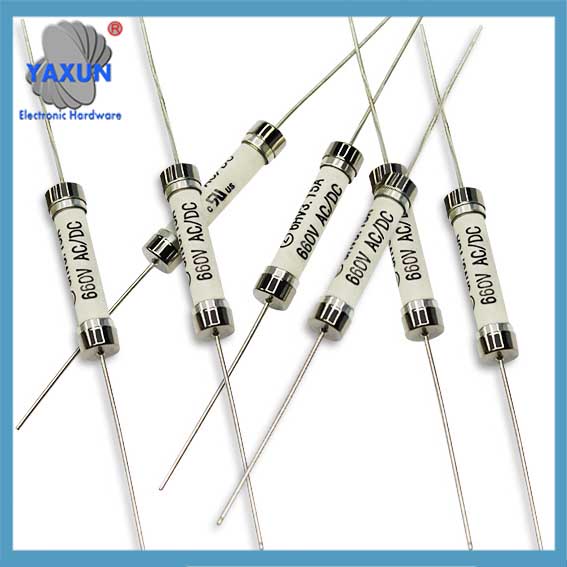

![]() 6.35*32 Hochspannungs-Keramiksicherung 15 A 250 V, langsame Unterbrechung |

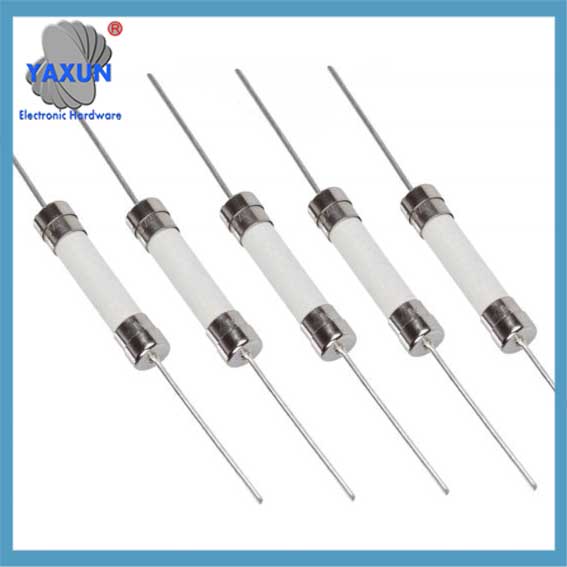

![]() 6.35×32, 6×32 ceramic fuse tube 250mA, 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 15A, 20A, 25A, 30A, 40A, 50A |

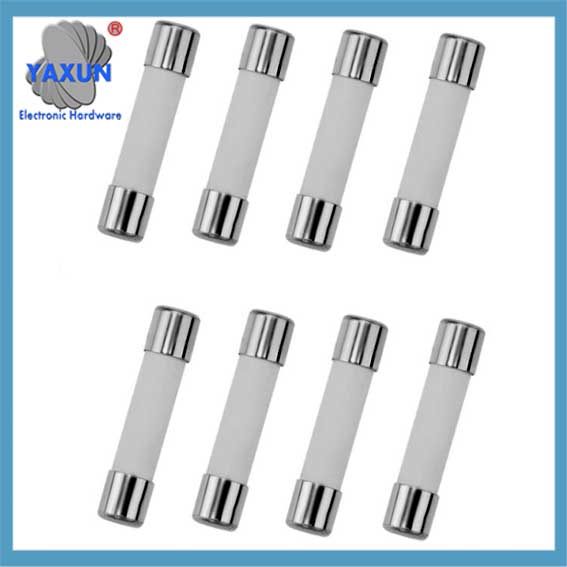

![]() 6.35×32 SUPER FAST ACTING CERAMIC TUBE FUSES 1A TO 30A, MIN 500V |

Ceramic Fuse 6×30 6.35x32mm Fast Acting Time Lag 200mA 500mA 1A 2A 3A 4A 5A
Produktbeschreibung
500V Ac 500Vdc 6.3×32 6×32 3AG Cartridge Fuse Fast Blow Ceramic Fuse Link 500V Tube Fuse For Replacement
Artikel | Keramiksicherung |
Standard | UL |
Schlagtyp | fast acting |
Körpermaterial | Keramik |
Fusing wire Material | Legierung |
Filler | silicon |
Cap Material | nickel plated brass |
Nennspannung | 500 VAC 500 VDC |
Aktuelle Bewertung | 0.1A~30A |
Montageart | cartridge or axial leaded |
Breaking Capacity | 10KA 1KA |
Dimension | 6.35×31.75 mm 6.3×32 6×32 3Ag |
Certificates | CUL UL |
Anwendungen | home appliance, Stromversorgung, telecommunication, consuming electronics |
Produktmerkmale
Umgebungstemperatur: -55℃ ~ 125℃ (Überlegen Sie sich das Bewertungen)
Speicherner Zustand: bei Temperatur von +10 ℃ ~ 60 ℃, relative Luftfeuchtigkeit ≤ 75%.
Topftemperatur Löttemperatur: <260℃; Lötung Verweilzeit: 2∼5s
Resistance to Soldering Heat: 260℃, 10S. (Wave); 350℃, 5S.
Solderability: 260℃, ≤ 3s. (Wave); 350±10℃, ≤ 3s.
Breaking Capacity UL certified
Verstärker | Volts | Unterbrechende Bewertung |
0.1A – 12A | 500V und, 500Vdc | 10KA |
0.1A – 30A | 500V und, 500Vdc | 1KA |
Spezifikation
Ampere
Code |
Bewertet
Aktuell |
Bewertet
Stromspannung |
Zulassungen |
cURus | |||
0100 | 100mA |
500V AC |
● |
0200 | 200mA | ● | |
0250 | 250mA | ● | |
0315 | 315mA | ● | |
0400 | 400mA | ● | |
0500 | 500mA | ● | |
0630 | 630mA | ● | |
0800 | 800mA | ● | |
1100 | 1A | ● | |
1125 | 1.25A | ● | |
1150 | 1.5A | ● | |
1160 | 1.6A | ● | |
1200 | 2A | ● | |
1250 | 2.5A | ● | |
1300 | 3A | ● | |
1315 | 3.15A | ● | |
1400 | 4A | ● | |
1500 | 5A | ● | |
1630 | 6.3A | ● | |
1700 | 7A | ● | |
1800 | 8A | ● | |
2100 | 10A | ● | |
2125 | 12.5A | ● | |
2150 | 15A | ● | |
2160 | 16A | ● | |
2200 | 20A | ● | |
2250 | 25A | ● | |
2300 | 30A | ● |
Blow Time
Time vs Current Characteristics:UL248-1/14 | ||
Nennstrom | 100% | 200% |
Blowing Time | >4hs | <5S |
Standardpaket
200Stück pro Beutel, 2000pcs per box, 8000Stück pro Karton
