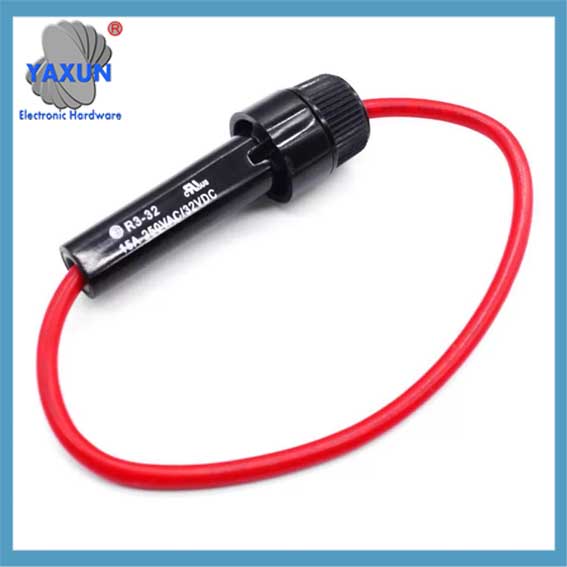

6 X 32 In-Line Fuse Holder 250V 20A Circuit Cartridge Free Hanging With 12AWG 14AWG Cable
China Made from Custom high-quality Waterproof, fireproof plastic / Bakelit, our Free Hanging (In-Line) 3Ag 6 X 32 Inline fuse holders are built to last and protect your car, Electrical appliances, boats ‘s electrical system.
China Made from Custom high-quality Waterproof, fireproof plastic / Bakelit, our Free Hanging (In-Line) 3Ag 6 X 32 Inline fuse holders are built to last and protect your car, Electrical appliances, boats ‘s electrical system.
Easy to Install: Our Free Hanging fuse holders With 12AWG 14AWG Cable are designed for easy installation, so you can get back on the road quickly and safely.
Sleek Design: Our fuse holders connectors and cables come in black and red, making them a stylish addition to your car’s engine compartment.
Perfect Fit: Our Inline fuse holders are designed to fit Inline 0.25″ Dia x 1.26″ L (6.35mm x 32 mm) Sicherungen, ensuring a perfect fit for your car，Electrical appliances, boats’s electrical system.

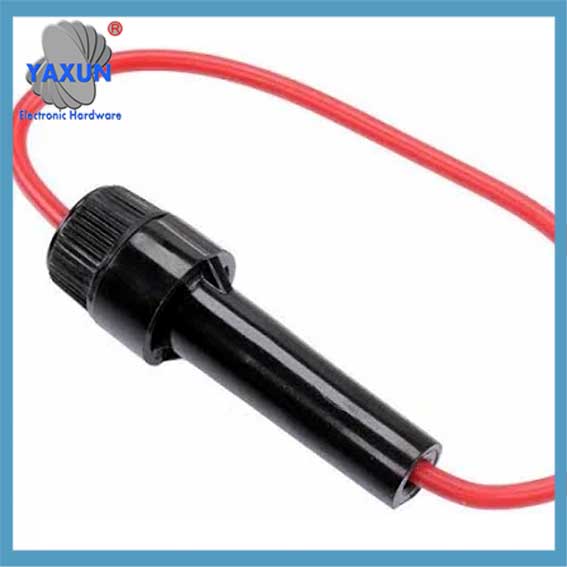

 Black 30mm Inline Fuseholder 20a 250v R3-32b3 |

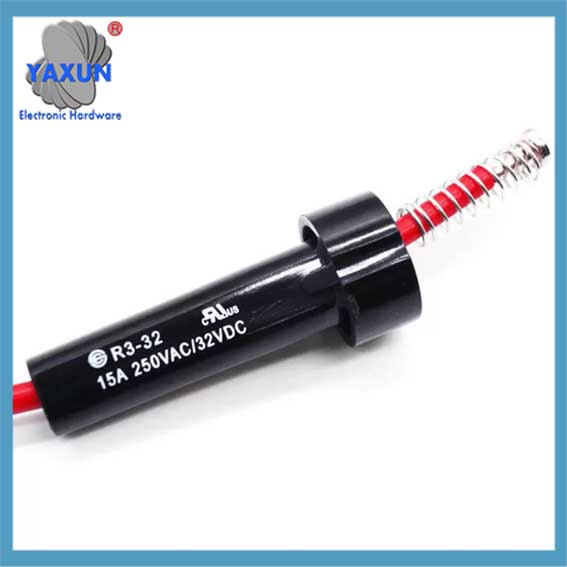

 Inline Fuse Holders for 6 x 32mm Fuses |
 250V AC 20 Amp Inline Fuse Holders Waterproof 6 X 32 With 12AWG 14AWG Cable |
| Artikelname: | Sicherungshalter | Montageart: | Inline, In-line |
| Ur: | 250V Ac, 32In DC | Und: | 20A(5×20), 15A(6.35mm x 32 mm) |
| Angewendet auf: | 5.2×20 6.35×30 Sicherungen | RoHS-konform: | Ja |
| Inflammability: | UL 94V-1 | Körpermaterial: | Phenolic |
| Terminalmaterial: | Tinned Brass | Cap Type: | Bayonet Mount |
| Wire Gauge: | 12AWG 14AWG | Standard Wire Length: | 20cm |
| Hohes Licht: | 20 Amp Inline Fuse Holder, 6 X 32 Waterproof Fuse Holder, 250V Fuse Holder | ||
Produktbeschreibung
Inline Fuse Holders 32V DC 250V AC 5.2×20 20A 6.35×30 6×32 With 12AWG 14AWG Cable
Produktbeschreibung
| Artikelname | Sicherungshalter |
| Mounting Style | In-line |
| Max Rating | 20A/15A 250V AC 32V DC |
| Genehmigung | UL cUL |
| Körperlänge | 56mm |
| Fuse Carrier Diameter | 11mm |
| Cap Diameter | 17.5mm |
| Kabellänge | 200mm |
| Wire end | stripped or uncut |
Frame and cap: phenolic (UL flame:94V-1).
Wire end stripped or uncut is optional.
R3-32AA1:
5.2×20 32VDC/250VAC 20A 12AWG
R3-32AA2:
5.2×20 32VDC/250VAC 15A 14AWG
R3-32BA1:
6.3×32 32VDC/250VAC 20A 12AWG
R3-32BA2:
6.3×32 32VDC/250VAC 15A 14AWG
Features of R3-32 In-line Mount Fuse Holder
1.Einfache Installation: reasonable deisgn with small volume, assembled with cable
2.UL94V-1 insulation material body and UL standard PVC cable
3.Hohe Zuverlässigkeit: Contacts and spring of high capability as well as 12/14 gauge cable ensure the heavy duty usage
Free Hanging 6 X 32 Fuse Holders With 12AWG 14AWG Cable
Features of R3-32 In-line Mount Fuse Holder
