AGC/MDL In-Line IP67 Fuse Holder with 12-18 AWG wire
Merkmale. Includes 20 AMP AGC in-line fuse holders are molded; Wasserdicht; The bright color makes it easy to locate. This fuse holder from designed to fit 1/4-inch (6.3 x 32.1mm) Sicherungen.
Merkmale. Includes 20 AMP AGC in-line fuse holders are molded; Wasserdicht; The bright color makes it easy to locate. This fuse holder from designed to fit 1/4-inch (6.3 x 32.1mm) Sicherungen.

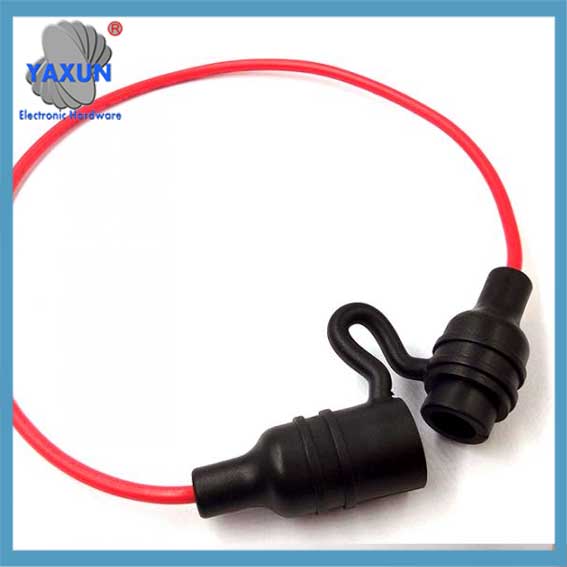

 Blue Sea Systems 5061 5061 Waterproof Inline Fuse Holder Agc-mdl |

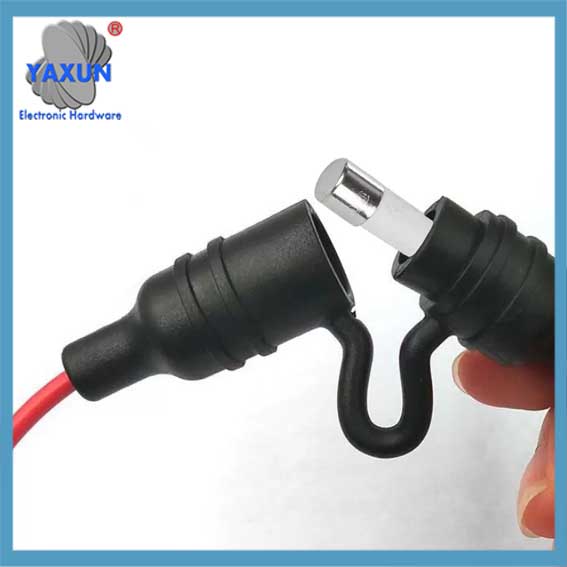

 IP67 AGC Waterproof Inline Fuse Holder Black Splash Resistant |

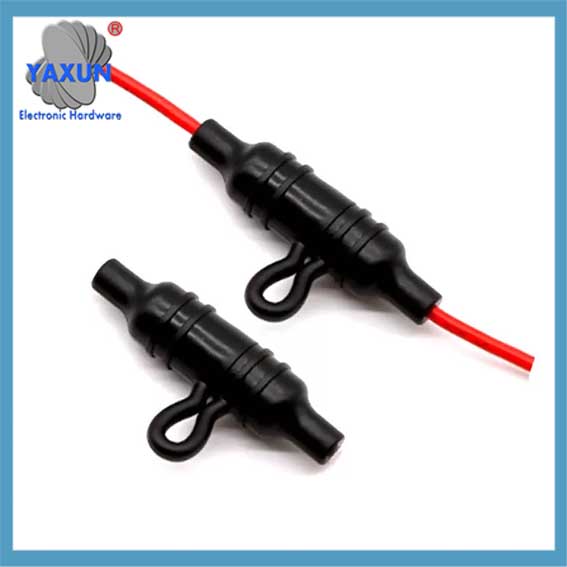

 3ag agc Waterproof Inline Fuse Holder |
| Artikelname: | Waterproof Fuse Holder | Mount-Typ: | Inline, In-line |
| Nennspannung: | 250V | Aktuelle Bewertung: | 30A |
| Angewendet auf: | 6x30mm Fuses, AGC Fuses | RoHS-konform: | Ja |
| Körpermaterial: | Thermoplastic Rubber/PVC | Terminalmaterial: | Messing |
| Cap Type: | Snap In | Fire Retardant Grade: | UL 94V-0 |
| Schutzgrad: | IP67 | Wire Gauge: | 12 14 16 18 AWG |
| Wire Length: | Maßgeschneidert | Körperlänge: | 61mm |
| Isolationswiderstand: | -50°C~185°C | ||
| Hohes Licht: | Waterproof Inline Fuse Holder, Waterproof Inline Fuse Holder, AGC Inline Fuse Holder | ||
Produktbeschreibung
Produktbeschreibung
For 6x30mm FUSES
Gegen Spannung:>AC2000V/1min
LNSULATION -Resistenz:≥100mΩ DV500V
Electrical:Rated at 30A 250V AC
Insulating Body: PVC/rubber
Terminals:Messing
Betriebstemperatur:-50°C~185°C
Fuses are optional.
| Artikel | Waterproof tube fuse holder |
| Mouting Style | Inline |
| Max Rating | 30Ein 250 V |
| Körperfarbe | Schwarz |
| House material | pvc/rubber |
| Terminalmaterial | Messing |
| Körper | 61mm |
| Body diameter | 17mm |
| Schutzgrad | IP67 |
Fearures of the Waterproof 6×30 In-line Fuse Holder
1.Einfache Installation: reasonable deisgn with small volume.
2.Safety: Fire retardant bakelite body and UL standard PVC cable ensure safe operation.
3.Hohe Zuverlässigkeit: finely made contacts and structure ensures the fuses are in full contact with the terminals.
Wide range and customized services
| Fuses Amperes | 0.2A~30A (UL lISTED) |
| Wire Gauge | 18AWG 16AWG 14AWG 12AWG (UL1015 PVC) |
| Benutzerdefiniertes Kabel | length & color (upon request) |
This is an in line fuse. Just cut the wire where you want the fuse to go and then slide the wire into the fuse jacket holes on each end and crimp. You’re done. Takes less than a minute to install.
| Struktur | female and male body, terminal contacts x2, Frühling, Draht, Sicherung |
| Elektrische Leistung | 250V 30A max |
| Körpermaterial | PVC/Rubber |
| Contact Material | Messing |
| Wire Material | PVC and tinned copper |
Drawing:
AGC In-Line Fuse Holder Drawing
Bitte erlauben Sie 1-3 mm-Toleranz aufgrund der manuellen Messung.
Anwendungen:
Electronic boards, Auto, Boot, LKW, SUV, Motorrad, usw.
