ANL Blade Fuse & Fuse Holder for Car Vehicle Audio Video

Fuse Holder and Fuses are sold separately. A necessity for protecting your Car Vehicle Audio Video & power inverter and other electronics; ANL fuses prevent voltage spikes overcurrent protection.

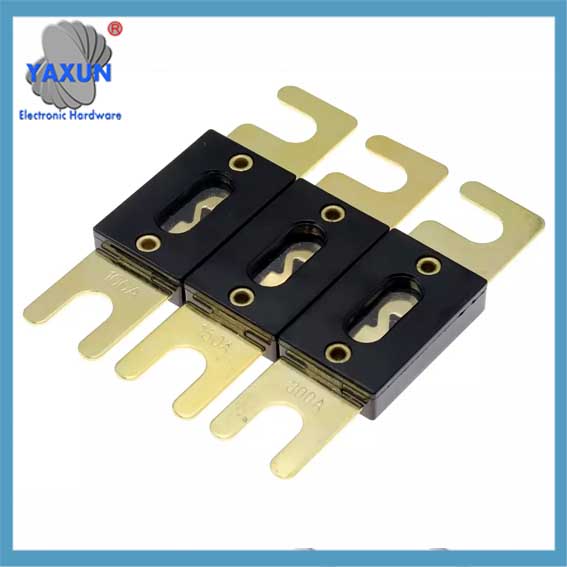

ANL Fuse 12V 24V Car Audio Blade Fuse 30A 100A 250A 400A

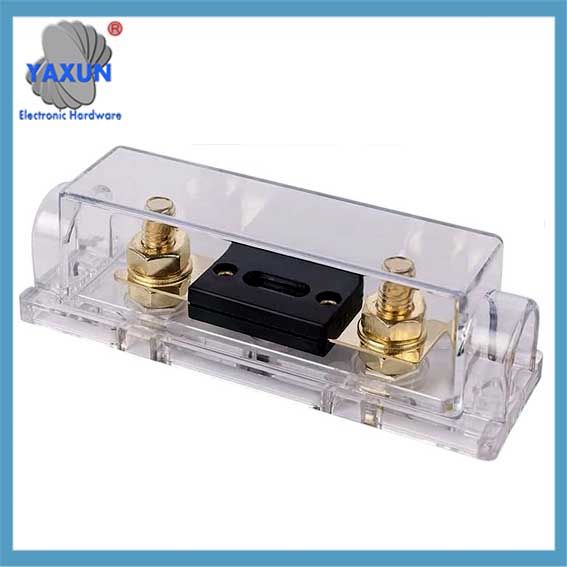

Renogy 30A Set w Holder ANL Fuse Set

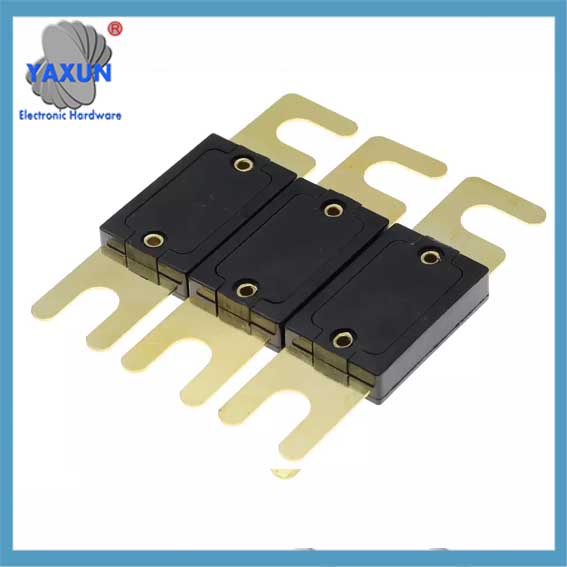

30 Amp ANL Fuse Set with Fuse and Cover

Artikelname:	Sicherung	Teile-Nr.:	ANL
Gesamtlänge:	82mm	Hole Distance:	62mm
Montageart:	Bolt-down	Unterbrechende Bewertung:	2000A
Hausmaterial:	Bakelit	Terminalmaterial:	Gold Plated Copper
Nennspannung:	DC 32V	Stromstärke: 0,1 A bis 20 Ag:	40A 50A 60A 70A 80A 100A 125A 150A 200A 225A 250A 275A 300A 400A 500A
RoHS-konform:	Ja	Halogenfrei:	Ja
MPQ:	100Stück pro Beutel	Betriebstemp:	-40˚C To +125˚C
Standard:	DIN 43560/1

Produktbeschreibung

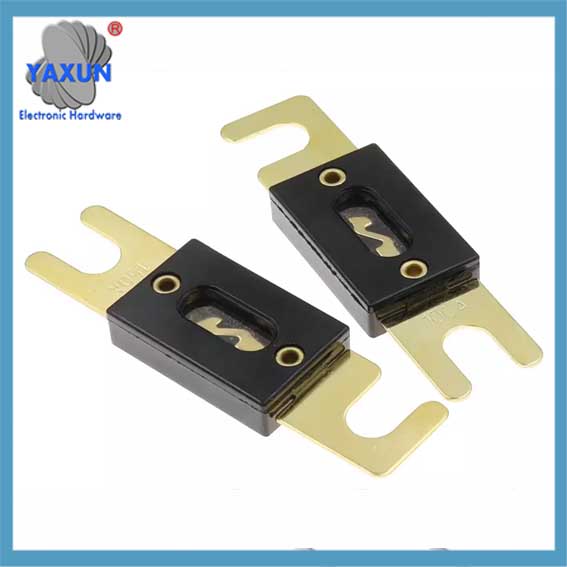

ANL Fuse Gold Plated Fuse for Car Vehicle Audio Video System

Produktbeschreibung

Produktname	ANL Fuse
Typen	Bolt-down
Volt-Bewertung	32Vdc
Verstärkerbewertung	40A 50A 60A 70A 80A 100A 125A 150A 200A 225A 250A 275A 300A 400A 500A
Blow Types	Standard
Environmental	Lead and Ph free
Paket	100Stück pro Beutel

Spezifikation	Parameter
Unterbrechende Bewertung:	2000A @ 32 VDC
Nennspannung:	32 VDC
Temperaturbereich:	-40°C to +105°C
Terminals:	gold plated copper
Housing Material:	bakelite
Complies with:	DIN 43560/1
Mounting Torque	8-14 Nm M6,12-18 Nm M8

Electrical Performance

Time-Current Characteristics

%of Rating	Openning Time Min/Max(S)
	40-200A		225A-500A
	Mindest.	Max.	Mindest.	Max.
150%	1hr	—-	—-	—-
160%	—-	—-	60 S	—-
220%	—-	60 S	—-	60 S
250%	0.8 S	10 S	0.8 S	10 S
400%	0.2 S		0.2 S	2 S
