APT 30A cars Blade Fuse Long Leg Micro ATR AC 48 V DC Fus

APT ATR Micro2 blade fuse (also called spade or plug-in fuse) comes with a high temperature impact-resistant plastic casing & two prongs that fit into sockets . APT-30A – 30 A AC 48 V DC Fuse Automotive Requires Holder Blade, Micro from OptiFuse. Pricing and Availability on millions of ….0.358″ L x 0.150″ W x 0.311″ H (9.10mm x 3.80mm x 7.90mm).

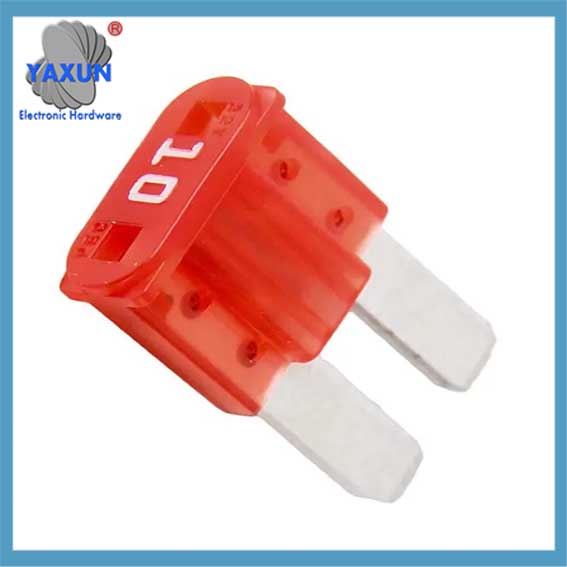

APT 30A Blade Fuse Long Leg Micro2 ATR Fuse Plug in for cars

APT ATR Micro2 Blade Fuse 30A Car Truck Boat Marine RV

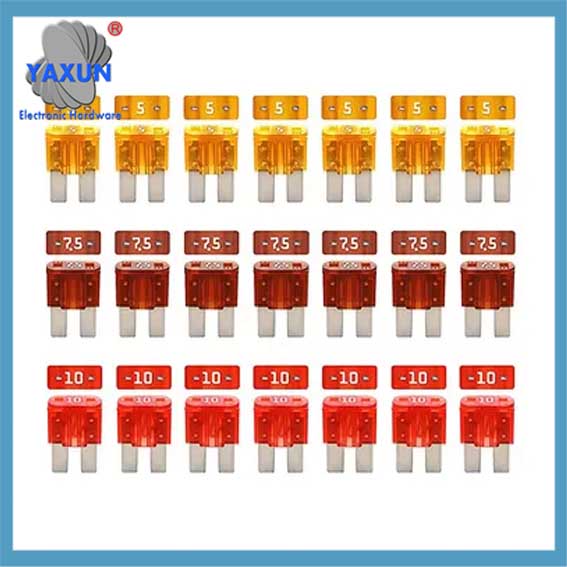

Apt-atr Micro Two Legs Fuses Micro 2 Blade Fuse 30a Amp

Produktbeschreibung

Artikelname:	PEC BFSL Blade Fuse , Micro2 Fuse	Teile-Nr.:	1173 1174 1175 1176 1177 1178 1179
Size:	9.1×15.3mm	Montageart:	Plug-in
Interrupting Rating:	1000A @ 32 VDC	House Material:	PC
Fusing Material:	Zinc Alloy	Nennspannung:	32V Dc
Current Ratin0.1A~20Ag:	5A 7.5A 10A 15A 20A 25A 30A	Plating:	Silver
RoHS-konform:	Ja	Halogenfrei:	Ja
MPQ:	1000pcs Per Bag	Operation Temp:	-40˚C To +80˚C
Hohes Licht:	Micro2 ATR Fuse, 30A Blade Fuse, ATR Micro Fuses

Produktbeschreibung

APT ATR PEC BFSL Blade Fuse Long Leg 1173 1174 1175 1176 1177 1178 1179 Micro2 Fuse 5A 7.5A 10A 15A 20A 25A 30A

Produktmerkmale

Produktname	PEC BFSL Blade Fuse, Micro2 Fuse
Material	pc & zinc alloy plated with silver
Volt Rating	32Vdc
Amp Rating	5A 7.5A 10A 15A 20A 25A 30A
Blow Types	standard
Environmental	Lead and Ph free
Package	1000pcs per bag

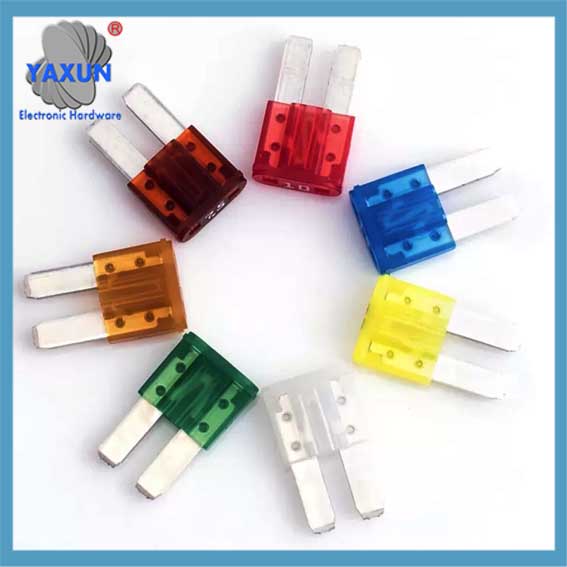

Easily identified by their color-coded plastic housings, and the marked amp rating figures on the top

Used for cars and trucks, It can be mounted in fuse blocks, in-line fuse holders, or fuse clips

Micro2 fuse specification:

Spezifikation	Parameters
Interrupting Capability	1000A
Component Level Temperature Range:	-40°C to +105°C
System Level Temperature Range:	-40°C to +80*C
Terminals:	Zinklegierung
Housing Material:	PC
Complies with:	SAE J1284,ISO 8820-3
