APX Inline Maxi PVC Splashproof Fuse Holder 10 AWG for Car Truck Marine Boat
12V Inline Fuse Holder 30A 40A Maxi APX Fuse, IP67 Waterproof Maximum 60A Fuse Link for Car Truck Marine Boat. A cost-effective maxi automotive fuse for use in automotive, battery and general DC applications. Electrical Specifications 20A-120A 32VDC.
Kategorien: Flachsicherungshalter, Sicherungskastenhalter
Stichworte: Klingensicherungshalter, Auto-Flachsicherung, Inline-Sicherungshalter
Inline Maxi Fuse Holder 10 Gauge AWG Tin Plated Copper, 12V Inline Fuse Holder 30A 40A Maxi APX Fuse, IP67 Waterproof Maximum 60A Fuse Link for Car Truck Marine Boat. A cost-effective maxi automotive fuse for use in automotive, battery and general DC applications. Electrical Specifications 20A-120A 32VDC. APX MAXI Inline Blade Fuse Holder 100% OFC Copper Wire 32V DC; Wire Gauge 8; Wire Length: 12 Inches.
Item Name: | APX Maxi Fuse Holder | Mount Type: | Inline, In-line |
Voltage Rating: | 32V | Current Rating: | 100A |
Applied To: | APX/maxi Blade Fuse | RoHS Compliant: | Yes |
Body Material: | PVC | Terminal Material: | Messing |
Protection Grade: | IP67, Splashproof | Body Length: | 79mm |
Wire Gauge: | 8AWG 10AWG | Wire Length: | Customized |
Operation Temperature: | -40C~125C | ||
Hohes Licht: | APX Maxi Blade Fuse Holders with 8 Awg Inline |
Produktbeschreibung

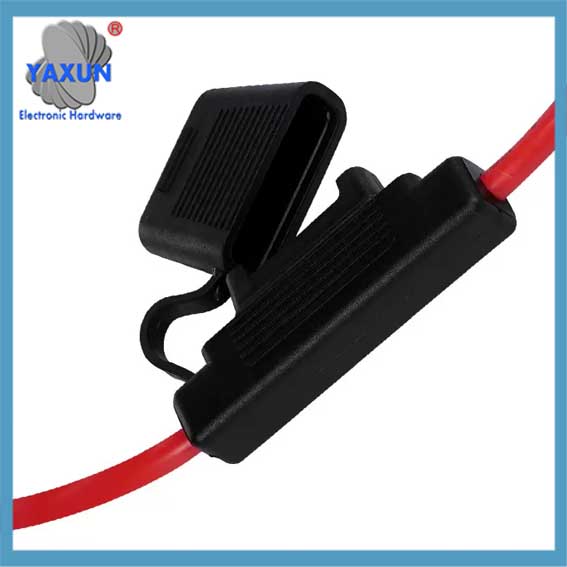

APX Maxi In-line Blade Fuse Holder with 8AWG 10AWG Wire
Produktbeschreibung
For Maxi Car Blade Fuses
8 or 10 Gauge (AWG) UL1015 wire,
Strong PVC molding body
Fits for 20A, 30A, 40A, 50A, 60A, 70A, 80A, 100A Maxi fuse.
Unique design of dual slot tight-fitting waterproof lid to enhance moisture-proof and waterproof.
Good bending performance, melting resistance and excellent electrical conductivity.
Protect the wiring and electrical equipment from short circuit, overload etc.
Best for cars, boats, motorbikes and trucks.
Contact Resistance:100mΩ at 1A DC
lnsulation Resistance:≥100mΩ 500Vdc
Electrical:Rated at 100A 32Vdc
Insulating Body: PVC
Terminals:Messing, plated with nickel
Operation temperature:-40C to +125C
Fuses are optional.
Item | Maxi Car Fuse Holder |
Mouting Style | In-line |
Max Rating | 100A 32V |
Certifications | RoHS |
Body Color | black |
House material | PVC |
Terminal material | Messing |

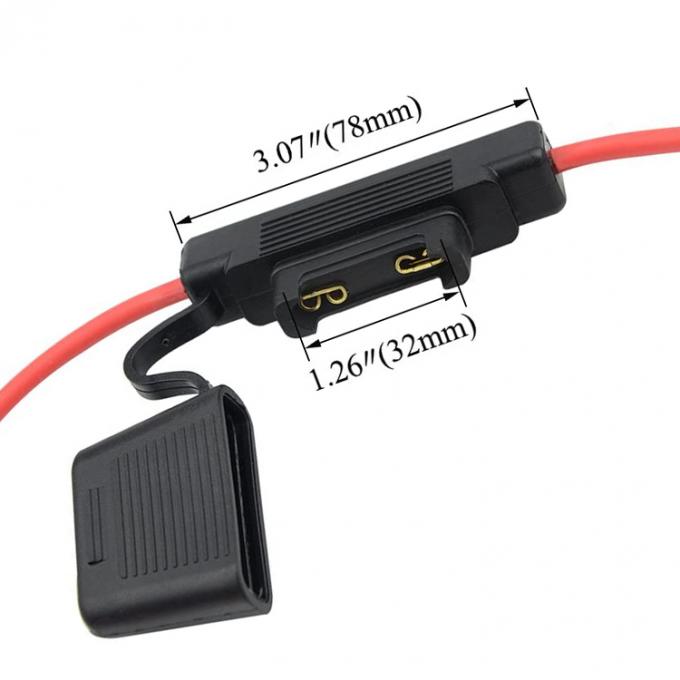

Body length | 79mmx18.5mm |
Body height | 52.4mm |
MOQ | 100PCS |
Available in customized length
1. Easy installation:
Just insert your fuse to the holder,close the cover and then connectthe fuse holder to the circuit.
2. Safety: Safety insulation PVC body and UL standard PVC cable ensure safe operation.
3. High reliability: finely made contacts ensures the fuses are in full contact with the terminals.
4: lP67 Waterprooof Rating
Specially designed rubber cap fits on tightly toprevent water and dust from entering

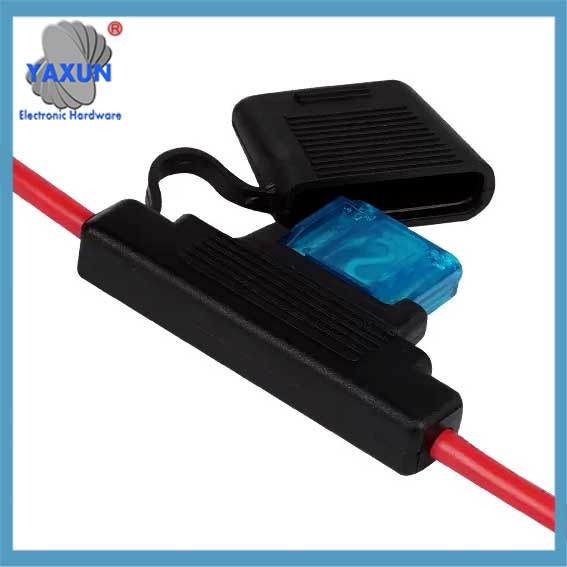

5: Waterproof design, the rubber cap fits on tightly to protect any standard blade fuse inside. NOT easy to fall off or let water in.
What you need to know before ordering:
Size | This is for maxi blade fuses.
Suitable for 20A, 30A, 40A, 50A, 60A, 70A, 80A, 100A fuses (Smilar models for standard and maxi fuses are available) |

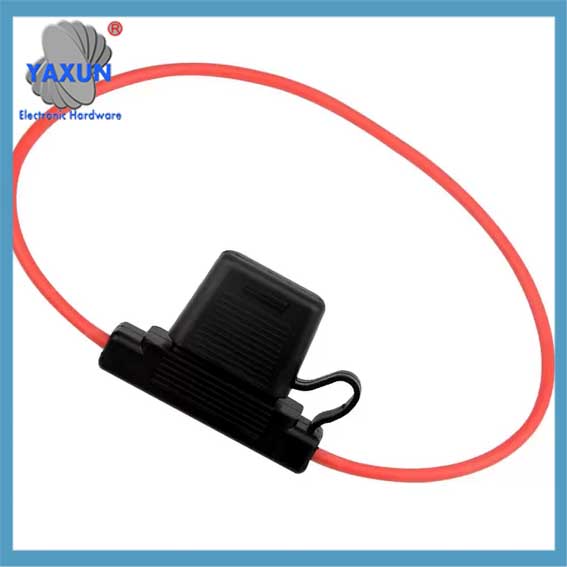

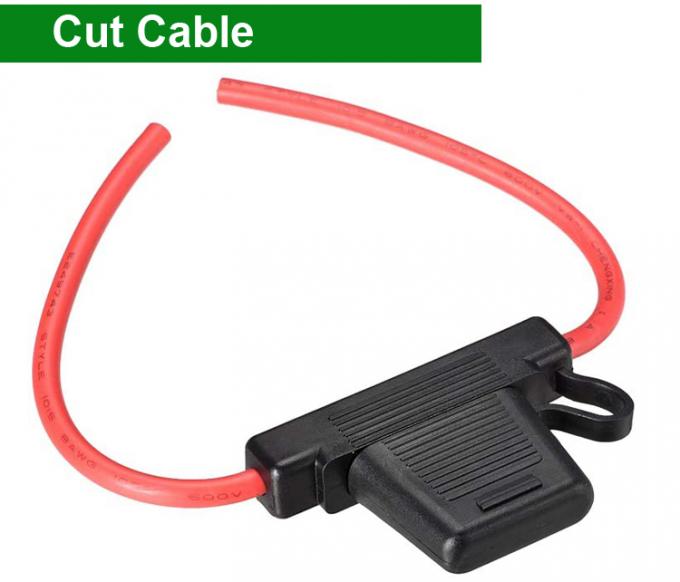

Wire length | which gauge? looped wire or cut wire? how long? |
Wire ends | need stripping? |
Fuse | need fuses preinstalled? |
Anwendungen
Car, Boat, Truck, SUV, Motorcycle, usw.

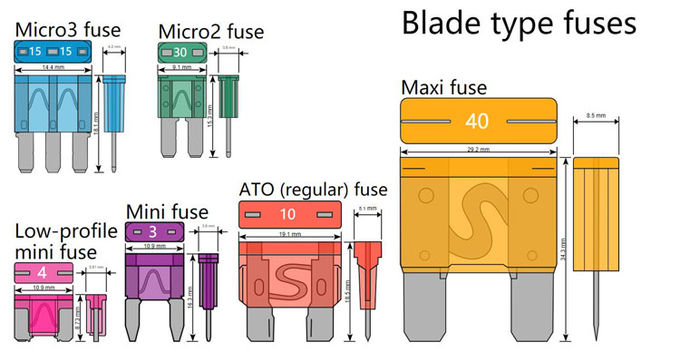

Size groups
Blade size | Blade group | Dimensions L × W × H | Common ratings (maximum current) |
Micro2 | APT, ATR | 9.1 × 3.8 × 15.3 mm | 5, 7.5, 10, 15, 20, 25, 30 |
Micro3 | ATL | 14.4 × 4.2 × 18.1 mm | 5, 7.5, 10, 15 |
LP-Mini (low profile) |
APS, ATT | 10.9 × 3.81 × 8.73 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30 |
Mini | APM, ATM | 10.9 × 3.6 × 16.3 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A |
Regular | APR, ATC, ATO, ATS | 19.1 × 5.1 × 18.5 mm | 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40 |
Maxi | APX | 29.2 × 8.5 × 34.3 mm | 20, 30, 35, 40, 50, 60, 70, 80, 100 |
Colors & Ratings
Color | Current rating |
Black | 1 A |
Grey | 2 A |
Violet | 3 A |
Pink | 4 A |
Tan | 5 A |
Brown | 7.5 A |
Red | 10 A |
Blue | 15 A |
Yellow | 20 A |
Transparent | 25 A |
Green | 30 A |
Blue-green | 35 A |
Orange | 40 A |
Red | 50 A |
Blue | 60 A |
Amber/tan | 70 A |
Transparent | 80 A |
Violet | 100 A |
