ATC Medium Blade Auto Fuse for Marine, Wohnmobil, Camper, Boot, LKW
Automotive Fuse 32V – ATC Blade Auto Fuse Assortment Standard and Mini Car Fuse Zinc Alloy Kit for Marine, Wohnmobil, Camper, Boot, LKW (5A 7.5A 10A 15A 20A 25A 30AMP/ATC/ATO).
Automotive Fuse 32V – ATC Blade Auto Fuse Assortment Standard and Mini Car Fuse Zinc Alloy Kit for Marine, Wohnmobil, Camper, Boot, LKW (5A 7.5A 10A 15A 20A 25A 30AMP/ATC/ATO).

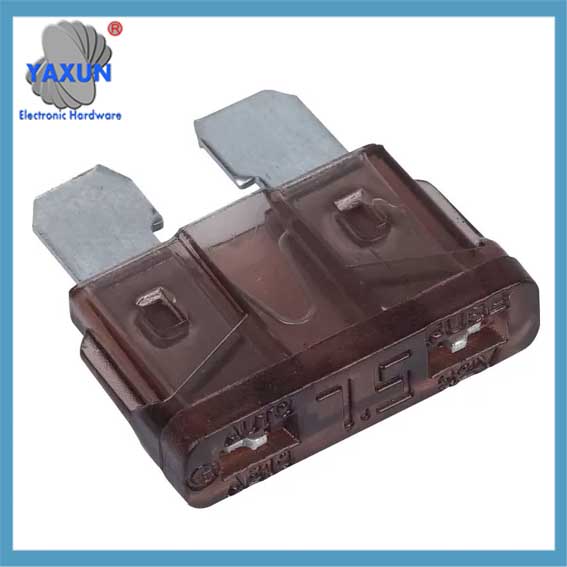

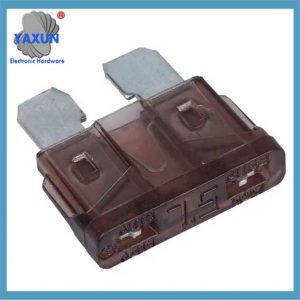

 ATC Medium Standard Blade Fuses 32V Zinc Alloy 19.1mm For Cars |

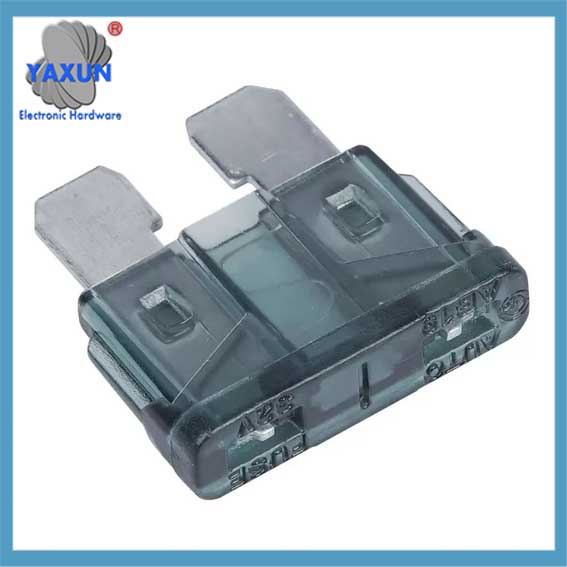

 ATC Mini Car Fuse for Marine, Wohnmobil, Camper, Boot, LKW |

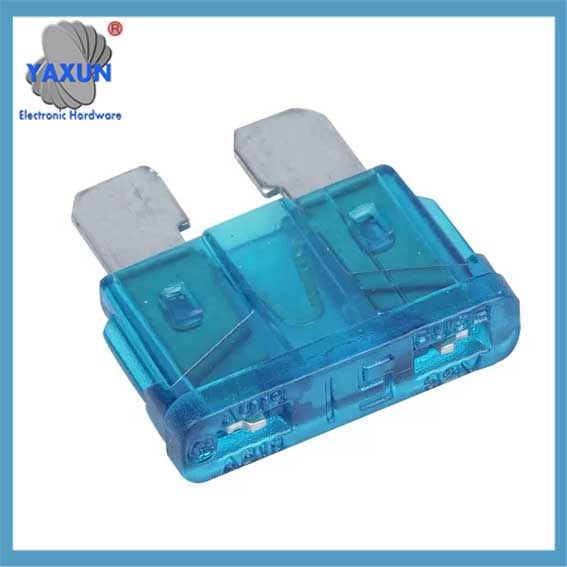

 Bussmann ATC Blade Fuse |
Produktbeschreibung
| Artikelname: | Medium Blade Fuse | Teile-Nr.: | AB19 |
| Größe: | 19.1mm | Montageart: | Plug-in |
| Unterbrechende Bewertung: | 1000A @ 32 VDC | Hausmaterial: | PC |
| Fusing Material: | Zinc Alloy | Nennspannung: | 32In DC |
| Stromstärke: 0,1 A bis 20 Ag: | 1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A | UL-gelistet: | NEIN |
| RoHS-konform: | Ja | Halogenfrei: | Ja |
| MPQ: | 1000Stück pro Beutel | Betriebstemp: | -40˚C To +105˚C |
| Hohes Licht: | 32V Standard Blade Fuses, 19.1mm Standard Blade Fuses, ATC Blade Fuse | ||
Produktbeschreibung
ATS ATO ATC Standard Blade Fuse 32V Zinc Alloy Medium Fuse 1A~40A used for cars
Produktmerkmale
| Artikelname | Standard Car Blade Fuse Medium Fuse |
| Material | pc & Zinklegierung |
| Volts | 32Vdc |
| Amps | 1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A |
| Blow Speed | standard |
| Environmental | Lead and Ph free |
| Package | 1000Stück pro Beutel |
Time-Current Characteristics
| % of Rating | Aktuelle Bewertung | Opening Time Min / Max (S) |
| 100 | 35A & 40A | 100hrs/- |
| 110 | 1A-30A | 100hrs/- |
| 135 | 1A&2A | 350ms / 600S |
| 3A-40A | 0.750S / 600S | |
| 160 | 1A-40A | 250ms/ 50s |
| 200 | 1A&2A | 100ms/5.0s |
| 3A-40A | 0.150s/5.0s | |
| 350 | 1A&2A | 20ms/500ms |
| 3A-40A | 80ms/500ms | |
| 600 | 1A-30A | -/ 100ms |
| 35A & 40A | -/ 150ms |
Drawing of ATS/ATO/ATC Medium Blade Fuse
Drawing of ATS ATO ATC Medium Blade Fuse
ATC Medium Blade Most used amperes
