ATM Auto Reset Snap Action Mini Leistungsschalter E31 E32 5A ~ 30A 14V 28V

E31 E32 5 A bis 30 A modifizierter 14 V 28 V DC automatischer Reset-Schnappschalter ; Typ: Niederspannungs-Leistungsschalter ; Zertifizierung: VDE/ISO9001-2000/CE/UL/CB/CCC/SAE. Material: Plastic Copper automotive circuit breaker. Markierung: cover is color-coded to ampere ratings.

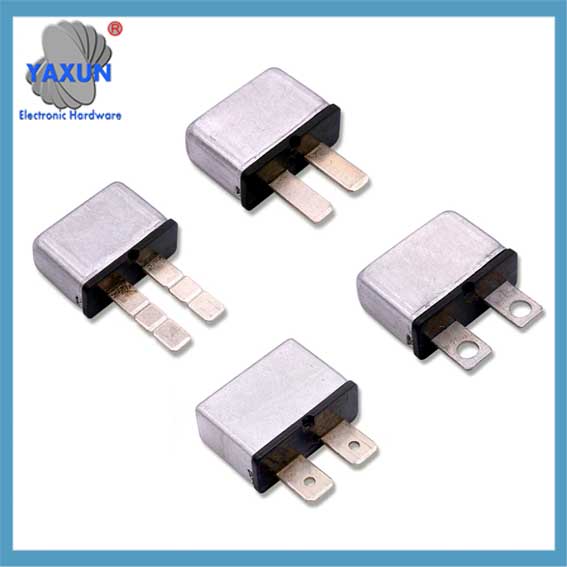

E31 E32 5 A bis 30 A modifizierter 14 V 28 V DC automatischer Reset-Schnappschalter

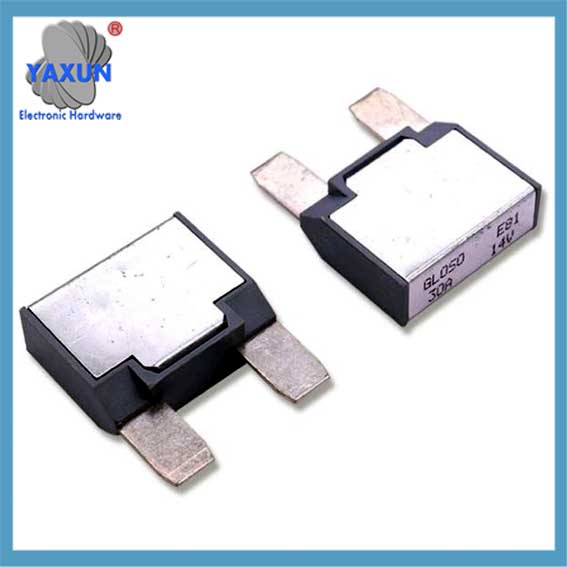

E87/ E88/ E89 Blade Circuit Breaker

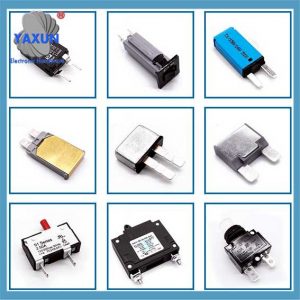

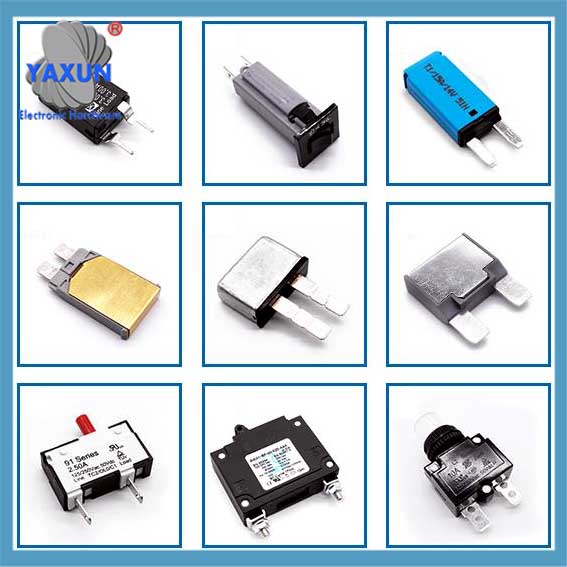

Wählen Sie Mini-Leistungsschalter mit verschiedenen Funktionen

Mini Auto Low Voltage Circuit Breakers :
Automatic Reset Type / Manual Reset Type / Modified Reset Type

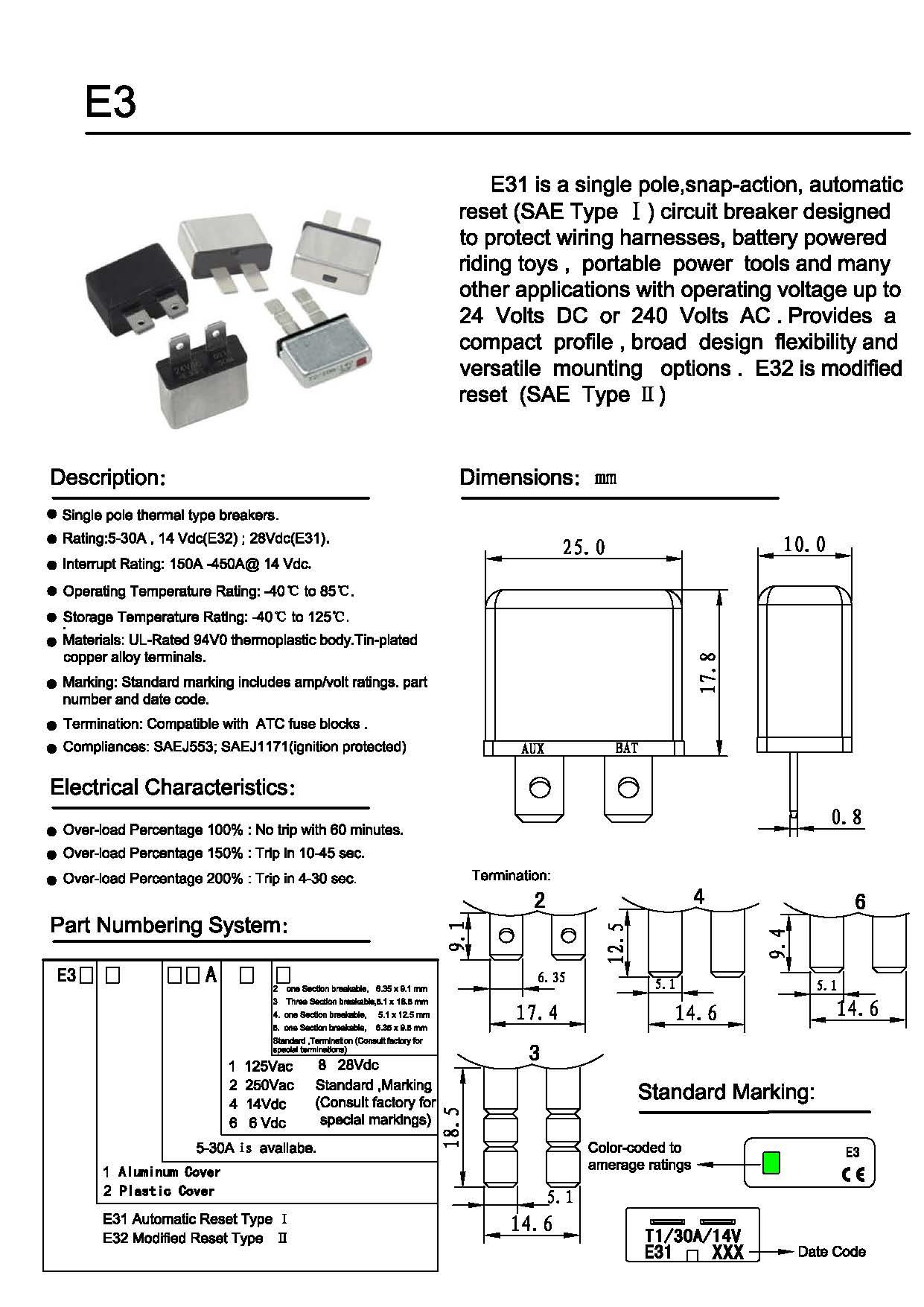

1: E31/E32 Miniature Circuit Breaker

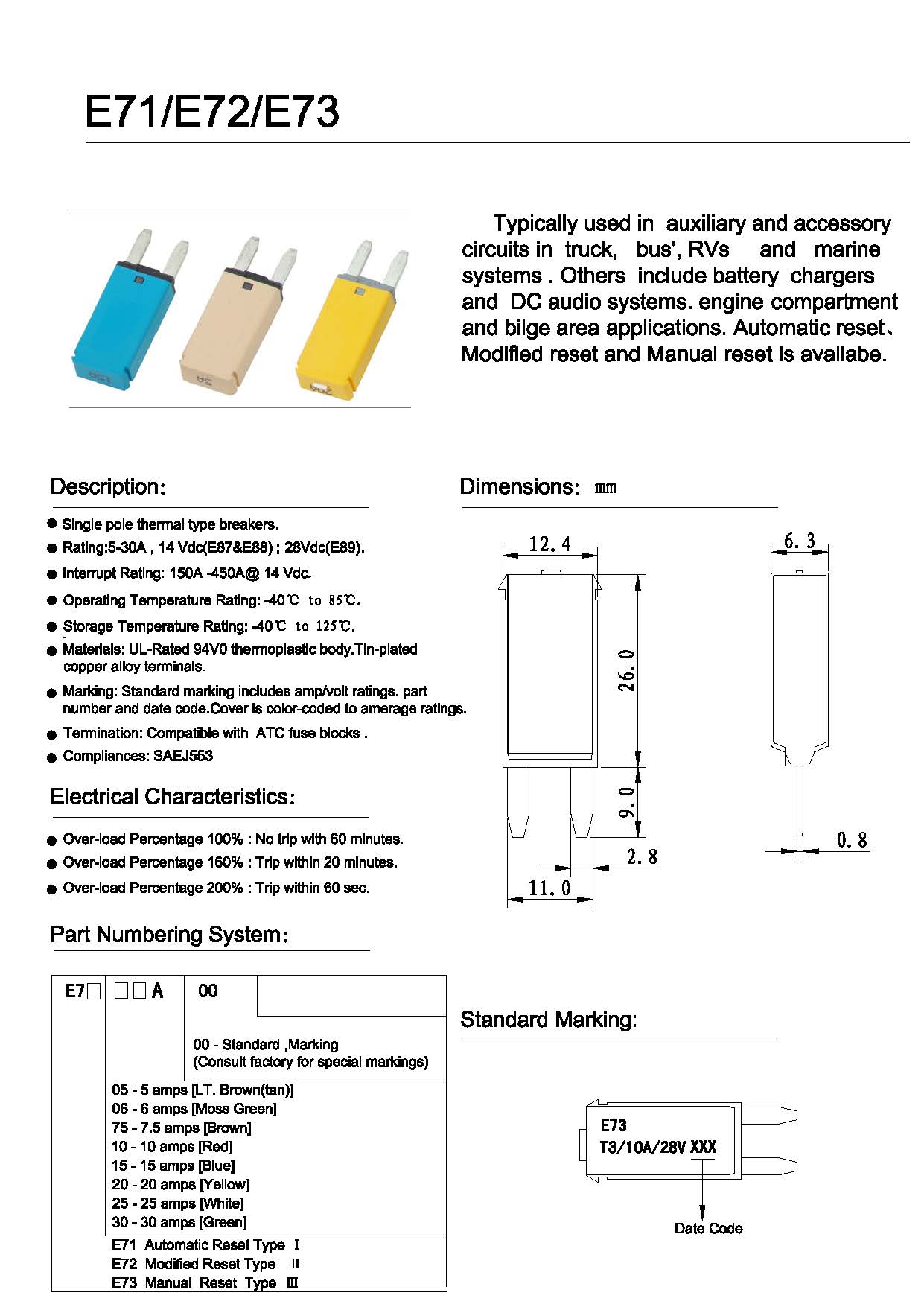

2: E71/E72/E73 Car Circuit Breaker

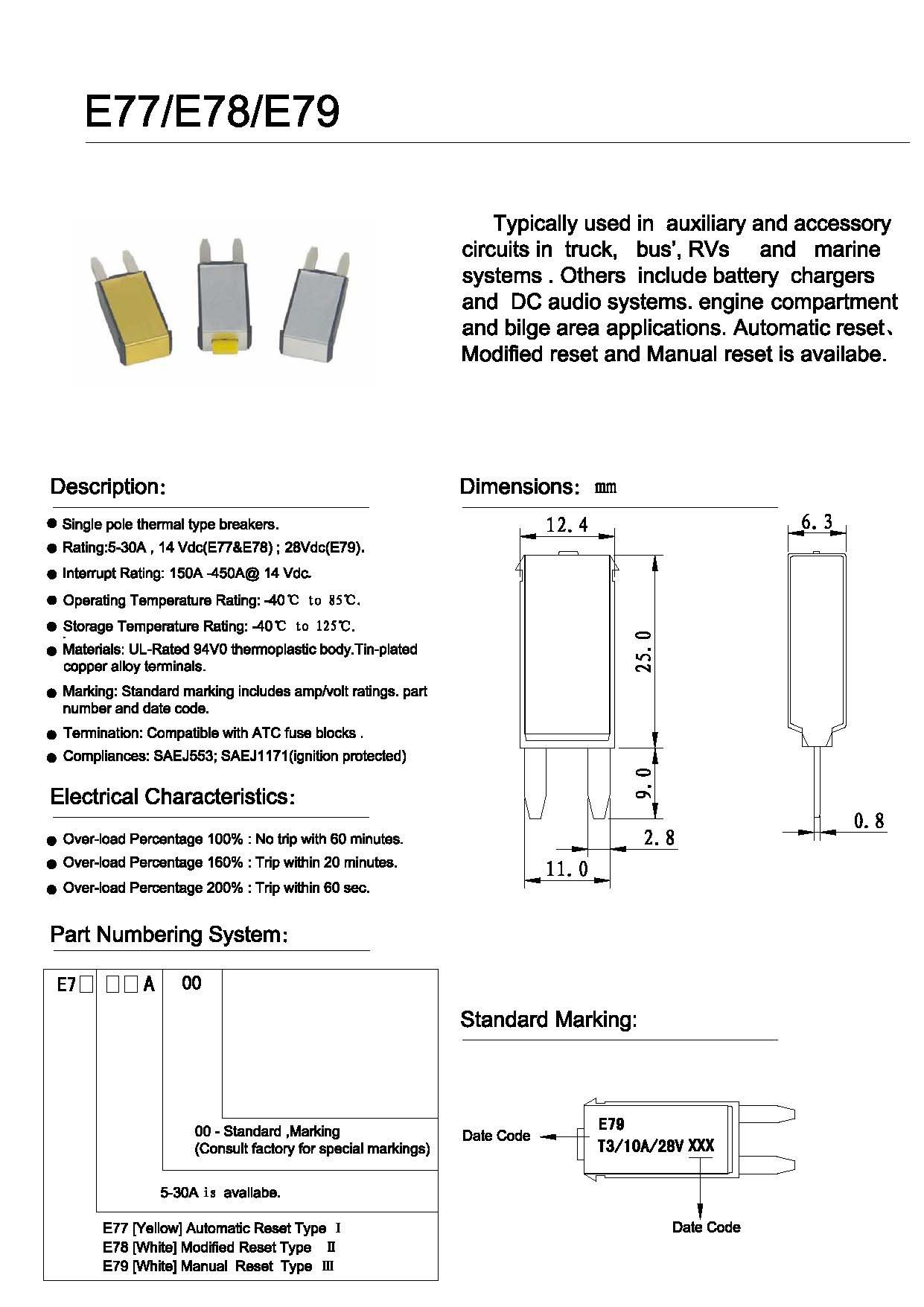

3: E77/E78/E79 Automotive Circuit Breaker

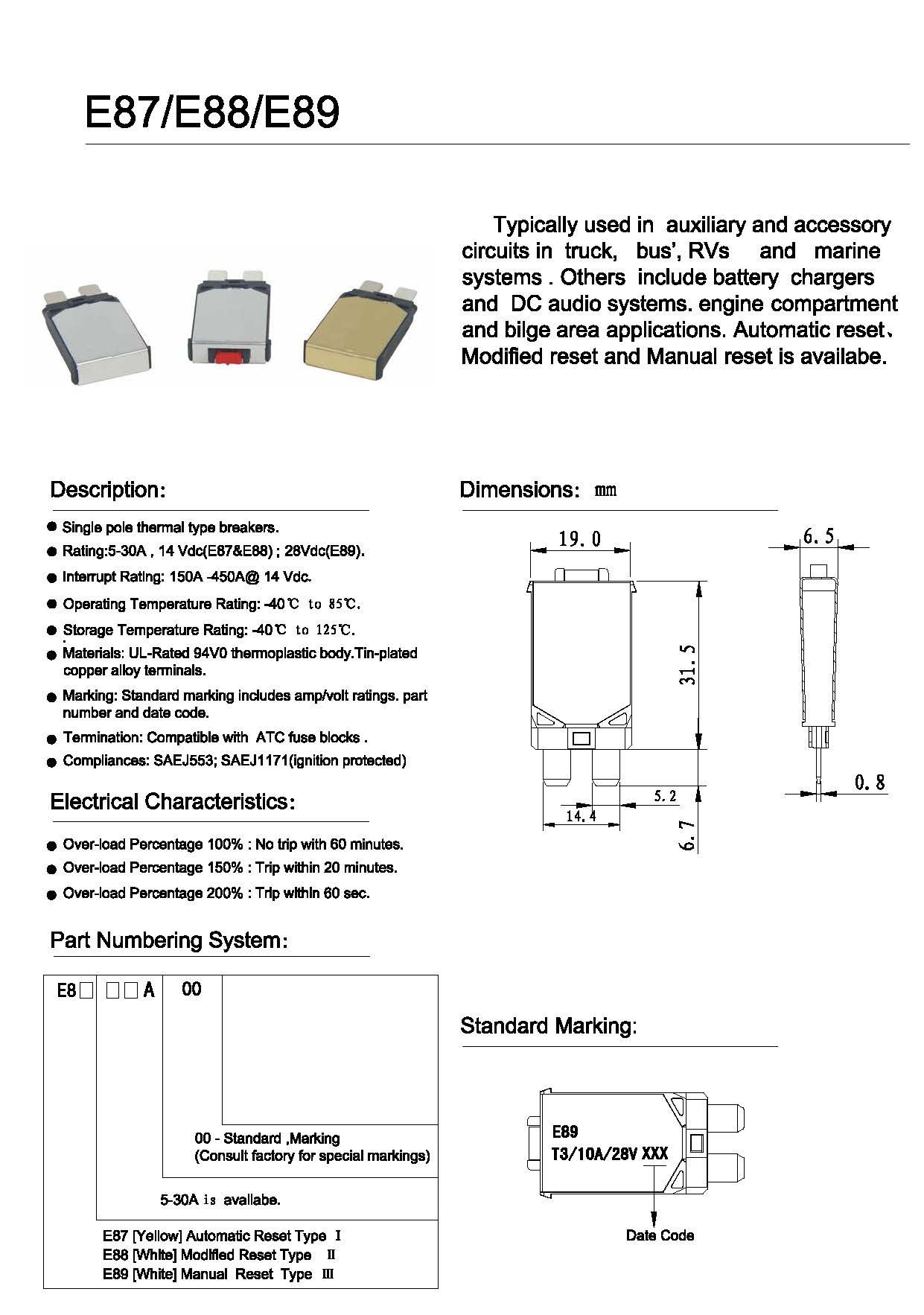

4: E87/88/89 Blade Circuit Breaker

Product Introduction
The product works on the principle of bimetallic action characteristics and is used in AC and DC circuits that require protection from overload or excessive current. Widely used in various electromechanical appliances, wie zum Beispiel: Batterien, automotive electrical equipment, Winde, Gleichstromversorgungsausrüstung, Elektrofahrzeuge, Ladegeräte, Motoren, usw.

Product performance:
● Rated current 5-35A;
● Input voltage: standard 14VDC; 125VAC/250VAC 50-60HZ; customizable 28VDC
● Withstand voltage: 1500VAC/1min, leakage current ≤0.5mA;
● Insulation resistance: 500VDC 1Min≥100MΩ;
● Rated short-circuit capacity: 150A@14VDC(5-10A); 225A@14VDC(15A); 300A@14VDC(20A); 450A@14VDC(25-30A);
● Reset mode: automatic reset T1;
● Reset mode for other products: unplug the power to reset T2;
● Plastic shell E312 and aluminum shell E311, E321 are optional;
● Terminal pin: quick-insert 250 terminal, width 6.3mm, length 9.1mm, 9.4mm, 12.5mm, 18.5mm;

Action performance
● Test environment temperature: 25±3℃, Nennstrom 100%, no tripping within one hour; Nennstrom 135%, Innenstolpern 60 Minuten; Nennstrom 200%, Innenstolpern 25 Sekunden;

Produktzertifizierung:
● Meet SAE standard requirements.
● Meet EU RoHS environmental protection directive requirements.
● Meet EU REACH environmental protection directive requirements.
