ATO ATC ATU Plug-in-Flachsicherungshalter 32V 30A Panelmontage mit Abdeckung
SL-703FC ATO ATC ATU Blade Fuse Holders 21.3mm Length, Panel Mount ATC Fuse Block With Cover. High Light SL-703FC circuit board fuse holder , 125C circuit board fuse holder , 32V blade fuse holder pcb mount. Brand Name YAXUN. Certification ROHS.
|

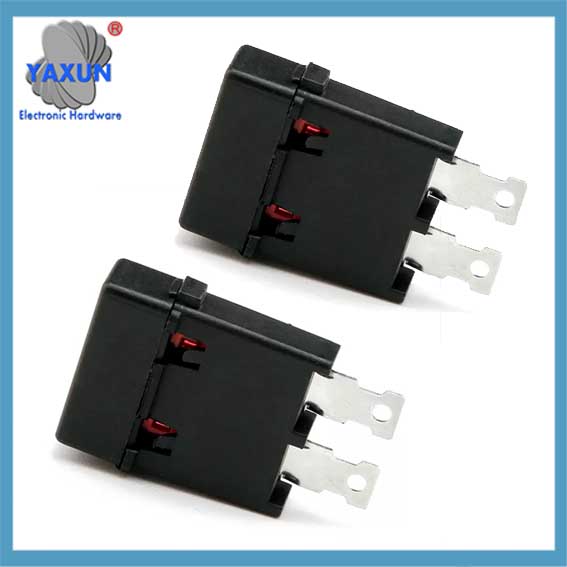

SL-703C ATO-Flachsicherungshalter SL-703FC ATO-Autosicherungshalter |

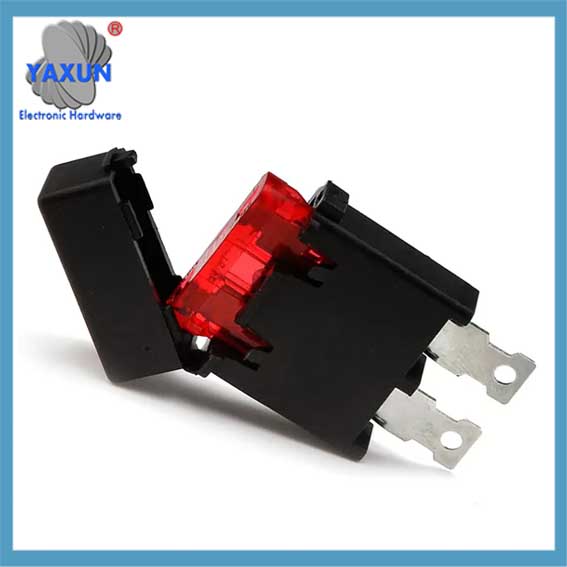

China SL-703FC 125C Leiterplatten-Sicherungshalter 32V Flachsicherungshalter Leiterplattenmontage |
APR, ATC, ATO, ATS Blade Fuses Item 703FC Fuse HolderAPR, ATC, ATO, ATS Blade Fuses Item 703FC Fuse Holder |
| Artikelname: | 703FC Blade Fuse Holder | Mount-Typ: | Panel Mount |
| Ur: | 32Vdc | Und: | 30A |
| Angewendet auf: | APR ATC ATO ATS Fuses | RoHS-konform: | Ja |
| Körpermaterial: | Nylon | Terminalmaterial: | Messing |
| Terminaldicke: | 0.4mm | ||
| Hohes Licht: | SL-703FC ATO Blade Fuse Holders | ||
Produktbeschreibung

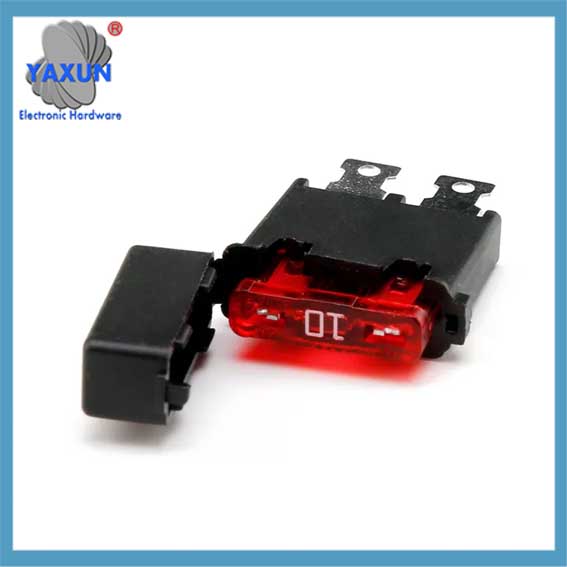

SL-703FC ATO ATC ATU Plug in Blade Fuse Holder 32V 30A Panel Mount Fuse Holder Fuse Block
Produktbeschreibung
For APR, ATC, ATO, ATS Blade Fuses
| Artikel | 703FC Fuse Holder |
| Mouting Style | Panel |
| Max Rating | 30A 32V |
| Body Color | Schwarz |
| Body material | nylon |
| Terminal material | Messing, nickel plated |
| Länge | 21.3mm |
| Height | 25.1mm |
| Dicke | 8mm |
| Terminal hole | 2.2mm Durchmesser |
| Hole distance | 9.2mm |

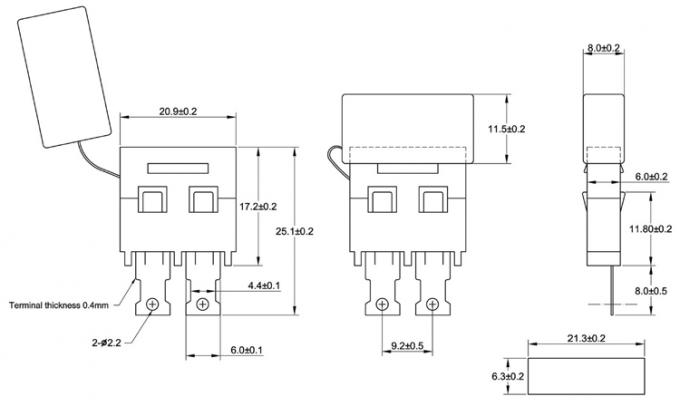

Drawing of SL-703FC ATO ATC ATU Plug in Blade Fuse Holder
Blade Type Fuse Sizes Dimension
Blade Type Fuses
| Größe | Part No. | Dimension L×W×H | Nennstrom |
| Mikro2 | GEEIGNET, ATR | 9.1 × 3.8 × 15.3 mm | 5, 7.5, 10, 15, 20, 25, 30 |
| Mikro3 | ATL | 14.4 × 4.2 × 18.1 mm | 5, 7.5, 10, 15 |
| niedriges Profil | APS, ZU | 10.9 × 3.81 × 8.73 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30 |
| Mini | APM, Geldautomat | 10.9 × 3.6 × 16.3 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A |
| Regulär | APR, ATC, ATO, ATS | 19.1 × 5.1 × 18.5 mm | 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40 |
| Maxi | APX | 29.2 × 8.5 × 34.3 mm | 20, 25, 30, 35, 40, 50, 60, 70, 80, 100, |
Farben & Bewertungen
| Farbe | Aktuelle Bewertung |
| Schwarz | 1A |
| Grau | 2A |
| Violett | 3A |
| Rosa | 4A |
| Bräunen | 5A |
| Braun | 7.5A |
| Rot | 10A |
| Blau | 15A |
| Gelb | 20A |
| Transparent | 25A |
| Grün | 30A |
| Blaugrün | 35A |
| Orange | 40A |
| Rot | 50A |
| Blau | 60A |
| Bernsteinfarben/braun | 70A |
| Transparent | 80A |
| Violett | 100A |
Anwendungen
Automobil, Boot, LKW, SUV, Motorrad, usw.
Standardpaket:
1000Stück pro Beutel
Versandbedingungen:
EXW, DDU, DDP, C&F, FOB
Versandarten:
DHL/UPS/FEDEX Express, Auf dem Luftweg, Auf dem Seeweg
