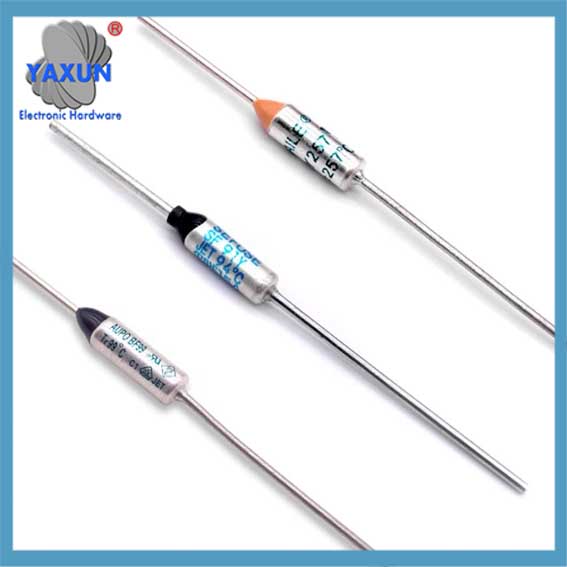

AUPO BF 10A~16A 250V / 125V Metal Thermal Cutoff Fuse
AUPO BF series Thermal Cutoff Fuse products meet the safety test requirements of IEC60691Ed4.0 and GB/T9816.2013, and many models have obtained UL, VDE, CCC, PSE, KC and other safety certifications.
Kategorie: Thermosicherung
Stichworte: Temperatursicherung, Thermoschalter, Thermische Abschaltung, Thermosicherung, Wärmeschutz
AUPO BF series Thermal Cutoff Fuse products meet the safety test requirements of IEC60691Ed4.0 and GB/T9816.2013, and many models have obtained UL, VDE, CCC, PSE, KC and other safety certifications.
What temperature fuse is used for air fryers? Air fryer temperature fuses can use Yabao Electronics AUPO organic temperature fuse (special for air fryer temperature fuse electric heating protection) model BF series products.
hinsetzen (special for air fryer temperature fuse electric heating protection) BF series product electric heating protection:
The temperature fuse is installed in the heating device to prevent the danger caused by abnormal high temperature of the heating device.
Yabao AUPO (special for air fryer temperature fuse electric heating protection) BF series product introduction:
AUPO BF series is a one-time action organic temperature fuse that can prevent air fryer appliances from catching fire due to overheating. The metal shell uses organic thermosensitive materials inside, which can work in high current circuits.
Organic BF series temperature fuse:
When the temperature around the fuse rises to its operating temperature, the temperature sensing block melts, and the spring A is released to push the star-shaped reed away, so that it is out of contact with the A pin, thereby disconnecting the current path and permanently cutting off the line.
Advantages of Yabao AUPO (special for air fryer fuse electric heating protection) BF series products:
1. Independently developed organic formula technology to ensure stable product operation and high precision.
2. Perfect quality management system to ensure high consistency and high reliability of products.
3. Metal shell design has extremely high sensitivity to temperature rise.
4. Suitable for over-temperature protection under 10A-16A circuits.
Working principle of Yabao AUPO (special for air fryer temperature fuse electric heating protection) BF series products:
When the temperature around the fuse rises to its operating temperature, the temperature sensing block melts, and the spring A is released to push the star-shaped reed away, so that it is out of contact with the A pin, thereby disconnecting the current path and permanently cutting off the line.

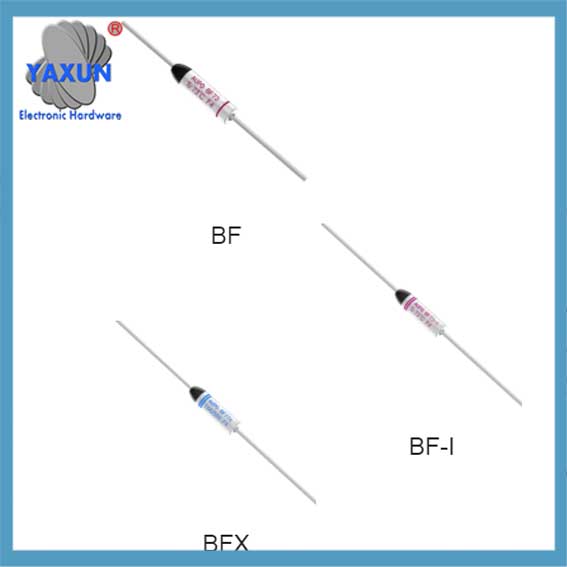

Organic thermal fuse BF series before melting Organic thermal fuse BF series after melting
Yabao AUPO (special for air fryer thermal fuse electric heating protection) BF series products
Application areas:
BF series is widely used in household appliances, such as small household appliances, refrigerators and washing machines, kitchen and bathroom appliances, usw.; automobile “three electrics”; overheating protection of office equipment, usw.
Yabao AUPO (special for air fryer thermal fuse electric heating protection) BF series products Product certification:
BF series products meet the safety test requirements of IEC60691Ed4.0 and GB/T9816.2013, and many models have obtained UL, VDE, CCC, PSE, KC and other safety certifications.
Model No.1 | TF | Fuse
Temperatur |
TH | TM | Tr | Ur |
BF73-I | 73℃ | 70±2℃ | 45℃ | 150℃ | 16A | 125V |
BF77-I | 77℃ | 76+0/-4℃ | 51℃ | 150℃ | 16A | 125V |
BF84-I | 84℃ | 82±2℃ | 58℃ | 150℃ | 16A | 125V |
BF94-I | 94℃ | 91±3℃ | 66℃ | 150℃ | 16A | 125V |
BF99-I | 99℃ | 96±2℃ | 71℃ | 150℃ | 16A | 125V |
BF104-I | 104℃ | 102±2℃ | 79℃ | 150℃ | 16A | 125V |
BF113-I | 113℃ | 109+3/-1℃ | 84℃ | 150℃ | 16A | 125V |
BF117-I | 117℃ | 115±2℃ | 92℃ | 160℃ | 16A | 125V |
BF121-I | 121℃ | 119+2/-3℃ | 94℃ | 160℃ | 16A | 125V |
BF133-I | 133℃ | 129±2℃ | 104℃ | 160℃ | 16A | 125V |
BF142-I | 142℃ | 139+2/-3℃ | 114℃ | 160℃ | 16A | 125V |
BF157-I | 157℃ | 152±2℃ | 127℃ | 172℃ | 16A | 125V |
BF172-I | 172℃ | 169+3/-1℃ | 144℃ | 189℃ | 16A | 125V |
BF184-I | 184℃ | 182+1/-3℃ | 159℃ | 210℃ | 16A | 125V |
BF192-I | 192℃ | 188±3℃ | 170℃ | 250℃ | 16A | 125V |
BF216-I | 216℃ | 214+2/-3℃ | 191℃ | 380℃ | 16A | 125V |
BF229-I | 229℃ | 226+3/-2℃ | 200℃ | 380℃ | 16A | 125V |
BF240-I | 240℃ | 235±3℃ | 200℃ | 300℃ | 16A | 125V |
