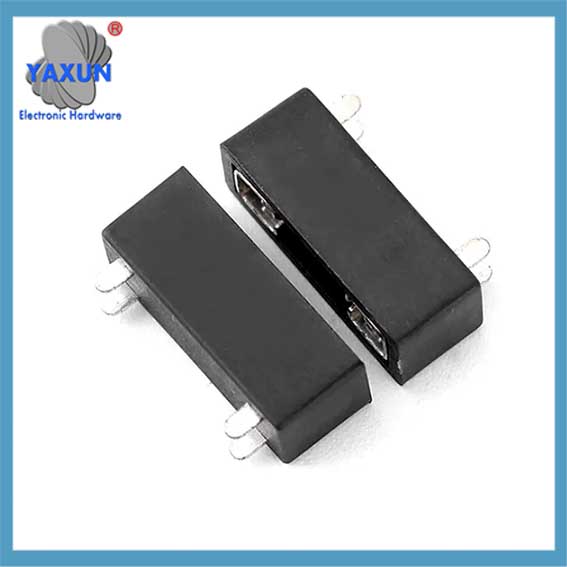

Automotive Blade Fuse Holders OF PCB-mount design
Mini, Standard, and Maxi Blade Fuse versions suit 30, 40, Und 60 A applications, respectively, and are compatible with various Littlefuse and Bussman blade fuses. A 2-in-1 thru-hole mount version for Standard and Mini fuses is also available.
Miniature or Standard Size ATO/ATC Blade Fuse holders incorporate 2 receptacle terminals made from brass with tin over nickel plated finish that are pre-assembled to a UL rated 94V-0 glass filled nylon base. Receptacle contacts hold the fuse securely, assuring positive connections and low contact resistance. Mini, Standard, and Maxi Blade Fuse versions suit 30, 40, Und 60 A applications, respectively, and are compatible with various Littlefuse and Bussman blade fuses. A 2-in-1 thru-hole mount version for Standard and Mini fuses is also available.
Blade Fuse Holders for Miniature or Standard Size ATO/ATC Applications

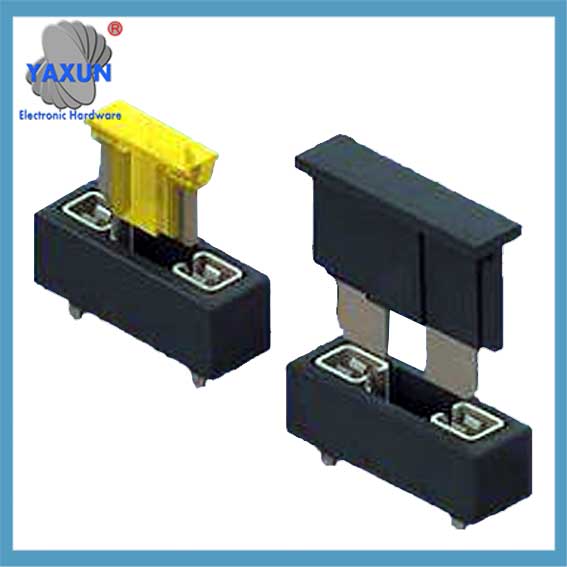

Now available from YAXUN automotive blade fuse holders that are PCB mountable for reliable connection & security. Pre-assembled Blade fuse holders to accomodate mini, standard and maxi blade fuse sizes. Easily mounted and soldered to the PCB,the mini size holder is compatible with Littelfuse ATO 297 and Bussman ATM automotive blade fuses. The standard size holder is compatible with Littelfuse ATO 257 and Bussman ATC automotive blade fuses. The maxi size holder is compatible with Litelfuse Maxi 297 and Bussman Max series fuses. holders mount vertically on the PCB. Blade Fuse holders incorporate two (2) individual receptacle terminals made from brass with a Tin over Nickel plated finish that are pre-assembled to a UL rated 94V-0 glass filled Nylon base. The Mini Blade Fuse holder is suitable for 30 Ampere applications. The Standard Blade Fuse holder is suitable for 40 Ampere applications. the Maxi Blade Fuse holder is suitable for 60 Ampere applications and all will withstand shock and vibration. Receptacle contacts hold the fuse securely, assuring positive connections and low contact resistance. A new 2 In 1 Blade fuse holder is also available to accomodate both Standard and Low Profile Mini style Automotive Blade Fuses.
Name: | Mini ATO Fuse Holder, Fuse Clip | Mounting: | PCB |
Ur: | 250V | Und: | 30A |
Applied To: | Low-profile Mini ATO Blade Fuses | RoHS Compliant: | Yes |
Body Dimension: | 19.8*6.8*7.4mm | Body Material: | PA66 UL94V-0 |
Terminal Material: | Tinned Brass | ||
Hohes Licht: | Mini ATO Amp Blade Fuse Holders |
Produktbeschreibung

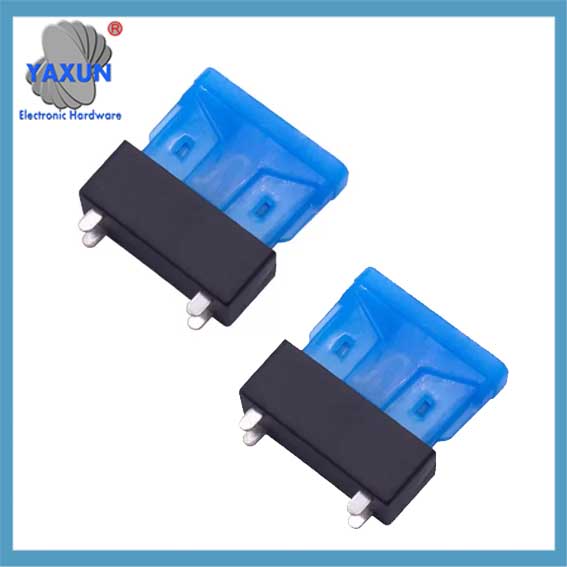

250V 32V 30A PCB Mount Fuse Holder For Low-Profile ATT Mini Standard ATO Bladed Type Car Fuse Clip With 4 Pins
Produktbeschreibung
For Low-profile Mini and Standard blade fuses
PA66 94V-0 insulation body; Tin plated brass terminals
Rated 30A 250Vac
Contact Resistance: <50mQ
Insertion & Extraction Force 2~5kg.
Dielectric Strength: >1000Vac
lnsulation Resistance: >100MΩ @500VDC

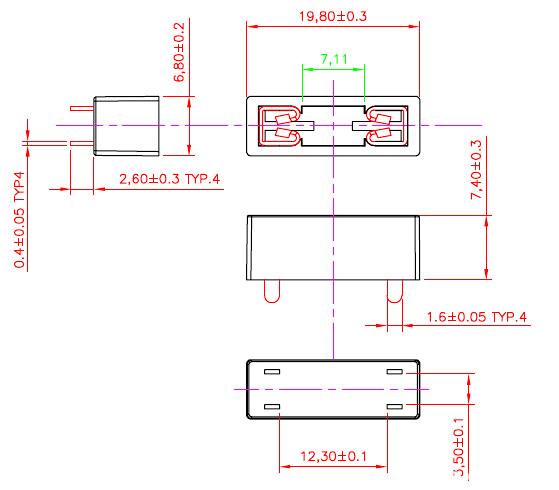

Name | Blade Fuse Holder |
Mounting | PCB |
Color | black |
Length | 19.8mm |
Width | 6.8mm |
Height | 7.4mm |
Terminal Width | 1.6mm |
Terminal Thickness | 0.4mm |
Blade size | Blade group | Dimensions L × W × H | Common ratings (maximum current) |
LP-Mini | APS, ATT | 10.9 × 3.81 × 8.73 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30 |
Mini | APM, ATM | 10.9 × 3.6 × 16.3 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A |
Regular | APR, ATC, ATO, ATS | 19.1 × 5.1 × 18.5 mm | 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40 |
Colors & Ratings
Color | Current rating |
Black | 1A |
Grey | 2A |
Violet | 3A |
Pink | 4A |
Tan | 5A |
Brown | 7.5A |
Red | 10A |
Blue | 15A |
Yellow | 20A |
Transparent | 25A |
Green | 30A |
Blue-green | 35A |
Orange | 40A |
Incoterm:
EXW, DDU, DDP, C&F, FOB
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Selection of the Fuse and Holder Solution
The first step is to answer the following questions:
Will the fuse need to accessible for replacement?
How often will the fuse need to be replaced?
Should the end customer of the appliance have access to change the fuse?
Should the fuse only be accessible from outside the appliance?
How much is available to spend on safety and reliability?
