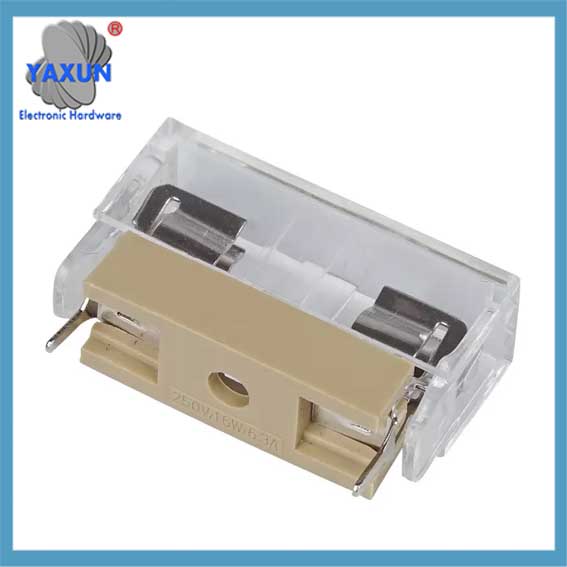

BLX-A Fuse Holder PCB Mount 5mm x 20mm fuse PTF-15 with Transparent Cover
Kategorie: Sicherungshalter für Leiterplattenmontage
Stichworte: Sicherungskastenhalter, Sicherungshalter für Leiterplattenmontage

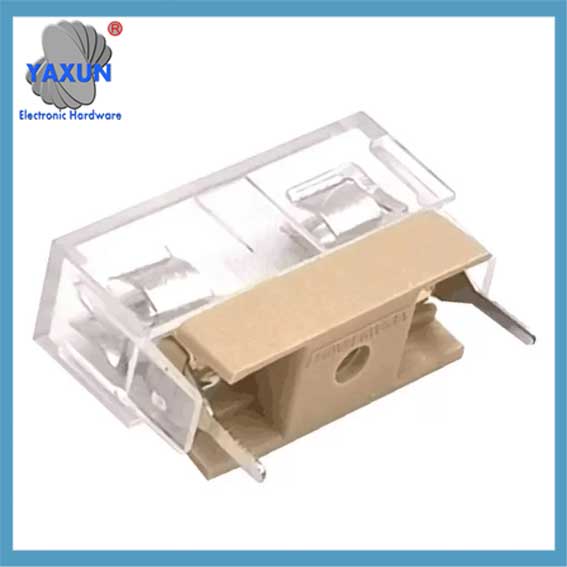

Fuse Holder PCB Mount BLX-A Type 5mm x 20mm 15A/125v 10A/250VSolder Holder for car, bike etc. 125v Solder Holder PCB Mount 5mm X 20mm Fuse Block BLX-A Fuse Holder 10A/250V Voltage Rating: 125v-250v;
Fuse holder socket pcb mount 5mm X 20mm; Current Rating: 5-15 Ampere; Size: 5mm X 20mm; Operating Temperature: -10°C~+70°C
Item Name: | PTF-15 Fuse Holder | Mount Type: | PCB Mount |
Voltage Rating: | 250 Volts | Current Rating: | 6.3 Amp |
Dimension: | 27×9.2 Mm | Pin Distance: | 22.6 Mm |
Applied To: | 5.2×20 Mm Fuse | RoHS Compliant: | Yes |
Body Material: | PBT | Terminal Material: | Nickel Plated Brass |
Hohes Licht: | 9.2mm Yellow Fuse Holder, PCB 9.2mm Yellow Fuse Holder, PTF 9.2mm Yellow Fuse Holder |
Produktbeschreibung
250V 6.3A UL VDE Fuse Holder 22.6mm Pins 5×20 PCB Mount PTF-15 Fuse Block Yellow Body Transparent Cover
Produktbeschreibung
Fuses are available
Item | PTF-15 Fuse Holder PCB mount |
Rating | 6.3Amp 250Volts |
Color | yellow |
Body | PBT |
Terminal | nickel plated brass |
Length | 27mm |
Width | 9.2mm |
Height | 20mm |
Fuse Block for 5x20mm Fuses
Electrical Characteristics:
Transparent Cover
Nominal Current & Voltage:6.3A 250V
Operating Power:1.6W
Contact Resistance: Max 5mΩ
lnsulation Resistance: Min100mΩ
Dielectric Strength: Min 3000Vac/60sec.
This 5×20 pcb mount fuse holders are compatible 5x20mm glass and ceramic fuses for overcurrent protection in electronics equipment, appliances, and lighting circuits. They’re used with glass fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits. They are easy to install on the printed circuit boards.
Drawing of the PTF-15 fuse holder
Please allow 1-3mm tolerance due to manual measurement.
