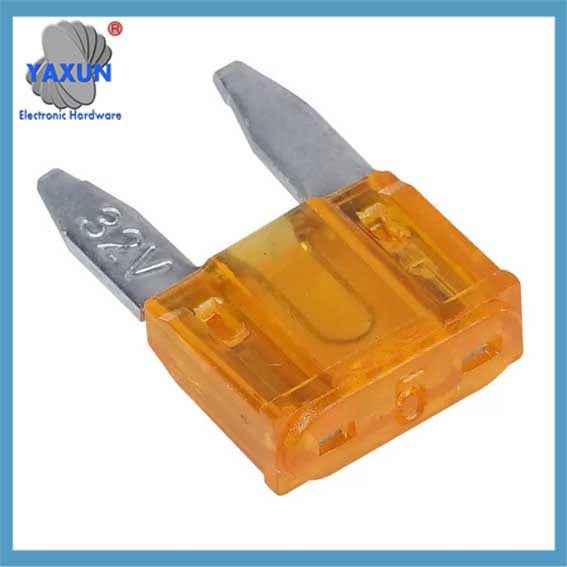

Car Truck ATM Mini Blade Fuse Kit (2A 3A 5A 7.5A 10A 25A 30A 35A)

Mini Blade Fuse commonly used in automobiles includes high current fuses and medium and low current ATM fuses. Allgemein, medium and low current ATM fuses are more accessible. Medium and low current fuses can be roughly divided into chip fuses (including automatic fuse box mini fuses), plug-in fuses, screw-in fuses, tube fuse box flat ATM fuses. Darunter, we can access medium ATO or small fast-blow chip fuses. Chip fuses can carry small currents and short-time pulse currents, such as headlight circuits, rear glass defrosting, usw.

The international standard for the color of automotive chip ATM fuses: 2A gray, 3A purple, 4A pink, 5A orange, 7.5A brown, 10A red, 15A blue, 20A yellow, 25A transparent colorless, 30A green and 40A dark orange. According to the different colors, the size of different amperes can be clearly distinguished.

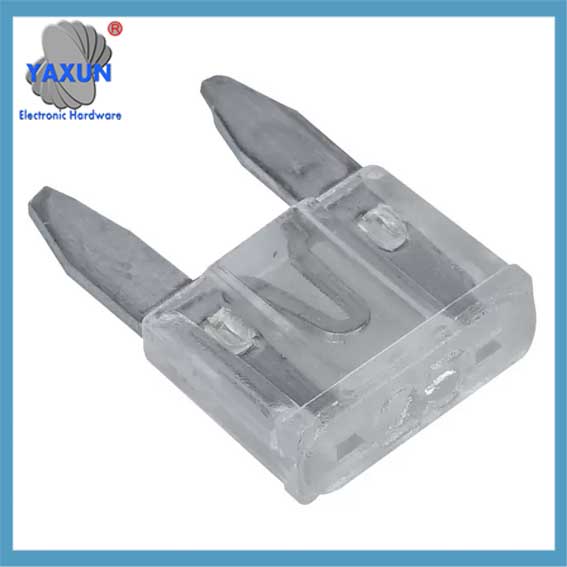

100 Piece Automotive Mini ATM Blade Fuse Assortment Kit

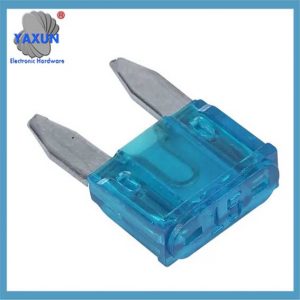

Listed fast-acting miniature blade fuses for automotive and low-voltage

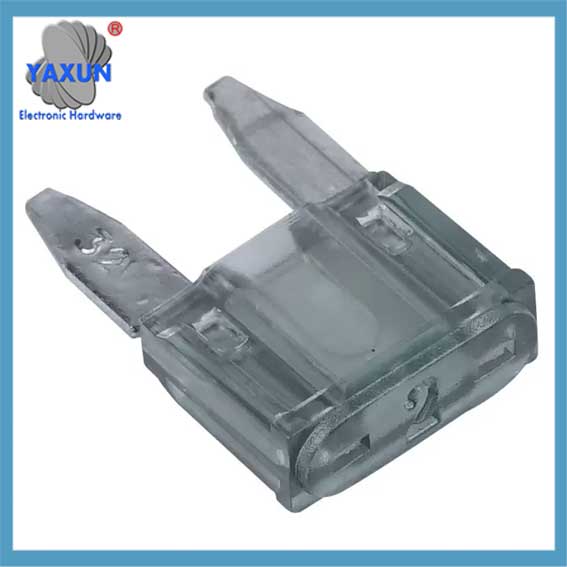

Plug in Mini Car Fuses 10A ATM Blade Fuse

The conductor in the chip fuse is made of a metal similar to solder, which has a lower melting point than ordinary wires. The size of the conductor must be calibrated very accurately so that when the rated current is reached, enough heat can be generated to melt the conductor and disconnect the circuit. Fuses have two important working parameters, one is the working voltage and the other is the rated current. Car owners should choose according to the voltage and current in the circuit when purchasing or replacing.

Produktbeschreibung

Artikelname:	Mini Blade Fuse	Teile-Nr.:	AB11
Größe:	11mm	Montageart:	Plug-in
Unterbrechende Bewertung:	1000A @ 32 VDC	Hausmaterial:	PC
Schmelzmaterial:	Zinc Alloy	Nennspannung:	32In DC
Stromstärke: 0,1 A bis 20 Ag:	2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A	UL-gelistet:	NEIN
RoHS-konform:	Ja	Halogenfrei:	Ja
MPQ:	1000Stück pro Beutel	Betriebstemp:	-40˚C To +105˚C
Hohes Licht:	11mm Mini Car Fuses, 10A Mini Car Fuses, ATM Blade Fuse

Produktbeschreibung

Auto APM ATM Blade Fuse Mini Car Fuse 2A 3A 5A 7.5A 10A 15A 20A 25A 30A 35A

Easily identified by their color-coded plastic housings, and the marked amp rating figures on the top

Used for cars and trucks, It can be mounted in fuse blocks, in-line fuse holders, or fuse clips

Blade fuse specification:

Artikelname:	Mini Car Blade Fuse
Unterbrechende Bewertung:	1000A @32VDC
Aktuelle Bewertung	2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A
Nennspannung:	32 VDC
Component Level Temperature Range:	-40°C to +105°C
System Level Temperature Range:	-40°C to +85*C
Terminalmaterial:	Zinklegierung
Housing Material:	PC
Standards:	SAE J1284,ISO 8820-3

Time-Current Characteristics

% of Rating	Aktuelle Bewertung	Opening Time
100	35A & 40A	>360000S
110	1A-30A	>360000S
135	1A&2A	350ms~ 600s
	3A-40A	0.750s~600s
160	1A-40A	250ms~50s
200	1A&2A	100ms~5.0s
	3A-40A	0.150s~5.0s
350	1A&2A	20ms~500ms
	3A-40A	80ms~500ms
600	1A-30A	<100ms
	35A & 40A	<150ms
