SPST-NO/NC Bimetall-Thermoschalter Zu den Anwendungen gehören Elektromotoren, Heizung, Transformer, Thermospulen, Elektronik, HVAC, und weiße Ware. China Custom Limit Snap Bimetall-Thermoschalter (250V. 10a / 125in 16a) ist ein Temperaturfühler, der aus einer geformten 1/2'' oder 3/4'' großen Bimetallscheibe besteht, die bei einer voreingestellten Temperatur „einrastet“.. YAXUN KSD9700, ST-22, TB02 Series Bimetal Snap-Action Temperature Switches are based on a bimetal snap disc two-contact system with response sensitivity to a combination of temperature and current. The functions of these switches include thermal motor protection, temperature limiting, and thermal cut-off. The series features high power ratings and no vibrational noise, with availability in normally closed or normally open configurations. The KSD302/17AM/6ap/S06/S01 Series switches are sealed so they can be used in vacuum-impregnated applications with various varnishes and glues. The rated maximum currents are 6.3A (type T12) with maximum switching currents of 60A. A low tolerance of ±1K is possible with the T10 models. KSD302 Series Bimetal Snap-Action Temperature Switches are available in a wide range of packaging, mounting, and design options and can be wired in twin or triplet configurations.

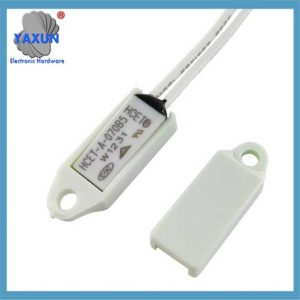

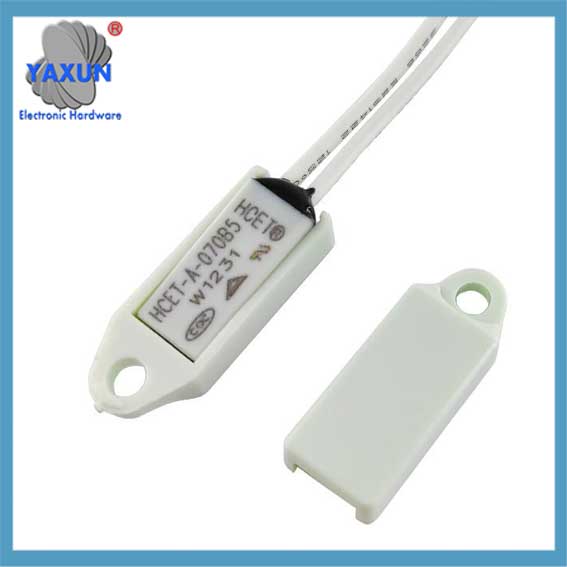

Limit Snap Thermal Switch THERMOSTAT 37DEG C SPST-NC Senser

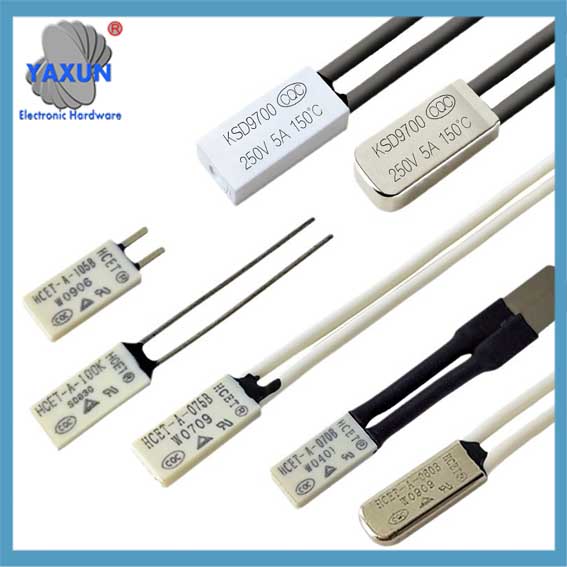

Bimetall-Thermoschaltersonde zum Schutz vor Motorüberhitzung

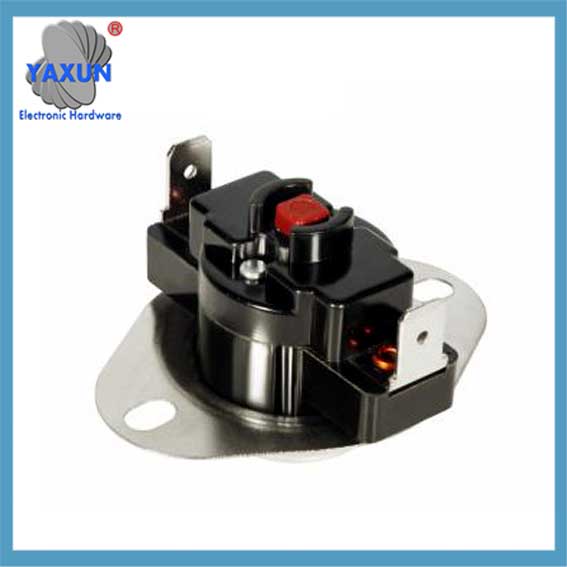

Manueller Reset-Scheiben-Temperaturschalter, Bimetalltechnik, 25 A ~ 60 Ampere Thermoschalter

KSD301, KSD302, KSD303 Series Limit Snap Thermal Switch
Anwendungen
⑴ sterilizer,
⑵ dishwasher,
⑶ dryer,
⑷ microwave,
⑸ drinking fountains,
⑹ electric kettle,
⑺ office equipment,
⑻ coffee maker,
⑼ sandwich toaster,
⑽ car seat heaters, automobile antifreeze, Elektromocher, Kühlschrank, Klimaanlage, laminator and other electric appliances.

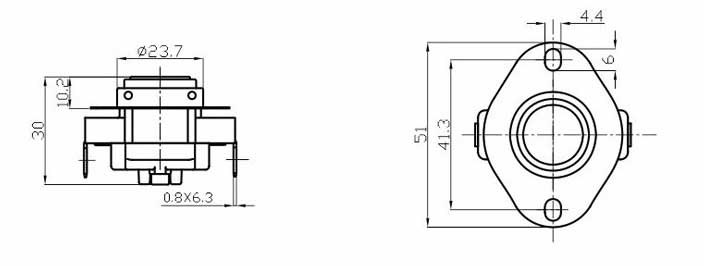

Manual Reset Disc Temperature Switch Bimetal Thermal Switch installation dimensions

●KSD301, KSD302, KSD303 series Limit Snap Thermal Switch technical parameters
⑴ elektrische Parameter: 1) CQC, TÜV, UL, CUL AC250V 50 ~60Hz 5A / 10A / 16A (ohmsche Last)
2) UL AC125V 50Hz 16A (ohmsche Last),
Temperature Performance
Normalerweise geschlossen, operating temperature：170±3℃ ；Temperatur zurücksetzen: ON: 155±5.
⑵ Betriebstemperaturbereich: 0-230 ℃ (Optional), Temperaturgenauigkeit: ± 2 ± 3 ± 5 ± 10 ℃
⑶ reply and action temperature difference: 8 ~ 100 ℃ (Optional)
⑷ Verbindung: Steckklemmen 250 # (biegen 0 ~ 90 ° optional); Steckklemmen 187 # (biegen 0 ~ 90 ° optional thickness 0.5,0.8mm optional)
⑸ Leben: ≥ 100,000 mal
⑹ elektrische Festigkeit: Wechselstrom 50 Hz 1800 V dauerte 1 Minute, kein Flackern, keine Panne
⑺ contact resistance: ≤50mΩ
⑻ Isolationswiderstand: ≥100 MΩ
⑼ Kontaktformular: Normalerweise geschlossener Typ: Temperaturanstieg, Kontakte geöffnet, die Temperatur sinkt, Kontakt verbunden;
Normalerweise offener Typ: Temperaturanstieg, Kontakt verbunden, die Temperatur sinkt, the contact is open
⑽ Schalenschutzgrad: IP00
Installation: KSD301-Serie Installationsring für gewöhnliche Aktivitäten, Ring installieren Sie kleine runde Aktivitäten, Installation eines Flachbildschirm-Aktivrings, ordinary large aluminum cover with mounting holes, with mounting holes lengthened aluminum cover.

●KSD301, KSD302, KSD303 series Limit Snap Thermal Switch competitive advantage
⑴ stabile Leistung
⑵ hohe Präzision
⑶ kleine Größe, Leicht
⑷ hohe Zuverlässigkeit, langes Leben
⑸ dry worries small radio
⑹ no arc

●KSD301, KSD302, KSD303 series Limit Snap Thermal Switch Notice
⑴ grounding: The thermostat metal cover metal parts connected to the equipment grounding.
⑵ when using contact temperature installation should be charged with snapping the metal to cover up the installation of surface equipment, to ensure that the temperature effect, should be coated with thermal grease or other properties like heat transfer medium in surface temperature.
⑶ not install when the top cover surface collapsed, loose or deformed, so as not to affect performance.
⑷ not allow liquid to penetrate the internal temperature, not cause the shell cracks, not free to change the shape of the external terminals.
⑸ product in less than 5A current of the circuit used, should be selected cross-section of 0.5 5-1㎜2 copper wires; not more than 10A current in the circuit, chose the copper wires cross-section 0.75-1.5㎜2 .
⑹ product should be less than 90% relative humidity, ambient temperature below 40 ℃ ventilated, sauber, trocken, non-corrosive gases stored in the warehouse.
⑺ use can not bend the terminals, otherwise it will affect the reliability of the electrical connections.

KSD301 OPEN TEMP&Temperatur zurücksetzen

CODE	Offene Temperatur	Temperatur zurücksetzen	CODE	Offene Temperatur	Temperatur zurücksetzen
45	45± 5 ° C	≥33 ° C.	140	140± 5 ° C	100± 15 ° C.
50	50± 5 ° C	≥35 ° C.	145	145± 5 ° C	100± 15 ° C.
55	55± 5 ° C	42± 6 ° C.	150	150± 5 ° C	105± 15 ° C.
60	60± 5 ° C	45± 8 ° C.	155	155± 5 ° C	110± 15 ° C.
65	65± 5 ° C	48± 10 ° C.	160	160± 5 ° C	115± 15 ° C.
70	70± 5 ° C	50± 12 ° C.	165	165± 5 ° C	120± 15 ° C.
75	75± 5 ° C	53± 14 ° C.	170	170±3°C	155± 5 ° C
80	80± 5 ° C	55± 15 ° C.	175	175± 5 ° C	130± 15 ° C.
85	85± 5 ° C	60± 15 ° C.	180	180± 5 ° C	135± 15 ° C.
90	90± 5 ° C	65± 15 ° C.	185	185± 5 ° C	140± 15 ° C.
95	95± 5 ° C	70± 15 ° C.	190	190± 5 ° C	145± 15 ° C.
100	100± 5 ° C	70± 15 ° C.	195	195± 5 ° C	150± 15 ° C.
105	105± 5 ° C	75± 15 ° C.	200	200± 5 ° C	155± 15 ° C.
110	110± 5 ° C	75± 15 ° C.	205	205± 5 ° C	160± 15 ° C.
115	115± 5 ° C	80± 15 ° C.	210	210± 5 ° C	165± 15 ° C.
120	120± 5 ° C	85± 15 ° C.	215	215± 5 ° C	170± 15 ° C.
125	125± 5 ° C	85± 15 ° C.	220	220± 5 ° C	175± 15 ° C.
130	130± 5 ° C	90± 15 ° C.	225	225± 5 ° C	180± 15 ° C.
135	135± 5 ° C	95± 15 ° C.	230	230± 5 ° C	185± 15 ° C.
