China Custom Littelfuse Automotive Blade Fuses ATO 32V

ATO/ATC blade fuses are standard size and the most common type of fuse for automotive and marine applications, ATO Series Blade Fuses part specifications and more from the Littelfuse Automotive Aftermarket Products selection of Fuses.

Kleine Sicherung 0287 Standard Car Fuses Automotive Fuses ATO ATOF 32V Blade Fuse for RV/Truck/SUV

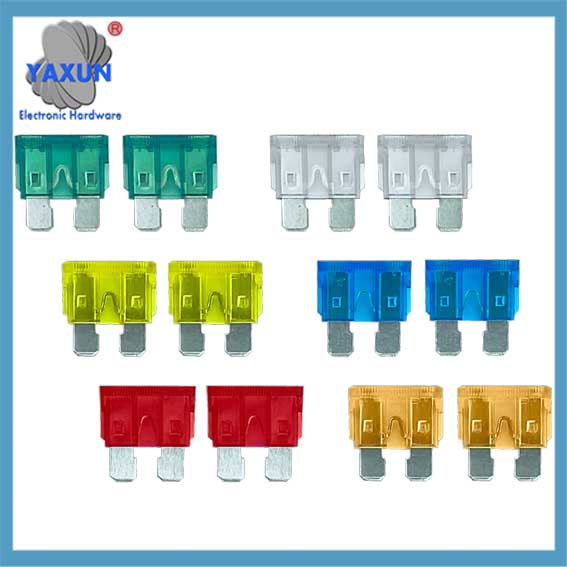

ATC ATO Auto Car Truck Regular Blade Fuse Kit Replacement Parts

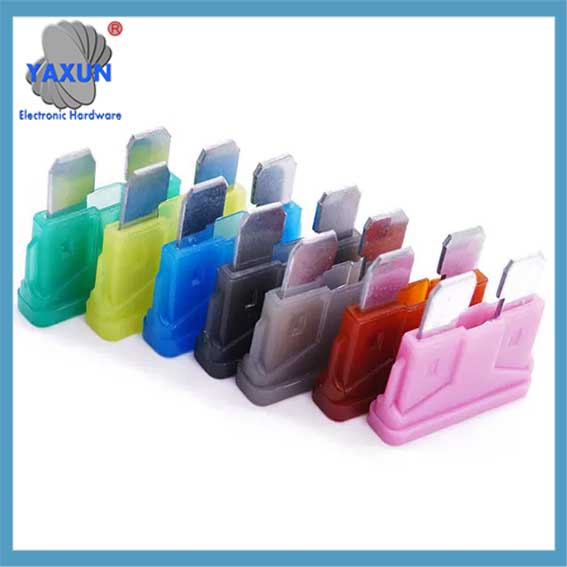

ATC ATO Standard Blade Fuse 35A 32V for Automotive SUV Car Truck Boat Marine

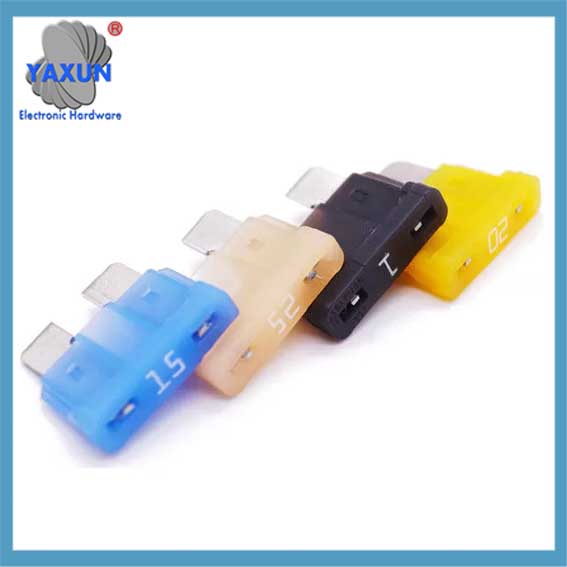

0287010.PXCN 10A AC 32V DC Fuse Automotive Holder Blade ATO – ATC

Produktmerkmale

Produktname	Kleine Sicherung 287 Serie 0287 ATOF ATO Automotive Car Auto Standard Blade Fuse
Material	nylon & Zinklegierung
Volt-Bewertung	32Vdc
Verstärkerbewertung	1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A
Blow Types	standard
Environmental	Lead and Ph free
Package	2000pcs per box

Easily identified by their color-coded plastic housings, and the marked amp rating figures on the top

Used for cars and trucks, It can be mounted in fuse blocks, in-line fuse holders, or fuse clips

0287 series blade fuse specification:

Spezifikation	ATOF (Verzinnt)	ATO Ag (Silver Plated)
nterrupting Rating:	1000A @ 32 VDC	1000A @ 32 VDC
Nennspannung:	32 VDC	32 VDC
*Component Level Temperature Range:	-40°C to +105°C	-40°C to +125°C
*System Level Temperature Range:	-40°C to +85*C	-40°C to +105°C
105°C and 85°C are typical system level temperature requirements.
Terminals:	Sn plated zinc aloy	Ag plated zinc alloy
Housing Material:	PA66	PA66
Complies with:	SAE J1284,ISO 8820-3	SAE J1284,ISO 8820-3
UL-gelistet:	File AU1410	File AU1410
CSA Certified:	File No.29862	Datei-Nr. 29862

Ordering Information

Teilenummer	Package Size
ATOFO (Verzinnt)
02870x0x. PXCN	2000
0287xox.U	500
0287xox.H	100
0287x00x.L	50
ATOFO Ag (Silver Plated)
02870ox.PXS	2000

Time-Current Characteristics

% of Rating	Aktuelle Bewertung	Opening Time Min / Max (S)
100	35A & 40A	360,000s/-
110	1A-30A	360.000s/-
135	1A&2A	350 ms / 600S
	3A-40A	0.750S / 600S
160	1A-40A	250 ms/ 50s
200	1A&2A	100 ms/5.0s
	3A-40A	0.150s/5.0s
350	1A&2A	20ms/500ms
	3A-40A	80ms/500ms
600	1A-30A	-/ 100 ms
	35A & 40A	-/ 150 ms

Teilenummer

Teilenummer	Aktuelle Bewertung (A)	Housing Material Color	Typ. Voltage Drop (mV)	Cold Resistance (mΩ)	I2t(A2s)
0287001._	1	Schwarz	176	123	0.4
0287002._	2	grey	141	53.5	1.4
0287003._	3	purple	137	31.1	7.4
0287004._	4	pink	136	22.8	14
0287005._	5	tan	128	17.85	26
028707.5_	7.5	brown	116	10.91	60
0287010._	10	red	109	7.70	115
0287015._	15	blue	102	4.80	340
0287020._	20	yellow	98	3.38	520
0287025._	25	white	92	2.52	1080
0287030._	30	light green	84	1.97	1510
0287035._	35	green	87	1.61	2280
0287040._	40	orange	96	1.44	3310
