China Custom MIDI / MINI ADS Bolt Down Fuse 20-200A 32/48/72V

China Factory Custom Bolt-On fuses, MIDI/MINI ADS Bolt On Fuse 20-200A 32/48/72V. 125A. 150A. 80A. 70A. 30A. 50A. 100A. 40A. 200A. 60A. 125A. often used in the automotive industry, are the solution for superior battery and alternator circuit protection.

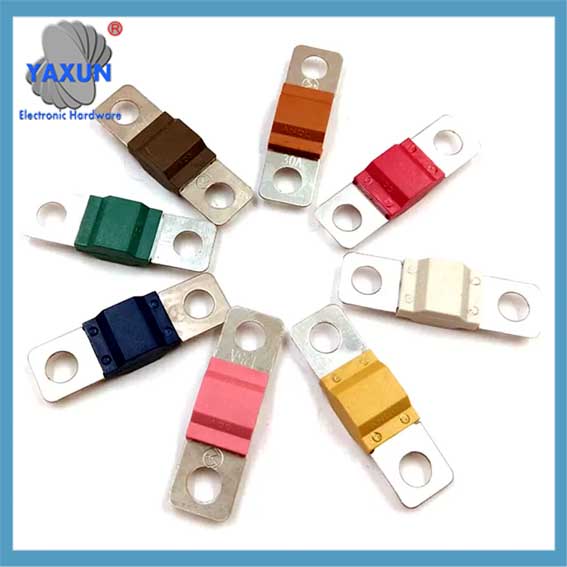

ADS Bolt on Fuses 23A-200A (Round hole type) for Cars, LKWs, Vehicles, Busse

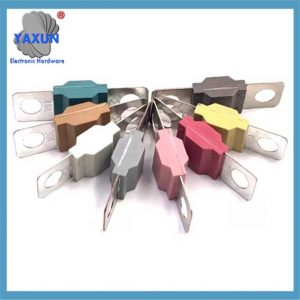

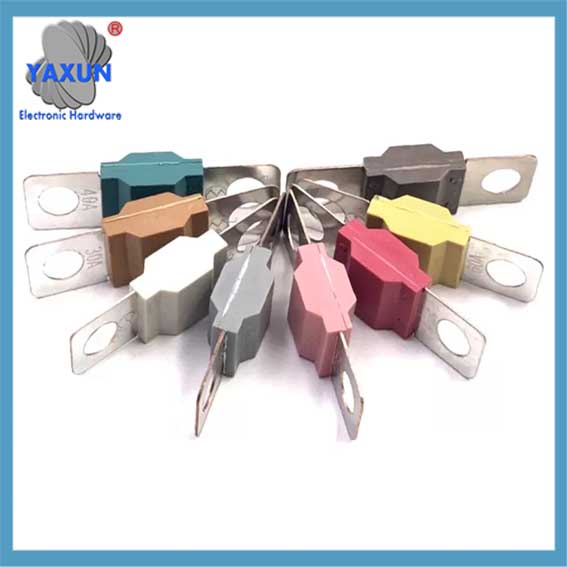

ADS Bolt Down Fuses Automotive ANL 50 Amp Midi Fuse 41mm

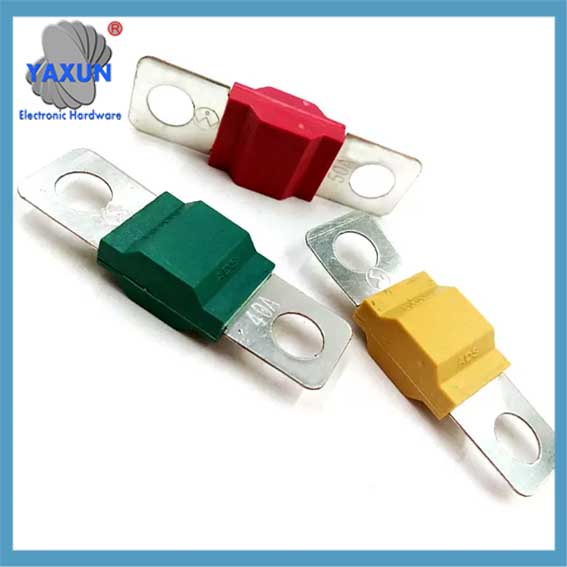

A Plus Parts House Black Style Bolt-Down Fuses 200A 498 Series MIDI 32V ANS-S Fuse

Artikelname:	MIDI/MINI ADS Bolt Down Fuse	Teile-Nr.:	ADS
Total Length:	41mm	Hole Distance:	30mm
Hole Diameter:	6mm	Montageart:	Bolt Down
Unterbrechende Bewertung:	2000A @ 32 VDC	Shell Material:	PC
Terminalmaterial:	Nickel Plated Zinc Alloy	Ur:	32In DC
Und:	23A 30A 40A 50A 60A 70A 80A 100A 125A 150A 200A	RoHS-konform:	Ja
Halogenfrei:	Ja	MPQ:	100 Pcs / Bag
Betriebstemp:	-40˚C To +105˚C	Standard:	ISO8820-5
Hohes Licht:	41mm Bolt Down Fuses, ANL Bolt Down Fuses, 50 Amp Midi Fuse

Produktbeschreibung

ADS 6mm Hole Automotive Midi Fuse Mini ANL Bolt Fuse 23A 30A 40A 50A 60A 70A 80A 100A 125A 150A 175A 200A

Produktbeschreibung

Name	ADS Midi Fuse
Typ	Bolt-down
Nennspannung	32Vdc
Aktuelle Bewertung	23A 30A 40A 50A 60A 70A 80A 100A 125A 150A 200A
Blow Types	Medium
Environmental	Lead and Ph free
Paket	100Stück pro Beutel

Suitable for new energy electric vehicles, forklifts, motor controllers, charging piles,

rechargeable motors, ships and other low voltage electrical appliances.

This fuse is ideal for battery and alternator protection application and other heavy

gauge cables requiring ultra-high current protection.

Spezifikation	Parameter
Interrupting Capability:	2000A @ 32 VDC
Nennspannung:	32 VDC
Operation Temperature:	-40°C to +105°C
Terminals:	nickel plated zinc alloy
Hausmaterial:	PC
Complies with:	IS08820-5

Blowing Performance

TESTING CURRENT	BLOW TIME LIMIT
100%	100Hr. minimum
110%	4Hr. minimum
150%	90s~ 3600s
200%(≥150A)	1S — 15S
200%(<150A)	3S — 100S
300%	0.3s-3s
350%(≥150A)	0.3s-5s
500%(<150A)	0.1s~1s
600%(≥150A)	0.1s~1s

Drawing of MIDI/ANS fuses

Elektrische Bewertung

Catalog No.	Nennspannung	Ampere Rating	Cold Resistance
ADS-B23	32V	23A	2.25mΩ
ADS-B30	32V	30A	1.80mΩ
ADS-B40	32V	40A	1.55mΩ
ADS-B50	32V	50A	1.25mΩ
ADS-B60	32V	60A	1.1mΩ
ADS-B70	32V	70A	0.95mΩ
ADS-B80	32V	80A	0.90mΩ
ADS-B100	32V	100A	0.70mΩ
ADS-B125	32V	125A	0.50mΩ
ADS-B150	32V	150A	0.40mΩ
ADS-B175	32V	175A	0.30mΩ
ADS-B200	32V	200A	0.20mΩ
