China-Lieferant UL, Kleine Sicherungssätze für TÜV-PICO-Sicherungsersatz
PICO-Widerstandssicherung bezieht sich auf ein Produkt mit einem ähnlichen Aussehen wie ein Widerstand. Some products use color rings to distinguish the current size, so they are named resistor fuses, also known as PICO Bi Gao fuses.
Darunter, the appearance of 2*6 mm and 3*9 mm resistor fuses uses color rings to distinguish the current size. 125V/250V.
According to the fusing characteristics, it can be divided into: fast-blow resistor fuses and slow-blow resistor fuses. The products have obtained certifications such as UL CSA ROHS. Most of these products are produced in braided tapes.

2.4X7 Fast-Blow Micro Fuse Dimensions Chart

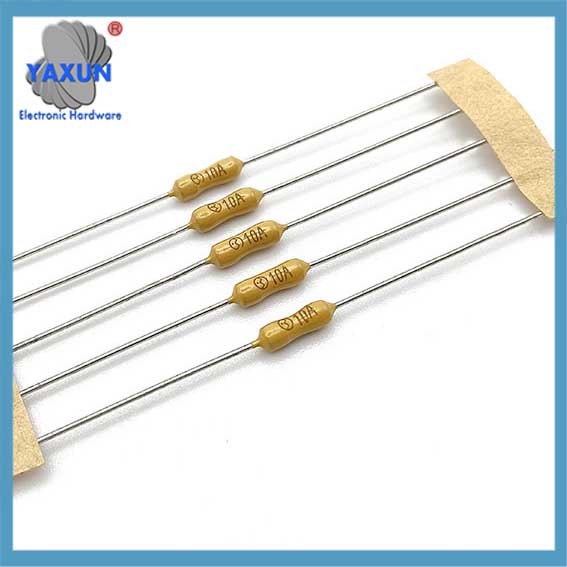

![]() 2.4 X 7 mm 1–4 A 125 V PICO-Sicherungsäquivalent, SLOW BLOW PACK |

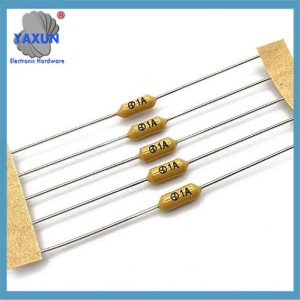

![]() PICO Fuses – Axial Radial Thru Hole Fuses 160mA • 250V • Ø 2.4mm x 7mm |

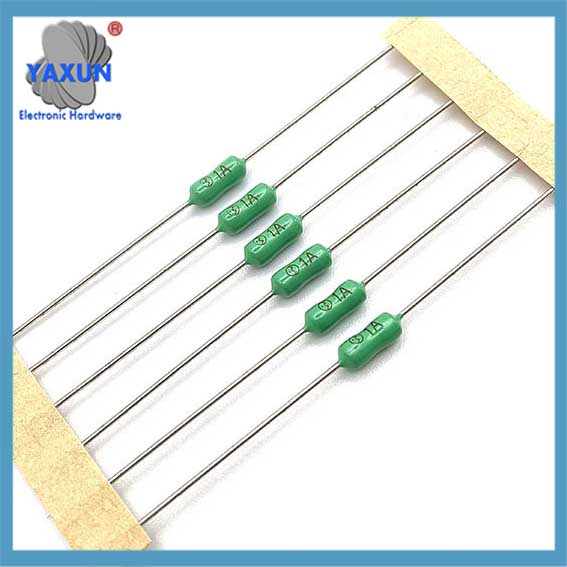

![]() LITTELFUSE 0251004.MXL PICO-SICHERUNG 4 AMP 125V FAST BLOW, GEKAPSELT |
251/253 Number code 62mA-10A/125V, 12/15A/23V/Facting acting D2.4x7mm UR/CSA/PSE
263 Number code 62mA-5A/125V/Facting acting D2.4x7mm UR/CSA
471 Number code 500mA-5A/125V/Facting acting D2.4x7mm UR/CSA/PSE
473 Number code 375mA-7A/125V/Facting acting D2.4x7mm UR/CSA/PSE
S3090 Number code, Grass green color 1A-5A/125V/250V, Fast-acting D3xL9xH59 ROHS/CCC/CE
S2560 Number code, Grass green color 1A-3A/125V/250V, Fast-acting D2.5xL6xH50 ROHS/CCC/CE
S2560B Number code, Grass green color 1A-3A/125V/250V, Fast-acting D2.5xL6xH80 ROHS/CCC/CE
R3090 Color code, Grey color 2A-5A/125V/250V, Fast-acting D3xL9xH59 ROHS/CCC/CE
R2560 Color code, Grey color 1A-3A/125V/250V, Fast-acting D2.5xL6xH50 ROHS/CCC/CE
R2560B Color code, Grey color 1A-3A/125V/250V, Fast-acting D2.5xL6xH80 ROHS/CCC/CE
C3090 Color code, Brown color 2A-5A/125V/250V, Fast-acting D3xL9xH59 ROHS/CCC/CE
C2560 Color code, Brown color 1A-3A/125V/250V, Fast-acting D2.5xL6xH50 ROHS/CCC/CE
C2560B Color code, Brown color 1A-3A/125V/250V, Fast-acting D2.5xL6xH80 ROHS/CCC/CE
W3090 Color code, Blue color 2.5A-5A/125V/250V, Fast-acting D3xL9xH59 ROHS/CCC/CE
W2560 Color code, Blue color 0.5A-3A/125V/250V, Fast-acting D2.5xL6xH50 ROHS/CCC/CE
W2560B Color code, Blue color 0.5A-3A/125V/250V, Fast-acting D2.5xL6xH80 ROHS/CCC/CE
2.4x7mm,F (62mA-10A/125V;12A-15A/32V;62mA-5A/250V); T 375mA-7A/125V
UL/CSA Approved
