Connect 30441 Auto Low Profile Mini Auto Blade Fuse
Connect Consumables 30441 ow profile mini blade (also known as micro blade) fuses, designed to save space and weight for modern vehicles. Item dimensions L x W x H · 5 X 110 X 135 millimetres ; Material. Polycarbonat ; Specification met.
Low-profile mini blade fuse 32V 2A 3A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A ATM-LP APS ATT Low Profile Fuse

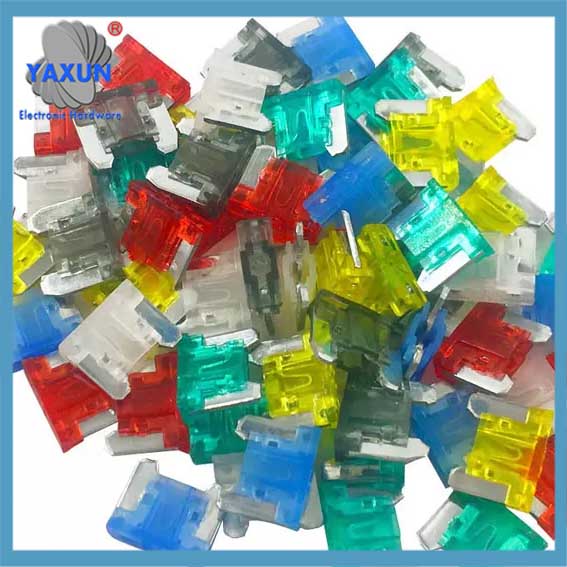

 Connect 30441 Zinc Alloy Mini Blade Fuse 32V 35A APS 11x10mm |
 Low Profile Mini Blade Fuse 15-amp Blue Pack 25 Connect 30441 kit |

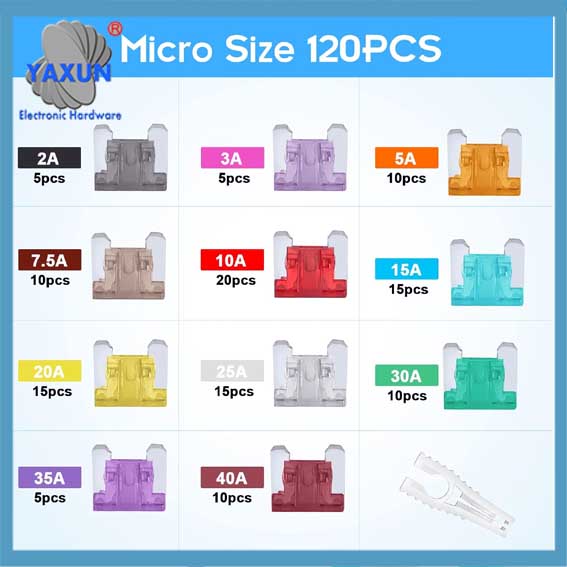

 Micro Blade Fuses Automotive- Replacement Fuses Assortment Kit for Car RV Truck Motor |
Produktmerkmale
| Produktname | Low-profile mini blade fuse |
| Material | PC & Zinklegierung |
| Nennspannung | 32Vdc |
| Aktuelle Bewertung | 2A 3A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A |
| Schlagtyp | standard |
| Package | 1000Stück pro Beutel |
Spezifikation:
| Spezifikation | Parameters |
| Interrupting Capacity: | 1000A @ 32 VDC |
| Nennspannung: | 32VDC |
| Component Level Temperature Range: | -40°C~ +105°C |
| System Level Temperature Range: | -40°C~ +80*C |
| Terminals: | Zinklegierung |
| Housing Material: | pc |
| Complies with: | SAE J1284,ISO 8820-3 |
Blowing Time Characteristics
| % of Rating | Opening Time Min / Max (S) |
| 110 | 100hrs/ |
| 135 | 750ms/120s |
| 160 | 250ms/ 50s |
| 200 | 150ms/5.0s |
| 350 | 40ms/500ms |
| 600 | 20ms/100ms |
Easily identified by their color-coded plastic housings, and the marked amp rating figures on the top
Used for cars and trucks, It can be mounted in fuse blocks, in-line fuse holders, or fuse clips
Drawing of Connect 30441 Micro2 Blade Fuse

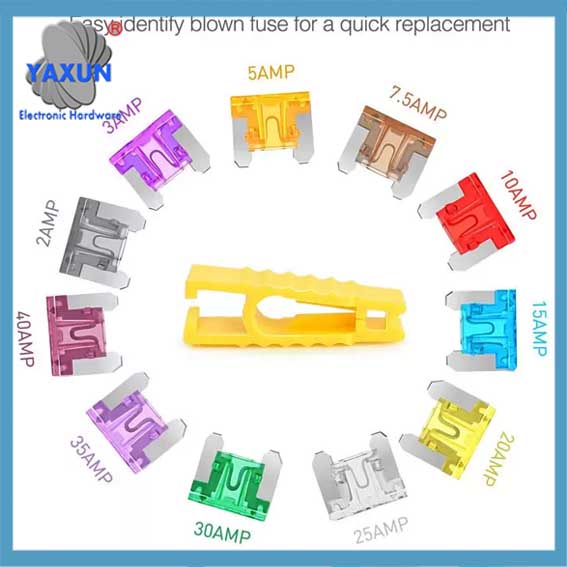

Connect 30441 Easy identify blown fuse for a quick replacement
Drawing of Micro2 Blade Fuse
Connect 30441 fuse Standard coloring scheme eases rating identification
2A grey
3A purple
5A orange
7.5A brown
10A red
15A blue
20A yellow
25A clear
30A green
35A light purple
40A purple red
