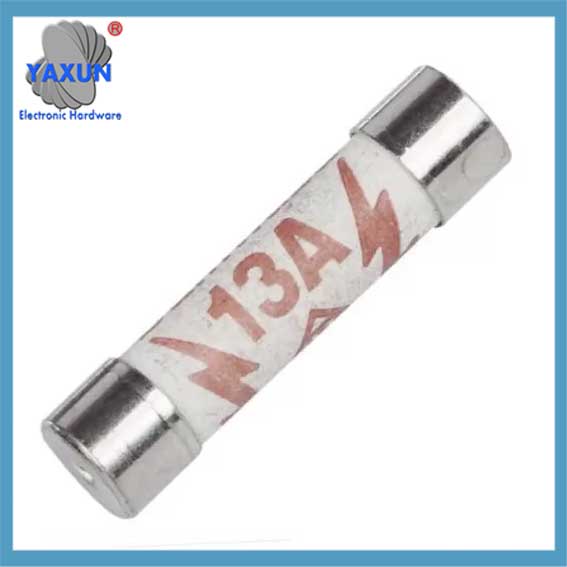

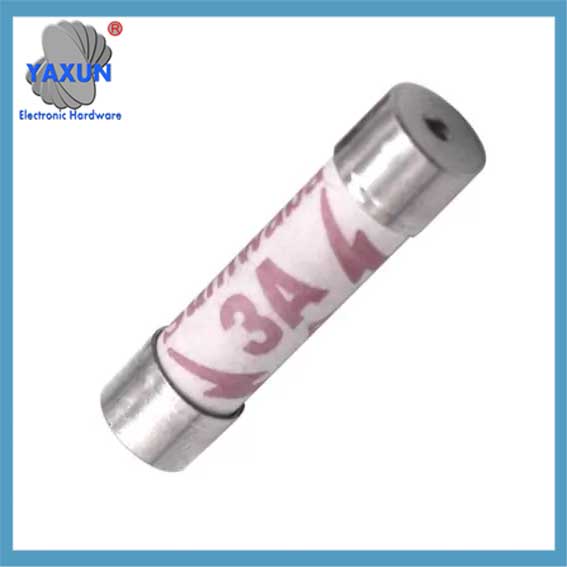

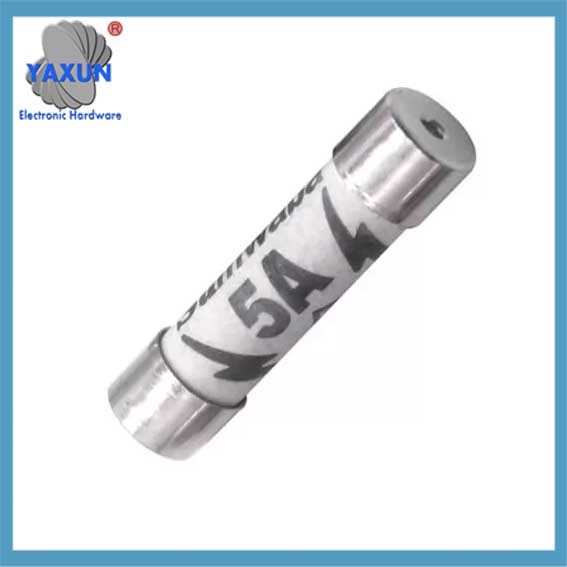

Cooper Bussmann BS1362 Top Ceramic Fuses for Electric Mains UK Plug
Kategorie: Thermosicherung
Stichworte: Keramikrohrsicherung, elektrische Sicherung, Langsame Mikrosicherung
TDC180-1A TDC180-2A TDC180-3A TDC180-5A TDC180-7A TDC180-10A TDC180-13A BS 1362 BS1362 BS 1362 Ceramic Fuses.
Cooper Bussmann Electric Socket Plug Top Fuses BS1362 give continually reliable performance and cost-effective circuit protection. With more than 90 years experience of innovation, Cooper Bussmann has set the standard for circuit protection in the global market.
Quick Acting HBC Mains Plug Fuses with high rapture capacity, suitable for a broad range of application requirements.
Ceramic Bodied fuse, dimensions are 6.3mm x 25.4mm can be used for the following appliances;
1amp for some electric shavers and toothbrushes.
3amp for lamps and radios.
5amp for TVs and HiFi units.
7amp for clothes irons and toasters.
13amp for kettles and microwaves.
Produktbeschreibung
TUV ASTA 240V 264V Plug Fuse 6×25 BS1362 SS 167 British Plug Top Fuse BS 1362 13A 10A 7A 5A 3A 2A 1A
Beschreibung
Item | Plug Fuse |
Standard | SS 167:1977 |
Blow Type | fast/medium |
Body Material | Keramik |
Fusing Material | alloy |
Cap Material | nickel plated brass, Kupfer |
Voltage Rating | 240V 264 AC |
Current Rating | 13A 10A 7A 5A 3A 2A 1A |
Mounting Type | cartridge |
Breaking Capacity | 6KA |
Size | 6.3×25.4mm |
Certifications | TUV ASTA |
Anwendungen | British Plugs |
Specification | ||||||
Part No. | Rated Voltage |
Rated
Aktuell |
Breaking
Capacity |
Max Power
Dissipation |
Typical Cold. Resistance (mOhms) |
Typical Voltage Drop (mV) |
SUM8001 1100 | 264Vac
MAX |
1A | 6KA@264V ac
50Hz P.f.0.3-0.4 |
1W | 255 | 1000 |
SUM8001 1200 | 2A | 86 | 500 | |||
SUM8001 1300 | 3A | 36.8 | 333.3 | |||
SUM8001 1500 | 5A | 17 | 200 | |||
SUM8001 1700 | 7A | 12 | 142.8 | |||
SUM8001 2100 | 10A | 6.59 | 100 | |||
SUM8001 2130 | 13A | 4.55 | 76.9 |
Dimension & Structure
