Kriechthermostat, MOTORSCHUTZ

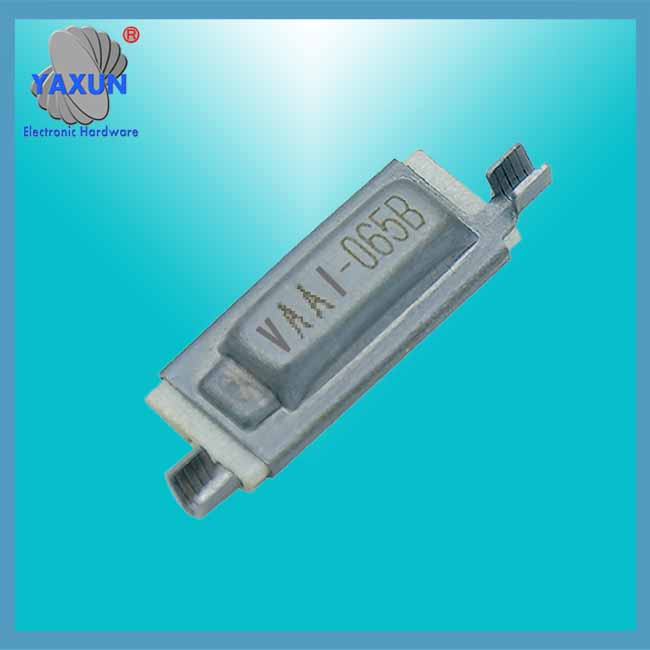

VA1/VAA1 ersetzt den Bimetall-Thermoschutz des PEPI-Kriechthermostaten mit höherer Stromempfindlichkeit:
[Der PEPI Kriechthermostat] VAA1 übernimmt die Bimetallsteuerung, und im Inneren befindet sich ein niederohmiger Schaltkreis mit vergoldeten Kontakten. Konstante Temperaturregelung und geringe Größe. Es ist für Heizdecken geeignet, elektrische Heizkissen und alle Arten von kleinen Haushaltsgeräten, die eine konstante Temperaturfunktion erfordern.
Kategorie: Thermischer schalter
Stichworte: Scheibenthermostate, Temperaturschalter, Temperaturkontrollschalter, Thermischer schalter
VA1/VAA1 ersetzt den Bimetall-Thermoschutz des PEPI-Kriechthermostaten mit höherer Stromempfindlichkeit:
[Der PEPI Kriechthermostat] VAA1 übernimmt die Bimetallsteuerung, und im Inneren befindet sich ein niederohmiger Schaltkreis mit vergoldeten Kontakten. Konstante Temperaturregelung und geringe Größe. Es ist für Heizdecken geeignet, elektrische Heizkissen und alle Arten von kleinen Haushaltsgeräten, die eine konstante Temperaturfunktion erfordern.
Product parameter
● Use bimetallic materials with good conductivity and all-silver gold-plated contacts. Ensure that it can withstand normal loop current and can be used for low voltage, low current and use;
● The contact is gradually opened and closed gradually, will not produce a significant temperature difference, can maintain a constant temperature;
● The temperature is preset before leaving the factory and used for the control of a single temperature range;
● The terminals can be directly wired for use. The metal casing is overcurrent, and the casing insulation layer can be added for use;
● Both normally closed (NC) and normally open (NO) can be produced;
● Wiring harness processing can be provided or fuses can be added to it according to customer requirements;
Elektronische Spezifikationen:
● AC120 V / 5 A
● DC 24 V / 5 A
Temperature range and tolerance:
● Operating temperature range: 5 ℃ -180 ℃, any temperature within its range can be provided according to customer requirements;
● Temperature tolerance: ± 1 ℃, ± 2 ℃, ± 5 ℃. There are three tolerances for customers to choose, generally ± 5 ℃, special needs can produce ± 1 ℃;
Zertifizierung:
● The product has UL and C-UL (No.: E246870) certification;
● It can withstand one hundred thousand times of durability and 1000 hours of continuous work. And passed the UL130 special test of the human body electric heating pad;
● Comply with EU RoHS environmental protection directive (2002/95/EC Directive) requirements.
