Custom 3AG Fuse Clip PCB Mount Fuse Holder 250V Nickel Plated Brass
Custom 3AG 6x30mm, 5*20mm, 10*38mm Clip PCB Mount Fuse Holder 250V Nickel Plated Brass. Along with fuse holders, fuse clips are designed to provide a tight enclosure between the clip and the actual fuse. Available for both 6×30 and 5×20, 10*38mm fuses.

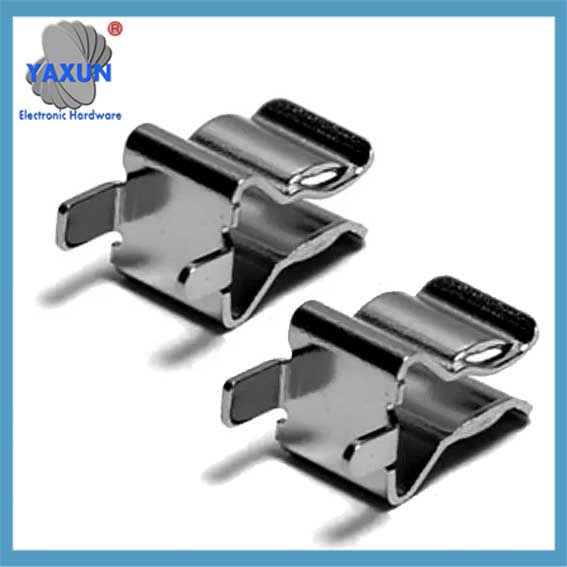

 3AG 6x30mm Clip PCB Mount Fuse Holder 250V Nickel Plated Brass |

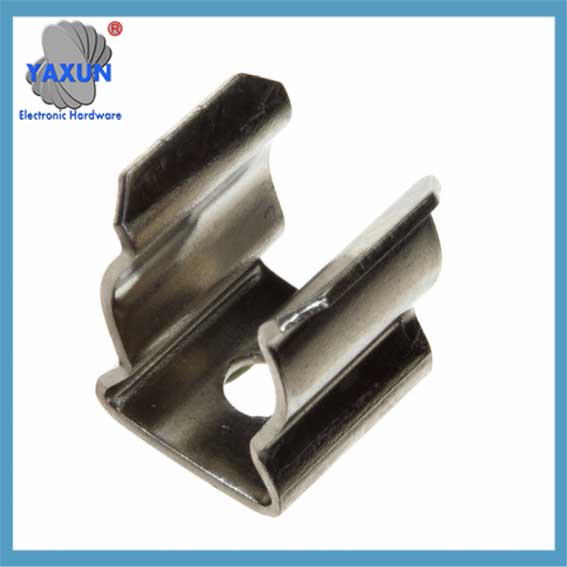

 Keystone Electronics 3565 Fuse Clip 10 x 38mm 15A 1 Circuit Cartridge Chassis Mount |

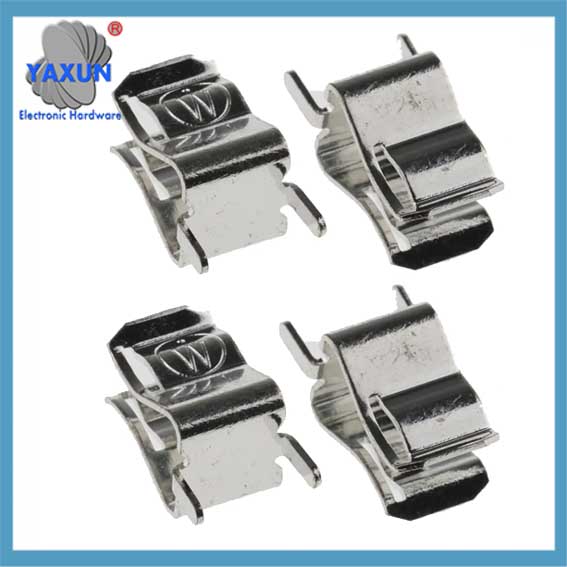

 Littelfuse Brass PCB Mount Fuse Clip for 6.3 x 32mm Cartridge Fuse |
| Item Name: | Fuse Holder, Fuse Clip | Mount Type: | PCB Mount |
| Voltage Rating: | 250V | Current Rating: | 10A |
| Material: | Messing | Plating: | Nickel |
| Total Height: | 13.8mm | Thickness: | 0.5mm |
| Applied To: | 6x30mm, 5*20mm, 10*38mm Fuse | RoHS Compliant: | Yes |
| Hohes Licht: | 3AG PCB Mount Fuse Holder, 6x30mm PCB Mount Fuse Holder, 250V Fuse Clip Holder | ||
Produktbeschreibung
6×30 PCB Mount Fuse Holder 3AG Fuse Clip Nickel Plated Brass 6x30mm, 5*20mm, 10*38mm FS-600 Fuse Clip Holder
Produktbeschreibung
| Item | 6x30mm, 5*20mm, 10*38mm Fuse Clip PCB Mount |
| Rating | 10A 250V |
| Body material | Messing |
| Plating material | nickel |
| Pin distance | 7mm |
The most used fuse clips for 6x30mm fuses
Electrical Characteristics:
Nominal Current/Voltage:10A 250
Operating Power:1.6W
Contact Resistance:<5mΩ
lnsulation Resistance:>100mΩ
Dielectric Strength:>3000Vac/60sec.
Widely used in household appliances, electric power, telecommunications, machine tools, ships, textiles, printing, mining machinery, Mustic instruments, usw.
6x30mm, 5x20mm, 10x38mm Clip PCB Mount Fuse Holder Drawing
