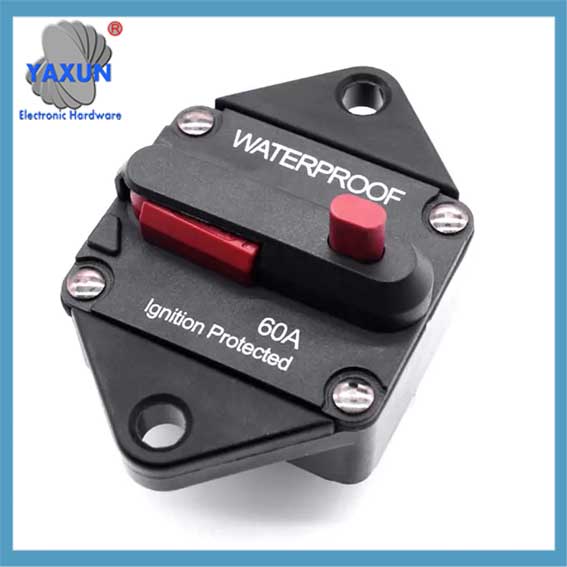

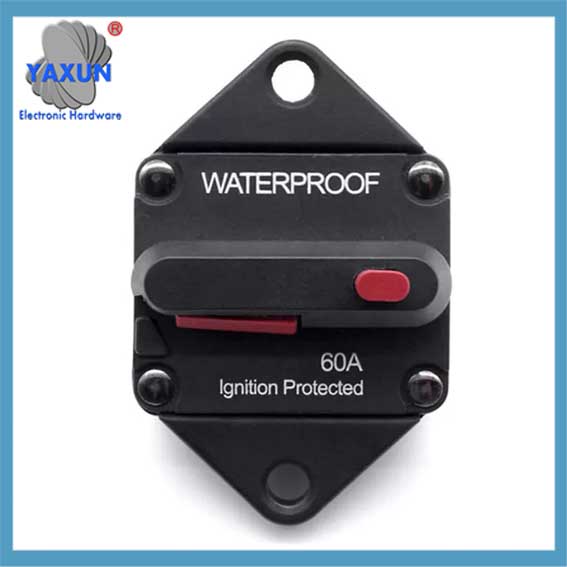

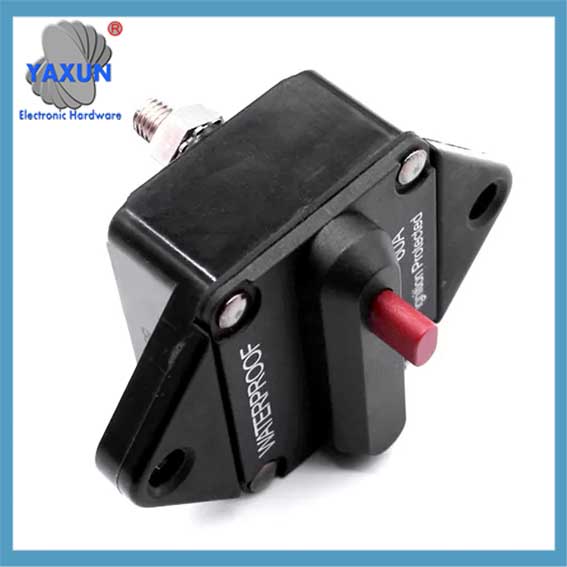

Custom 60~300 Amp Marine Circuit Breaker Panel Mount 285, 16-3P Series 7084
Kategorie: Thermischer Schutzschalter
Stichworte: Leistungsschalter, Mini-Leistungsschalter, Motorüberlastschutz, Motor-Thermoschutz
Custom 285, 16-3P Series 7084/ E96 Thermal circuit breakers provides medium duty Mechanical Style circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required. Discover the latest in Panel Mount 285-Series Circuit Breakers 7080 for medium duty circuit and switching. Water & Ignition Protected.
Drop in replacement for 185, 16-3P Series Series Circuit Breakers
Visible reset lever shows open condition
Ignition protected – Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Weather Resistant
Combines switching and circuit breaker function into one unit*
“Trip Free” – cannot be held closed after trip
Replaces Blue Sea Systems 7000, 7005, E96
Item Name: | 285, 16-3P Series 7084 Leistungsschalter | Part No.: | 285, 16-3P Series 7084, E96 |

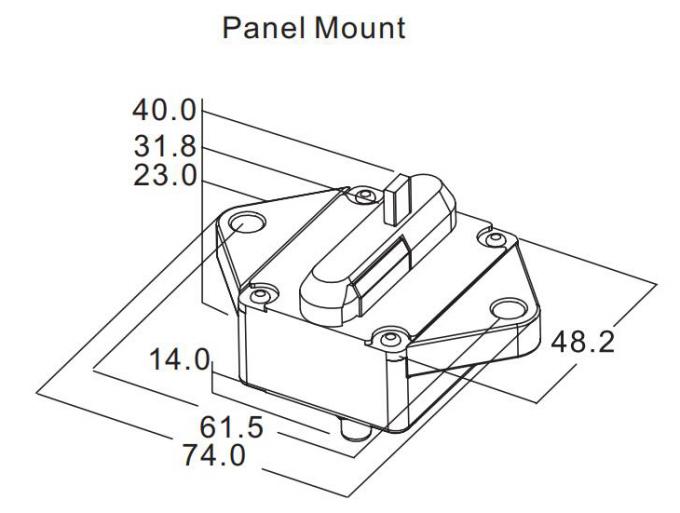

Dimension: | 74×48.2x40mm | No. Of Pole: | Single |
Mounting Type: | Panel Mount | Interrupting Rating: | 5KA@32VDC, 3KA@48VDC |
House Material: | Phenolic 94V-0 | Protection Grade: | IP67 |
Voltage Rating: | 48V | Current Ratin0.1A~20Ag: | 20A 30A 40A 50A 60A 70A 80A 100A 125A 150A 200A 250A 300A |
RoHS Compliant: | Yes | Halogen Free: | Yes |
MPQ: | 100pcs Per Bag | Operation Temp: | -32˚C To +82˚C |
Torque Rating: | 50 In-Ib (5.6Nm) Max | ||
Hohes Licht: | 285, 16-3P Series 7084 125A Automotive Circuit Breakers , E96 Panel Mount Breakers |
Produktbeschreibung
Produktname | Waterproof On-Off Switch Ignition Protected Circuit Breaker |
Types | Single Pole Thermal Type Breakers |
Volt Rating | 48Vdc |
Amp Rating | 20A 30A 40A 50A 60A 70A 80A 100A 125A 150A 200A 250A 300A |
Interrupting Rating | 5KA@32VDC, 3KA@48VDC |
Body Material | Black UL-rated 94V0 thermoset plastic |
Protection Rating | IP67 |
Termination | 1/4-28 or 3 8 16 threaded studs |
Operating Temperature | –25°F (–32°C) to 180°F (82°C) |
Storage Temperature | –30°F (–34°C) to 300°F (149°C) |
Compliance | SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected) |
Merkmale
Single Pole Thermal Type Breakers
Typically used in auxiliary and accessory circuits in truck, bus’, RVs and marine systems.
Others include battery chargers and DC audio systems, compartment and bilge area applications.
Operating Temperature Rating:-25°F(-32°C) to 180°F(82°℃)
Storage Temperature Rating: -30°F(-34°C) to 300°F (149°C)
Materials: Black UL-rated 94V0 thermoset plastic.
Thermoplastic elastomer stud insulators areprovided on covered units with F-style (surface-mount) bases
Marking:Standard marking includes amp ratings and part numbers.Custom markings also available.
Termination: 1/4-28 or 3/8-16 threaded studs
Torque Rating: 50 in-lbs (5.6N•m) max
Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6N•m ) max.Threaded insertoption has a max torque of 25 in-lbs (2.8N•m).
lngress Protection Rating: lp67
Compliances: SAE J1625;ABYCE-11;CE;SAEJ1171 (ignition protected)
Reset type: Manual Reset – Switchable
Standard Package
1pcs per bag, 100pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
