Custom M5 Bolt Down Fuses 58V Automotive Slow Blow Halogen Free
China factory custom MIDI Fuse for use on DC systems up to 58V. 41mm x 12mm wide with M5 holes at 30mm centres. Rigid Sn-plated copper alloy blades. The BF1-58 fuse is rated at 58V and offers a bolt-on fuse for high current wiring protection.
China factory custom MIDI Fuse for use on DC systems up to 58V. 41mm x 12mm wide with M5 holes at 30mm centres. Rigid Sn-plated copper alloy blades. The BF1-58 fuse is rated at 58V and offers a bolt-on fuse for high current wiring protection.

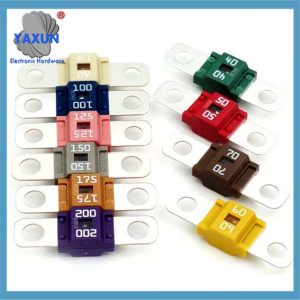

 M5 Bolt Down Fuses 58V Automotive 100 Amp Slow Blow Fuse Halogen Free |

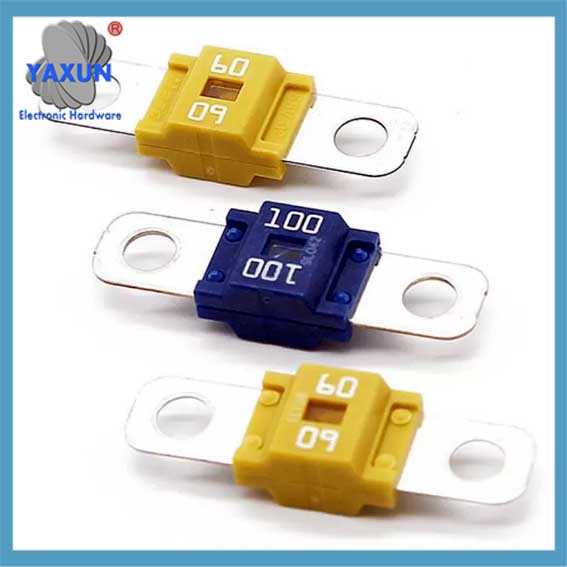

 MIDI fuse 60A Yellow M5 holes 58V 60 Amp bolt down AMI |

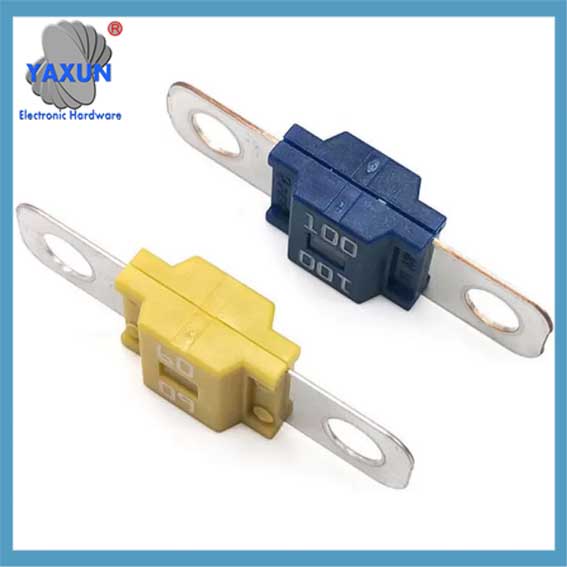

 Littelfuse Inc. 142.5395.6172 175A AC 58V DC Fuse Automotive Bolt Moun |
| Artikelname: | Bolt-on Fuse | Bolt Type: | M5 |
| Total Length: | 41mm | Hole Distance: | 30mm |
| Montageart: | Bolt Down | Unterbrechende Bewertung: | 1000A |
| Hausmaterial: | PA | Terminalmaterial: | Tin Plated Copper |
| Nennspannung: | 58In DC | Stromstärke: 0,1 A bis 20 Ag: | 30A 40A 50A 60A 70A 80A 100A 125A |
| RoHS-konform: | Ja | Halogenfrei: | Ja |
| Torque: | (4.5±1.0)N.m | Betriebstemp: | -40˚C To +120˚C |
| Standard: | ISO8820-5 | ||
| Hohes Licht: | M5 Bolt Down Fuses, 58V Bolt Down Fuses, 100 Amp Slow Blow Fuse | ||
Produktbeschreibung
M5 Bolt Type Slow Blow Fuse SBFW-L 58V 30A 40A 50A 60A 70A 80A 100A 125A Automotive Fuse
Produktbeschreibung
Bolt Down Fuse SBFW-L for Car Vehicles Marine Audio Video System
| Spezifikation | Parameters |
| Unterbrechende Bewertung: | 1000A @ 32 VDC |
| Nennspannung: | 58 VDC |
| Aktuelle Bewertung | 30A 40A 50A 60A 70A 80A 100A 125A |
| Schlagtyp | Slow |
| Temperaturbereich: | -40°C bis +120°C |
| Terminals: | tinned plated brass |
| Complies with: | ISO8820-5 |
| Mounting Torque | (4.5±1.0)N.m |
Electrical Performance
Time-Current Characteristics
M5 Bolt Down Fuses Time-Current Characteristics
Bolt Down Fuses Blowing time
Bolt Down Fuses Ampere Rating
Drawing of Blow 58V Fuse SBFW-L M5 Bolt
