Kundenspezifischer wasserdichter ATO ATC-Auto-Inline-Sicherungshalter mit 10/ 14 / 18AWG-Draht
Bussmann In-Line Water-Resistant ATO/ATC Blade Fuse Holder With Cover, 10 AWG. Designed to accept ATO/ATC automotive-style spade terminal fuses. For use with Sea-Dog® ATO or ATC Style Fuses 445101-445130, 445190, 445156, Und 445157. 14AWG Inline Fuse Holder Waterproof with ATC/ATO 15 Amp Blade Fuses for Automotive Car Truck Boat Motorbikes.
|

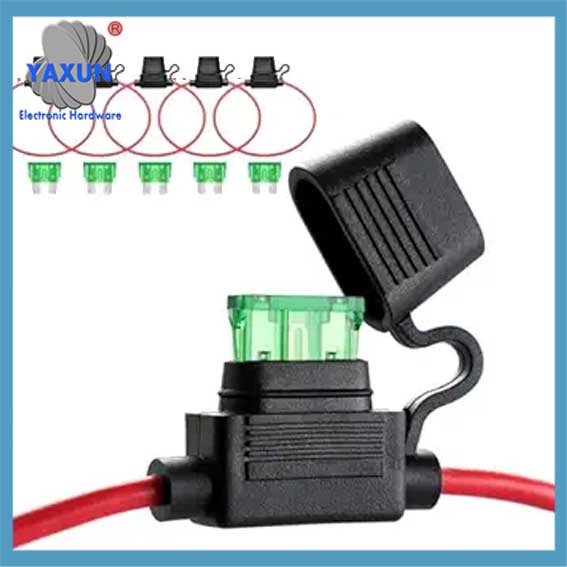

12 AWG-Inline-Sicherungshalter mit 30 Amp ATO-ATC Standard-Flachsicherung |

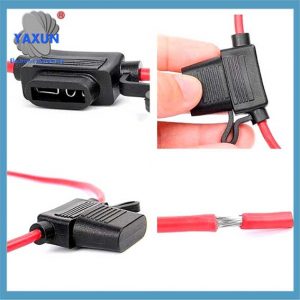

14AWG Inline Fuse Holder Waterproof with ATC – ATO 15 Amp Blade Fuses for Automotive Car |

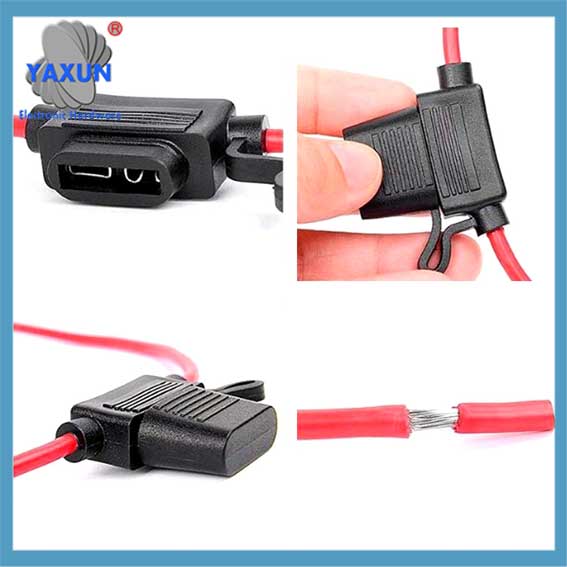

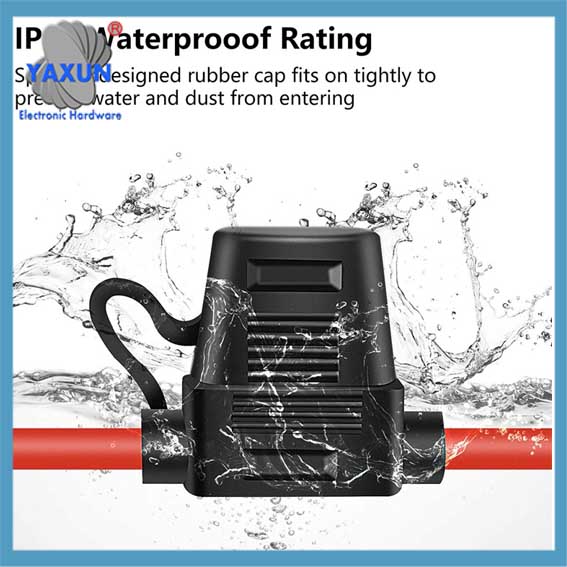

IP67 wasserdichter 18AWG-Draht-Kfz-Sicherungshalter für ATO ATC-Flachsicherungen |
| Artikelname: | ATO Blade Fuse Holder | Mount-Typ: | Inline, In-line |
| Nennspannung: | 32VDC | Aktuelle Bewertung: | 40A |
| Angewendet auf: | Standard ATO Blade Fuse | RoHS-konform: | Ja |
| Körpermaterial: | PVC | Terminalmaterial: | Tin/nickel Plated Brass |
| Schutzgrad: | IP65 | Wire Gauge: | 18 AWG |
| Wire Length: | Customized | Operation Temperature: | -40C~125C |
| Hohes Licht: | 18AWG Cable ATO Car Blade Fuse Holder | ||
Produktbeschreibung
18AWG Wire Car Fuse Holder For ATO ATC Blade Fuses
Product Description of 18AWG Wire Car Fuse Holder For ATO ATC Blade Fuses
Suitable for cars, boats, motorbikes, trucks, usw.
Kontaktwiderstand:100mΩ at 1A DC
lnsulation Resistance:≥100mΩ 500Vdc
Electrical:Rated at 40A 32Vdc
Insulating Body: PVC
Terminals:Messing, plated with tin or nickel
Operation temperature:-5C to +60C
| Artikel | ATO Car Fuse Holder |
| Mouting Style | In-line |
| Max Rating | 40A 32V |
| Zertifizierungen | RoHS |
| Body Color | Schwarz |
| House material | PVC |
| Terminal material | Messing |
| Cable Gauge | 18 AWG |
Drawing of 18AWG Wire Car Fuse Holder For ATO ATC Blade Fuses
Drawing of Car Fuse Holder For ATO ATC Blade Fuses
Pictures of 18AWG Cable Car Fuse Holder with Cap for Standard ATO Blade Fuses
The main plastic is PVC with high chemical stability,Good mechanical properties.
Brass terminal, conductive and fastening insert fuse, strong conductivity
Conductive stable, prevent long-term moisture.

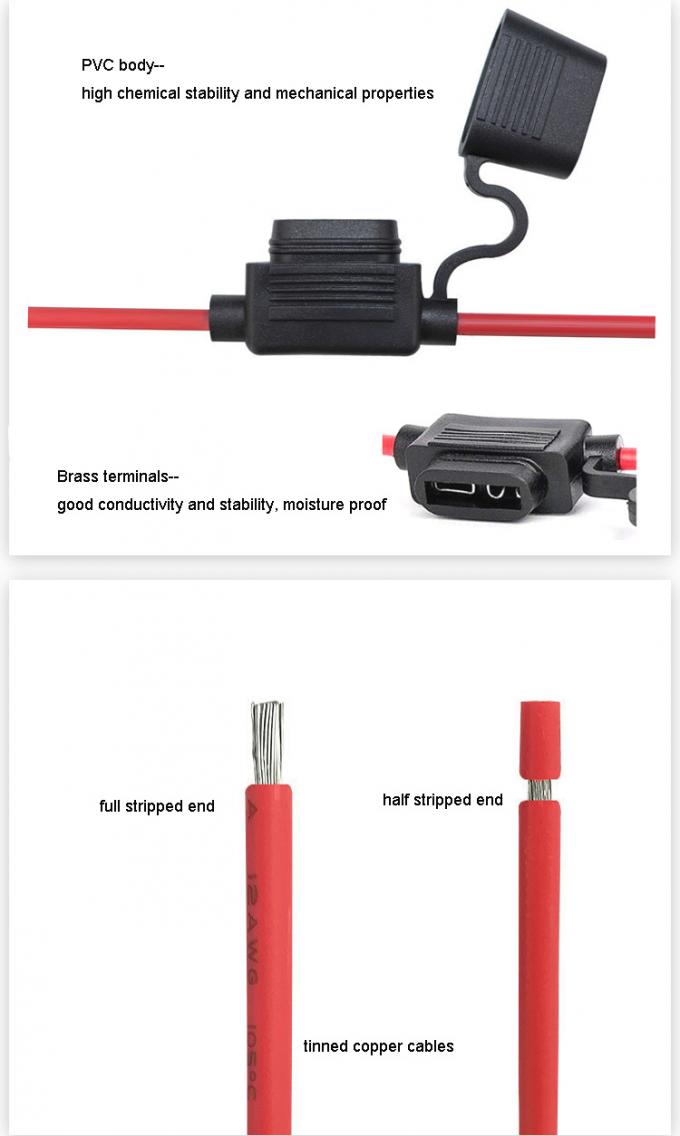

PVC Car Fuse Holder For ATO ATC Blade Fuses

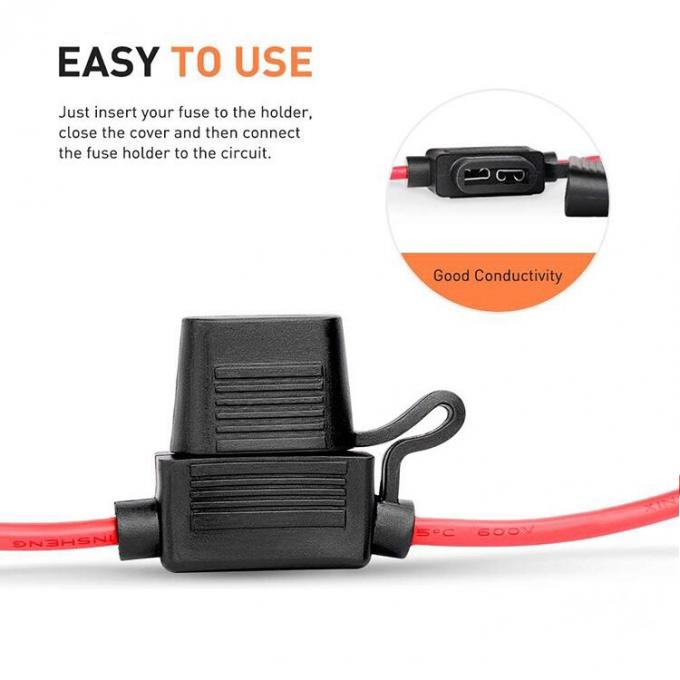

insert your fuse to the holder close the cover
Just insert your fuse to the holder,close the cover and then connect the fuse holder to the circuit.
Wide range and customized services
| ATO Fuses Amperes | 1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A |
| Wire Gauge | 18AWG |
| Custom Cable | length & color (upon request) |
What you need to know before ordering:
| Wire length | which gauge? looped wire or cut wire? how long? |
| Wire ends | need stripping? |
| Sicherung | need fuses preinstalled? |
Kontaktiere uns
Warten auf Ihre E-Mail, Wir werden Ihnen innerhalb von 24 Stunden antworten 12 Stunden mit wertvollen Informationen, die Sie brauchten.
