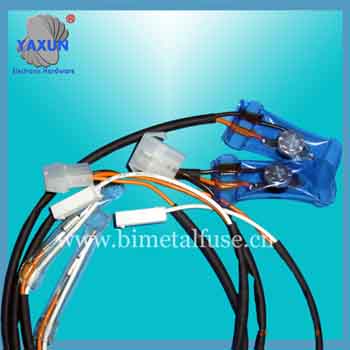

Thermoschalter zum Abtauen des Kühlschranks + Kabel: Der Abtauthermostat erfasst die Umgebungstemperatur über einen Temperatursensor. Diese Sensoren wandeln die erfassten Temperaturwerte in elektrische Signale um, die dann zur Verarbeitung an die Steuerschaltung übergeben werden.
Kategorie: Thermischer schalter
Stichworte: Thermoschalter, Wärmeschutz, Thermischer schalter
Thermoschalter zum Abtauen des Kühlschranks + Kabel: Der Abtauthermostat erfasst die Umgebungstemperatur über einen Temperatursensor. Diese Sensoren wandeln die erfassten Temperaturwerte in elektrische Signale um, die dann zur Verarbeitung an die Steuerschaltung übergeben werden. Temperature sensors generally use thermistors, thermocouples or infrared sensors, which can quickly and accurately detect and respond to changes in ambient temperature.
Control circuit processing: The control circuit is the core part of the defrost thermostat. It processes and judges the electrical signals transmitted from the temperature sensor. Based on the difference between the set temperature value and the actual detected temperature value, the control circuit starts or stops the heating or cooling equipment by controlling the actuator. The control circuit generally uses electronic components such as microprocessors or microcontrollers, which can process and judge temperature signals quickly and accurately.
The semi-automatic defrosting temperature controller is a set of semi-automatic defrosting device added to the ordinary type thermostat. These include defrost buttons, defrost balance springs, defrost temperature adjustment screws, defrost springs, and defrost control boards. This type of thermostat is mainly used in various direct-cooling refrigerators. On the one hand, the temperature in the box can be adjusted and controlled like ordinary thermostats; On the other hand, when the frost layer on the surface of the refrigerator hair dryer is too thick, it can be used for defrosting.
Feature
– Slim
– With plastic casing can be completely waterproof
– Dual contact the contact, the contact resistance excellent.
– Get SEMKO, UL, CAS certification
specification
– Rated voltage and current 15A / 125V AC
7.5A / 250V AC
– Operating temperature range -20C- 150C
– The maximum service life 100,000 Cycle
product name | LG6615JB2003J refrigerator defrost thermostat on Klixon |
verwenden | Temperature control / overheating protection |
Reset Type | automatic |
Basic materials | Heat-resistant resin matrix |
Electrical Ratings | 15A/125VAC,7.5A/250VAC |
maximum. Operating temperature | 150℃ |
lowest. Operating temperature | -20℃ |
tolerance | +/- 5 ℃, open the Action (Optional +/- 3 C or lower) |
Protection class | IP00 |
Contact Material | silver |
Dielectric strength | AC 1500V1 minutes or seconds AC1800V1 |
Insulation resistance | DC 500V more than 100MW by Meg tester |
Resistance between terminals | Less than 100mW |
Bimetal Diameter | Φ12.8mm(1/2“) |
Authenticate | UL/ TUV/ VDE/ CQC/ KC |
terminal type | custom made |
Cover / Stand | custom made |
6. optimum temperature °c | ||||||||||||
|
||||||||||||
7. bottom temperature tolerance code | ||||||||||||
|
||||||||||||
8. optimum temperature°c | ||||||||||||
|
||||||||||||
9. bottom temperature tolerance code | ||||||||||||
|
