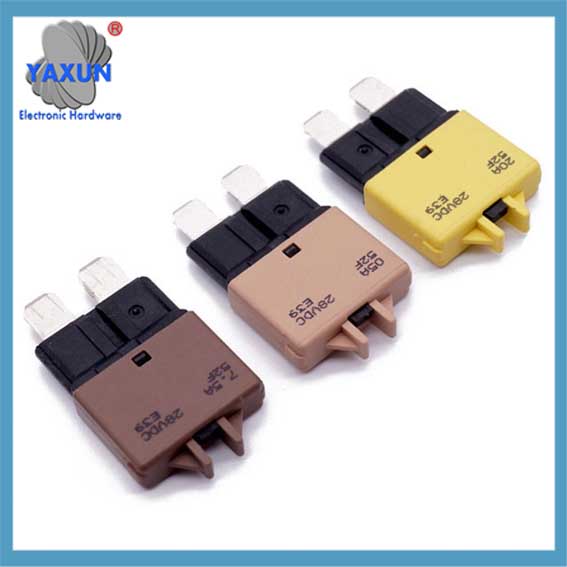

E39 ATC/ATO Circuit Breaker Blade Fuse Manual Reset Low Profile

There are many electrical devices in the car circuit connected by wires of different colors. Darunter, the most important one should be the Blade fuse. Car fuse is a customary name, and it is called Blade fuse in the national standard. The function of the Blade fuse is to protect the circuit (line) and electrical equipment. Car fuses work in the DC environment commonly found in vehicles. The rated voltage of the fuse is 32 Zu 80 volts, and the ampere rating is 0.5 Zu 500 Verstärker. ATC/ATO Blade fuses are widely used in cars, trucks, buses and off-road transportation equipment to protect cables, wires and electrical components that power operating lights, Heizungen, Klimaanlagen, radios, power windows and other electrical accessories. They are also used in electric and hybrid vehicles and various electronic applications. Typical car fuses include car blade fuses, such as car ATO fuses, car Mini fuses, car MAXI fuses and car MEGA fuses.

ATC ATO E39 Circuit Breaker Blade Fuse Manual Reset Low Profile

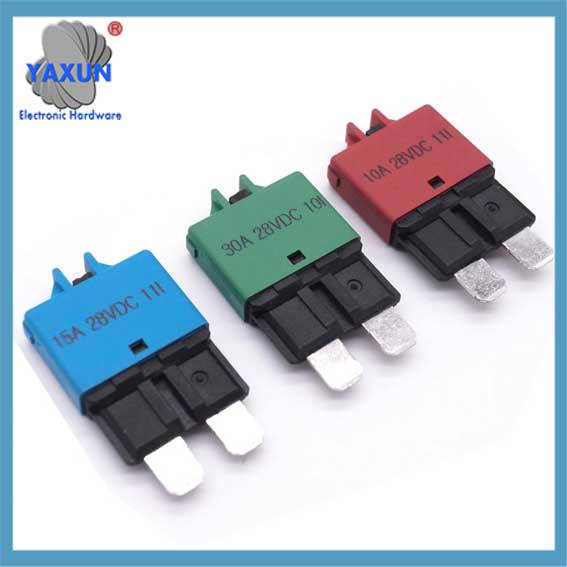

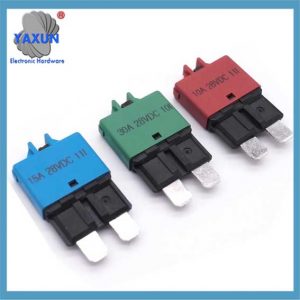

Circuit Breakers ATC ATO mini Fuses E39 Manual Reset Assortment Kit (5A 10A 15A 20A 25A 30A

GLOSO E39 Manual (T3) Reset Low Profile ATC ATO Circuit Breakers Fuse

About this item
3A @ 32Vdc – 1 Pack
ATO/ATC Manual Reset (T3) Leistungsschalter
Materialien: UL-Rated 94V0 thermoplastic body. Tin-plated copper alloy terminals
Beendigung: 5.2mm wide blades compatible with ATO/ATC type fuse blocks
Compliances: SAEJ553; SAEJ1171 (Ignition protected)

Produktbeschreibung

Produktbeschreibung

E39 ATC ATO Manual Reset Blade Fuse for Car over-current protection

Produktmerkmale

Spezifikation:

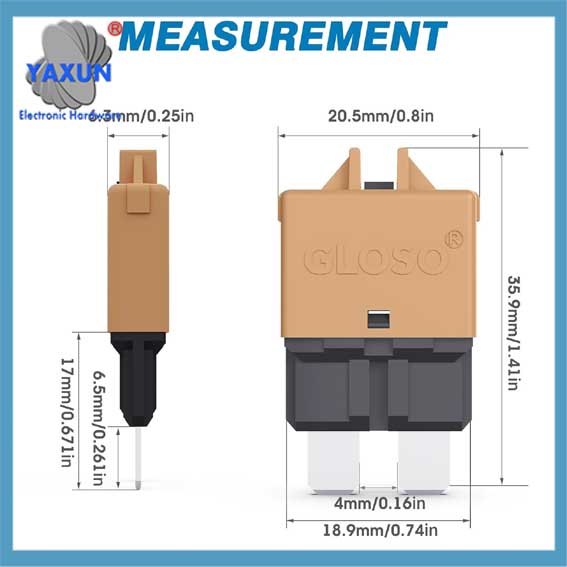

E39 Manual Reset blade fuse dimension:

E39 ATC/ATO Manual Reset blade fuse dimension

5A tan

6A moss green

7.5A brown

10A red

15A blue

20A yellow

25A white

30A green
