Emerson G4 / G5-Serie Mikrotemperatur 10A / 20Eine Thermosicherung

We have all the temperature models of Emerson G4 series, G5 series and E series thermal fuses in stock.

The thermal fuses (temperature fuses) manufactured by Emerson “Therm-o-Disc” can provide very reliable upper temperature protection. When the operating temperature exceeds its rated temperature, the thermal fuse can quickly interrupt the circuit. It has established its unshakable flagship position among the products in the same industry.

G4 series thermal fuses, rated current AC 250V/10A, are used as protective parts for electrical appliances. They are widely used in various home appliances, office equipment and industrial equipment, and are industrial standard components for overheating protection devices.
G5 series is suitable for high current and hot shock environment, rated current AC 250V/16A;
G6 series is suitable for high current and low shock environment, rated current AC 250V/16A;
G7 series is suitable for small installation space, such as transformers, Motoren, battery pack protection packages, electronic circuit boards, with small size, rated current AC 250V/5A DC 24V/5A;
G8 series is suitable for high current equipment, rated current AC 250V/25A;
E series is a special name for Rosh in the early days, and its characteristics are the same as G series;

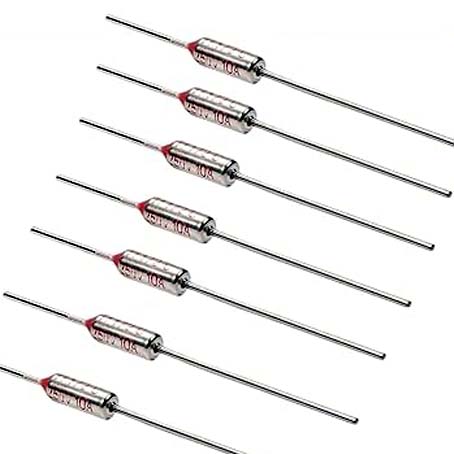

G4 Thermal Fuse

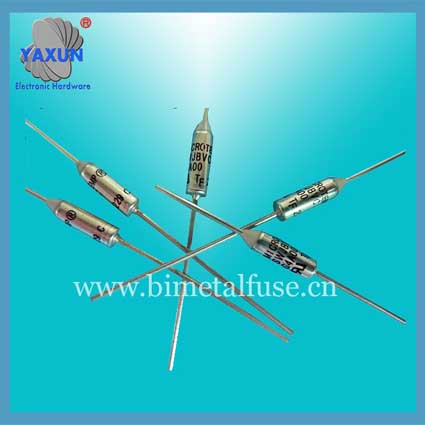

Emerson Group production MICROTEMP® G4 series thermal fuse, Nach unterschiedlichen Produktspezifikationen, Nennlaststrom, jeweils, bis zu AC250V 10A, AC120V 15A und DC24V 5A. Zum zuverlässigen Schutz vor Überhitzung, In den gleichen Branchenprodukten, MICROTEMP® G4 series thermal fuse has established its flagship status can not be shaken. G4 series thermal fuse, Annually in various global instruments appliances and personal appliances have been widely used, To provide very accurate temperature protection, And to provide reliable back-up to protect the internal temperature controller. G4 series thermal fuse as the electrical protection of God, In a variety of office equipment, Portable electric heaters and industrial equipment are also widely used.
Rated current load: 250VAC 10A, AC120V 15A, DC24V 5A
Certification Body: CCC, UL, CSA, VDE, METI, KETI
Type There：G4A01072C、G4A00072C、G4A01073C、G4A00073C、G4A01077C、G4A00077C、 G4A01081C、G4A00081C、G4A01084C、G4A00084C、G4A01093C、G4A00093C、G4A01098C、 G4A00098C、G4A01104C、G4A00104C、G4A01110C、G4A00104C、G4A01110C、G4A00110C、 G4A01117C、G4A00117C、G4A01121C、G4A00121C、G4A01125C、G4A00125C、G4A01128C、 G4A00128C、G4A01134C、G4A00134C、G4A01141C、G4A00141C、G4A01144C、G4A00144C、 G4A01152C、G4A00152C、G4A01158C、G4A00158C、G4A01167C、G4A00167C、G4A01172C、 G4A00172C、G4A01184C、G4A00184C、G4A01190C、G4A00190C、G4A01192C、G4A00192C、 G4A01205C、G4A00205C、G4A01216C、G4A00216C、G4A01229C、G4A00229C、G4A01240C、 G4A00240C、G4A01257C、G4A00257C
E4A01072C、E4A00072C、E4A01073C、E4A00073C、E4A01077C、E4A00077C、E4A01081C、 E4A00081C、E4A01084C、E4A00084C、E4A01093C、E4A00093C、E4A01098C、E4A00098C、 E4A01104C、E4A00104C、E4A01110C、E4A00104C、E4A01110C、E4A00110C、E4A01117C、 E4A00117C、E4A01121C、E4A00121C、E4A01125C、E4A00125C、E4A01128C、E4A00128C、 E4A01134C、E4A00134C、E4A01141C、E4A00141C、E4A01144C、E4A00144C、E4A01152C、 E4A00152C、E4A01158C、E4A00158C、E4A01167C、E4A00167C、E4A01172C、E4A00172C、 E4A01184C、E4A00184C、E4A01190C、E4A00190C、E4A01192C、E4A00192C、E4A01205C、 E4A00205C、E4A01216C、E4A00216C、E4A01229C、E4A00229C、E4A01240C、E4A00240C、 E4A01257C、E4A00257C

Zusätzlich, G4, and E4 series thermal fuse is printed above certification JET and the PSE. It can be used for all kinds of home appliances exported to Japan products above. Models：E4A51072C、E4A50072C、E4A51073C、E4A50073C、E4A51077C、E4A50077C、 E4A51081C、E4A50081C、E4A51084C、E4A50084C、E4A51093C、E4A50093C、E4A51098C、 E4A50098C、E4A51104C、E4A50104C、E4A51110C、E4A50104C、E4A51110C、E4A50110C、 E4A51117C、E4A50117C、E4A51121C、E4A50121C、E4A51125C、E4A50125C、E4A51128C、 E4A50128C、E4A51134C、E4A50134C、E4A51141C、E4A50141C、E4A51144C、E4A50144C、 E4A51152C、E4A50152C、E4A51158C、E4A50158C、E4A51167C、E4A50167C、E4A51172C、 E4A50172C、E4A51184C、E4A50184C、E4A51190C、E4A50190C、E4A51192C、E4A50192C、 E4A51205C、E4A50205C、E4A51216C、E4A50216C、E4A51229C、E4A50229C、E4A51240C、 E4A50240C、E4A51257C、E4A50257C G4A51072C、G4A50072C、G4A51073C、G4A50073C、G4A51077C、G4A50077C、G4A51081C、 G4A50081C、G4A51084C、G4A50084C、G4A51093C、G4A50093C、G4A51098C、G4A50098C、 G4A51104C、G4A50104C、G4A51110C、G4A50104C、G4A51110C、G4A50110C、G4A51117C、 G4A50117C、G4A51121C、G4A50121C、G4A51125C、G4A50125C、G4A51128C、G4A50128C、 G4A51134C、G4A50134C、G4A51141C、G4A50141C、G4A51144C、G4A50144C、G4A51152C、 G4A50152C、G4A51158C、G4A50158C、G4A51167C、G4A50167C、G4A51172C、G4A50172C、 G4A51184C、G4A50184C、G4A51190C、G4A50190C、G4A51192C、G4A50192C、G4A51205C、 G4A50205C、G4A51216C、G4A50216C、G4A51229C、G4A50229C、G4A51240C、G4A50240C、 G4A51257C、G4A50257C
