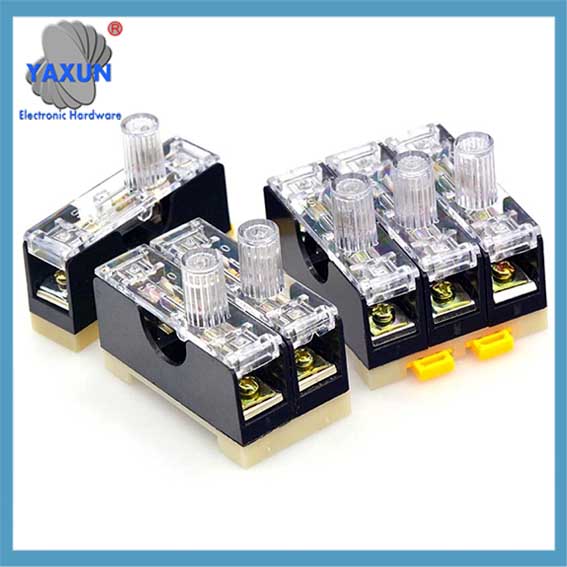

FS-101 FS-102 FS-103 Sicherungskasten für DIN-Schienenmontage für 6×30 Sicherungen mit LED
6X30mm Glassicherungshalter FS-101 FS-102 FS-103 mit LED.
Einpolige DIN-Schienenmontage 6 * 32 Fuse Casing 220V /250V.
Fuse Holders Features: 6mm x 30mm glass fuse included.
Copper materials and with a clear protective non-conductive resistant cover.
Protect electrical distribution installations of rated voltage of 250V.
Spezifikationen:Material: Plastik, Kupfer
Farbe: Schwarz, Clear
Stromspannung: 250VSize: 60mm x 15.5mm x 45mm / 2.36″ x 0.61″ x 1.77″(L*W*H)
Fit for DIN Rail : 35mm / 1.38″for Fuse Size: 6mm x 30mm (Included)
Package Contents:1Set x Fuse Holder + 1Pcs x Fuse(10A)
 6X30mm Glassicherungshalter FS-102 FS-103 DIN-Schienenmontage einpolig |
 FS-101 FS-102 FS-103 DIN-Schienenmontage, einpolig, Fell 6-30 Sicherungsgehäuse 220V |

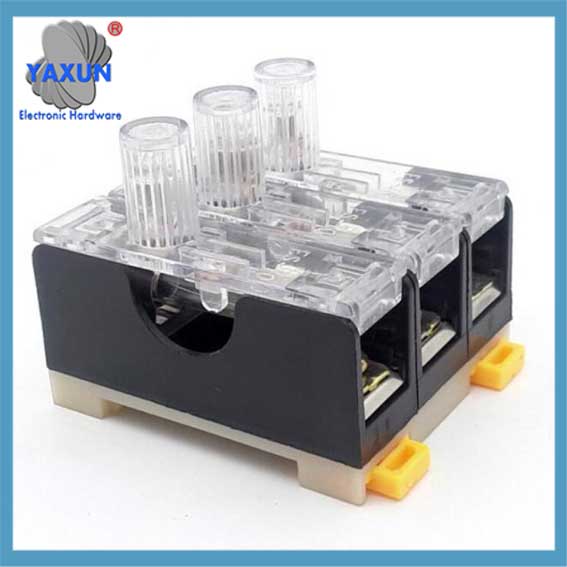

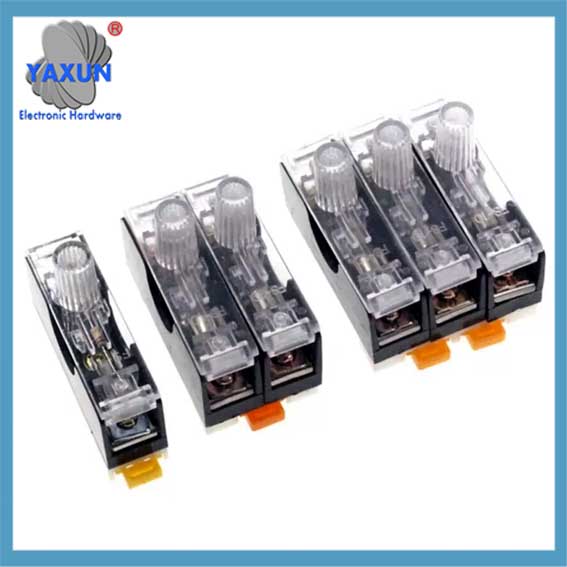

 FS-103 3P Fuse Holder for 6×30 fuses Din Rail Mount Fuse Box 10A 250V LED Indicator 6×32 Sicherungsblock |
| Produktname: | Sicherungshalter, Sicherungsblock, Fuse Box | Teilenummer: | FS-101 FS-102 FS-103 |
| Number Of Poles: | 3 | Mount Way: | Din Rail Mounting |
| Nennspannung: | 250 Volts | Nennstrom: | 10 Ampere |
| Breaking Capability: | 50KA | Länge: | 56mm |
| Breite: | 47.5mm | Height: | 47.5mm |
| Knob Dia: | 10.5 Mm | Angewendet auf: | 6x30mm 6x32mm 3AG Fuses |
| Fuse Amperage: | 0.5A 1A 2A 3A 4A 5A 6A 8A 9A 10A | Net Weight: | 90g |
| Package: | 6pcs Per Box | ||
| Hohes Licht: | 6×32 Din Rail Fuse Block, 3P Rail Mount Fuse Holder, 56mm Fuse Holder With Led Indicator | ||
Produktbeschreibung
FS-103 3P Fuse Holder for 6×30 fuses Din Rail Mount Fuse Box 10A 250V LED Indicator 6×32 Sicherungsblock
Produktbeschreibung
| Artikel | 3P Fuse Holder, Fuse block, Fuse Box |
| Mount Way | 35mm Din Rail |
| Nennstrom | 10A |
| Nennspannung | 250V AC |
| Breaking Capability | 50KA |
| Base Material | Abs |
| Contact Material | Mn Steel |
| Cap Material | Polystyrene |
| Umgebungstemperatur | -10°C~70°C |
| Withstanding Voltage | Min 1500V ac(50HZ) |
| Cap Type | Bayonet |
| Package | 6pcs per box |
| Net Weight | 90g |
FS-103 3P 2P Din Rail Mount Fuse Box for 6×30 Sicherungen mit LED
1.Teile-Nr.: FS-103
2.Number of Poles: 3
3.Fuse Ratings: 0.5A 1A 2A 3A 4A 5A 6A 8A 9A 10A
4.Körperlänge: 56mm
5.Body Width: 47.5mm
6.Total Height: 47.5mm
7.Knob Length: 17mm
Feature:
3 pole structure
Led indicating for blown fuses
Excellent fire retardant materials
Convenient din rail mounting
Compact design
Drawing of the FS-101 FS-102 FS-103 fuse holder
