Gas Fryer / Electric Water Heater Liquid Expansion Capillary Thermostat

Liquid expansion capillary thermostat is a temperature control device that can adjust the temperature according to the temperature change of the working environment of the fryer/electric water heater. It is also called an adjustable temperature control switch, temperature limiter or temperature controller. Its working principle is to sample and monitor the ambient temperature through a liquid bulb sensor probe. When the temperature of the controlled object changes, the material (usually liquid) in the temperature sensing part of the thermostat produces a corresponding physical phenomenon of thermal expansion and contraction (volume change), and the membrane box connected to the capillary temperature sensing part expands or contracts. The lever principle drives the switch to make and break to achieve the purpose of constant temperature. The Liquid expansion thermostat has the performance characteristics of accurate temperature control, stable and reliable, small start-stop temperature difference, large temperature control adjustment range, and large overload current. Capillary thermostats are mainly used in temperature control occasions such as home appliances, electric heating equipment, and refrigeration industries.

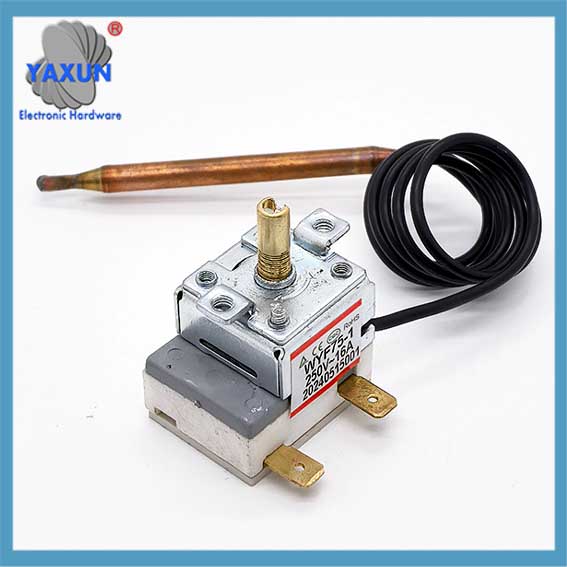

30~110℃ water heater accessories liquid expansion thermostat switch

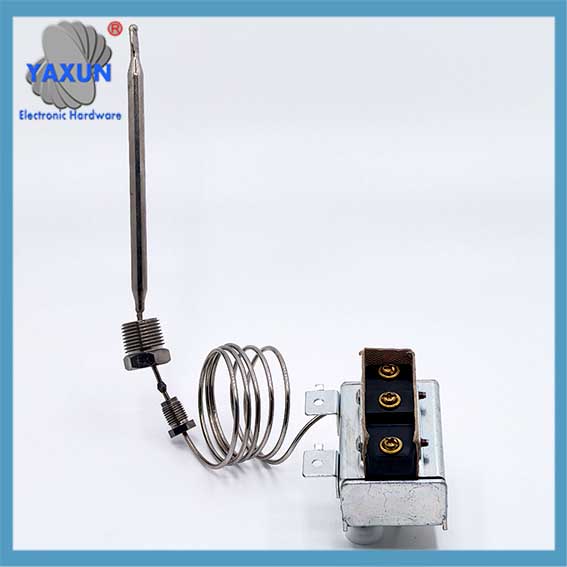

Gas Fryer Electric Water Heater Liquid Expansion Capillary Thermostat

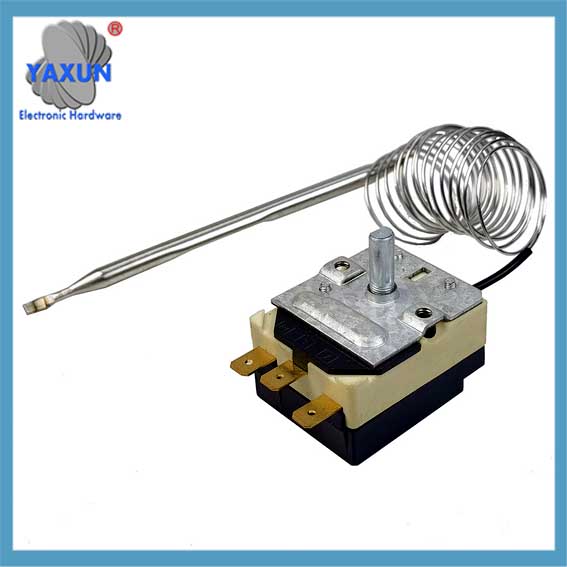

TR 711 Thermostat, Freezer Temperature Controller

Working principle of Liquid capillary expansion thermostat
The working principle of liquid expansion thermostat is based on physical deformation caused by temperature change. When the oil temperature of the hydraulic system exceeds the set range, the temperature sensor inside the thermostat will sense this change and produce a conduction or disconnection action through physical deformation, thereby controlling the working state of the heater or cooler to maintain the oil temperature of the hydraulic system within the set range. This automatic control mechanism ensures the stable operation and energy saving effect of the hydraulic system.

Specific application and classification of Liquid capillary expansion thermostat
Liquid expansion capillary thermostat usually uses a combination of heater and cooler to adjust the oil temperature. For hydraulic systems with a high degree of automation or strict requirements on the range of oil temperature changes, the temperature control device is designed as an automatic control mode. Domestic digital display temperature regulators generally have only upper and lower limit control points, so many hydraulic system manufacturers use two electric contact thermometers to control the operation of the heater and cooler respectively to achieve automatic control of the oil temperature. Zusätzlich, liquid expansion thermostat can also be classified according to specific application scenarios. Zum Beispiel, the pressure thermostat converts temperature changes into changes in pressure or volume in a closed space through a closed temperature bulb and capillary tube filled with a temperature-sensitive medium. When the temperature setting value is reached, the temperature is automatically controlled through elastic elements and a quick instantaneous mechanism.

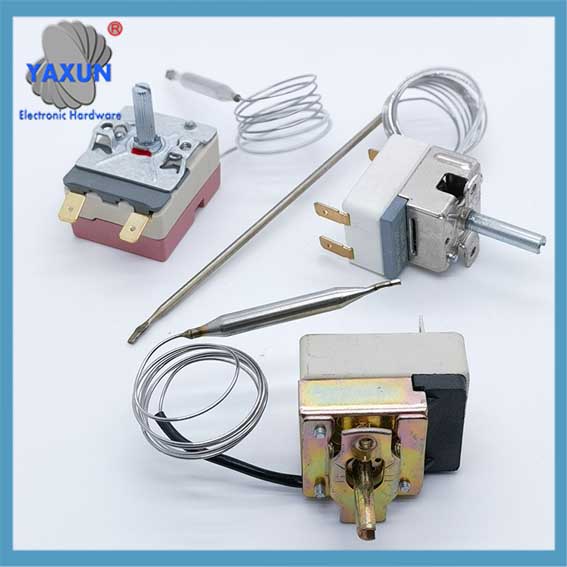

Embedded adjustable temperature switch for deep fryer, 300 degree grill

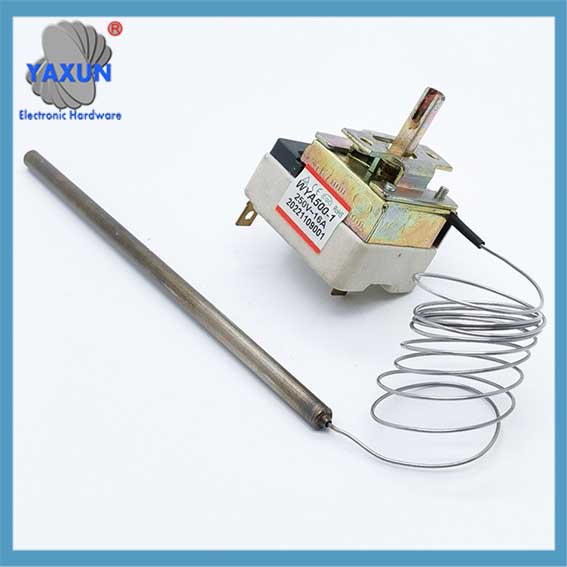

EGO 55.13082.010 500 °C high temperature boiler, constant temp oven thermostat

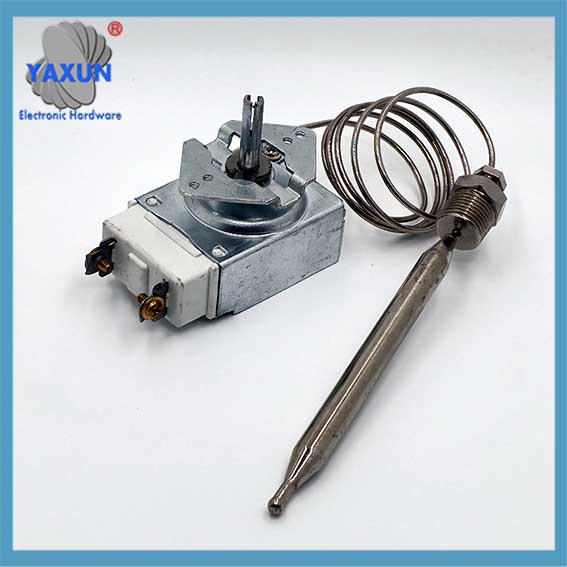

Replaces Robertshaw RX-2-24 Fryer Thermostat (93°C-204°C) 3/8″ NPT

Applicaion
Electric water heater；electric boiler; washing machine; electric oven; deep fryer ; air fryer.
