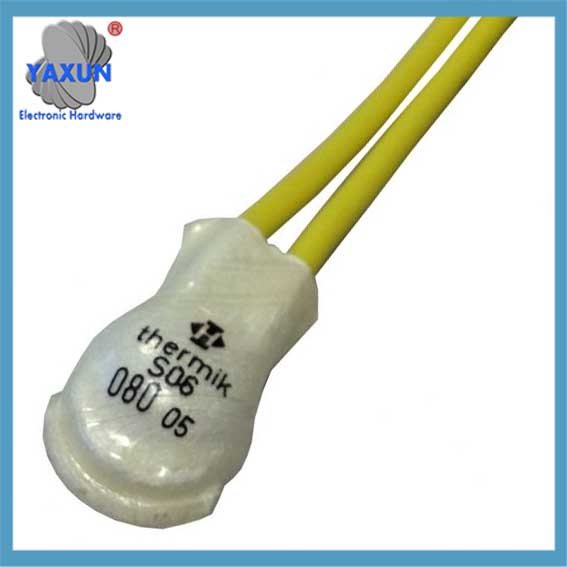

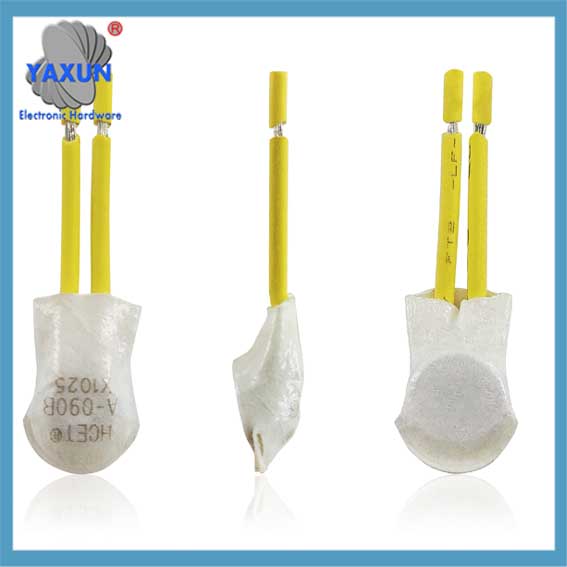

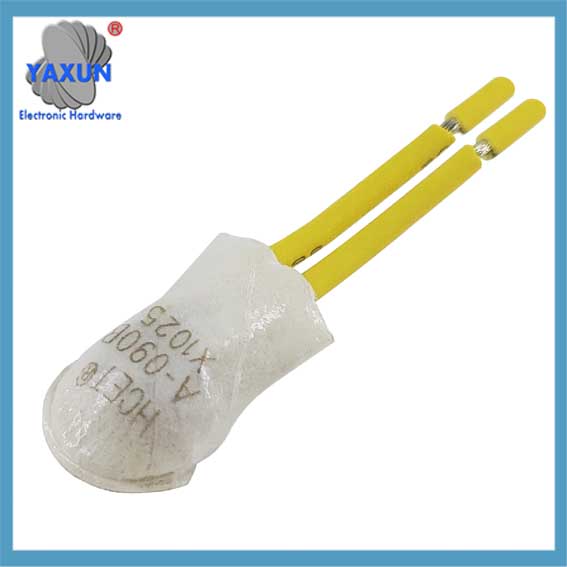

German McCormick Thermik S06 120.05 150.05 125.05 motor thermostat switch
Product series: ST06 motor thermostat switch Replaces German McCormick Thermik S06 S06 120.05 150.05 125.05
Electrical parameters: 6,3 A ~ 25 A
Normal closed;
Automatischer Reset;
With connecting wire;
Normal closed;
Automatischer Reset;
With connecting wire;
Polyester film – Nomex paper insulation;
Product series: ST06 motor thermostat switch Replaces German McCormick Thermik S06 S06 120.05 150.05 125.05
Electrical parameters: 6,3 A ~ 25 A
Normal closed;
Automatischer Reset;
With connecting wire;
Polyester film – Nomex paper insulation;
Main components of ST06 U1 thermal protector:
1) Ceramic cover 2) Static contact 3) Riveted shaft pin 4) Bimetallic strip 5) Pot 6) Moving contact 7) Shell
Connection structure
The static contact and ceramic cover are riveted together;
The moving contact, bimetallic strip and pot are riveted together through the shaft pin;
The moving contact is in close contact with the static contact under the pre-pressure of the pot; The current passes through the static contact and the moving contact to form a circuit.
Working principle
When the circuit is working normally, the moving contact and the static contact are in a closed state. When the temperature rises to the operating temperature, the bimetallic strip is deformed by the heat and quickly flips over, and moves downward with the pot piece through the riveted shaft pin, so that the moving contact piece and the static contact are separated and the circuit is cut off. After the circuit is cut off, the ambient temperature begins to drop. When it drops to the reset temperature, the bimetallic strip automatically flips back to the initial state, and the pot piece also rebounds to the initial state, so that the moving contact piece and the static contact are reconnected, and the circuit returns to normal working state.
S06 Thermik motor thermostat switch is applicable to Electric equipment, Small motor, Transformers, Lighting, electric product, household appliance, the protection of temperature control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers, inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,military, Commercial product temperature control or temperature protection.
S06Imported series temperature protectionTechnical parameters:
Rated voltage:50 / 60HZ, 250V, AC
Rated current:2.5 (1.6) A / 10 (6.3) A COS phi = 1.0 (0.6)
Rated disconnect temperature range:60~ 200Each5For a file
Reset temperature range: Disconnect the temperature is below30 15K
Authenticate:UL,VDE,SGS
Modell | S01 | S06 |
Contact types | Normally closed/Normally open | Normally closed/Normally open |
Rated switching temperature (NST) Each5A | 35℃-200℃ | 35℃-200℃ |
Standard Tolerances | 5K | 5K |
Reset temperature range | 30K 15K | 30K 15K |
Applying a voltage…AC… /DC | … 500V ~ / … 100V ~ = | … 500V ~ / … 100V ~ = |
Rated voltage, AC | 250V 500V | 250V 500V |
Rated current, ACCOS = 1.0 | 2.5A 0.75A | 10.0A 3.5A |
Rated current, ACCOS = 0.6 | 1.6A 0.50A | 6.3A 2.0A |
InInAndUnWhen switching times | 10.000 | 10.000 |
Maximum switching current250V ~ /Switching times | 5.0A / 2000 | 25A / 2000 |
Contact bounce time | <1ms | <1ms |
Contact resistance(ReferenceMIL-Stand, R5757) | <50m | <50m |
Immersion resistance(According toThermikTest) | Suit | Suit |
Seismic capacity10-60Hz | 100m / s2 | 100m / s2 |
Protection level | 1 | 1 |
Standard connection | Lead0.25mm2 | Lead0.75mm2 |

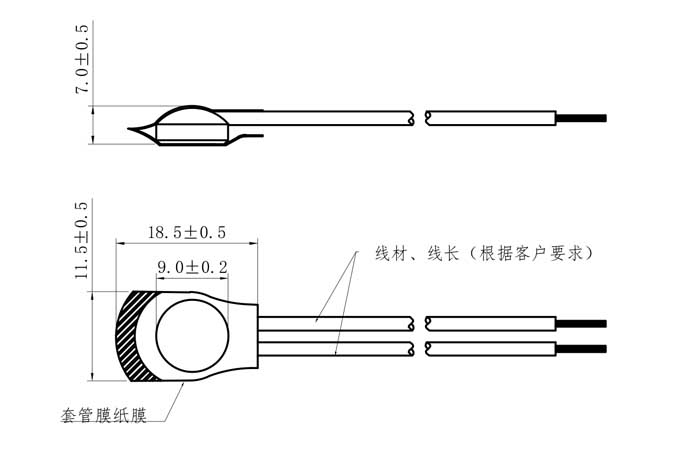

Diameterd (There is/Without insulating sleeve) | 9.4 / 9.0mm | 9.8 / 9.3mm |
Heighth (There is/Without insulating sleeve) | 4.8 / 4.3mm | 7.5 / 7.2mm |
Insulating sleeve length | 16mm | 18 |
