H3-44 Panel Fuse Holders 15A 6×32 Bayonet Mount with 4.8mm Terminal
H3-44 Panel Fuse Holders for 15A 6×32 fuse. Reduce risk of damage to Fuse electrical components • Fully enclosed plastic casing • Small, compact and neat • Wide variety of Ceramic / Glass fuse available to suit any application. These panel mount fuse holders are compatible with round fuse holder. They’re used with Class CC fuses to provide overcurrent protection of branch circuits.

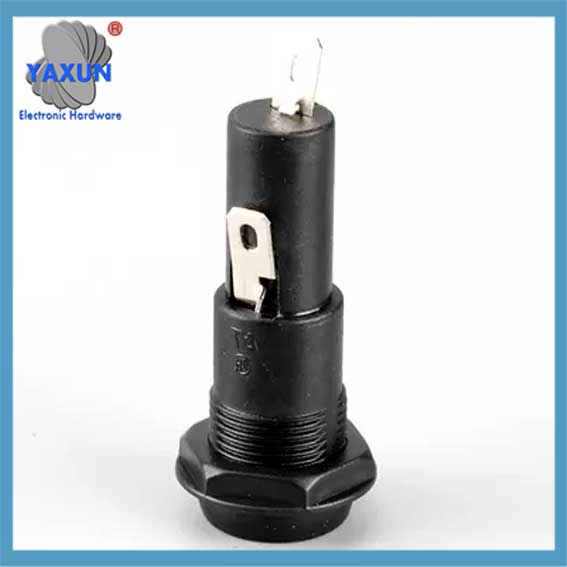

 6.3x32mm panel mount fuse holder, 15a 250v, H3-44 |

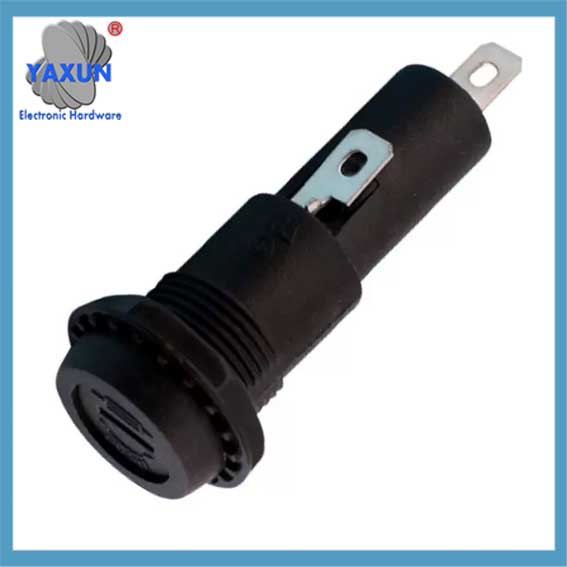

 H3-44 6×30 Fuse Block 4.8mm Faston Terminal Panel Fuse Holders |

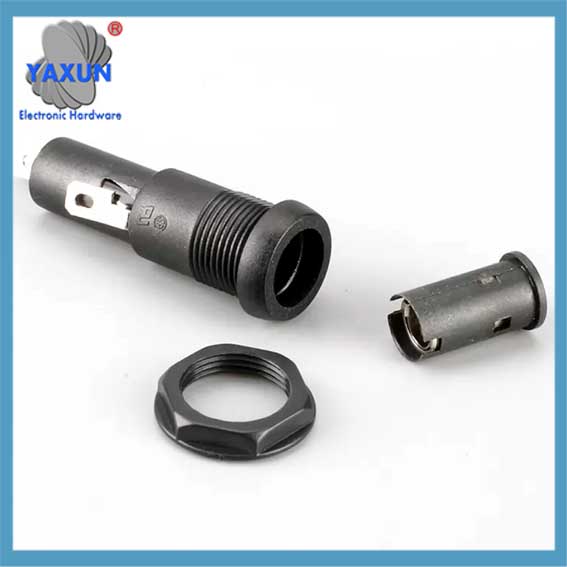

 H3-44 Panel Fuse Holders for 15A 6×32 fuse |
| Artikel: | H3-44 Fuse Holder | Mount-Typ: | Panel Mount |
| Cap Type: | Bayonet | Terminal Type: | Faston |
| Nennspannung: | 250V | Aktuelle Bewertung: | 15A |
| Angewendet auf: | 6×30 6×32 Tube Fuses | RoHS-konform: | Ja |
| Körpermaterial: | Phenolic Resin | Terminalmaterial: | Nickel Plated Brass |
| Total Length: | 54.3mm | Cut-Out Diameter: | 15.2mm |
| Hohes Licht: | 15.2mm Phenolic Resin Terminal H3-44 Fuse Holder | ||
Produktbeschreibung
Faston Terminal Panel Mount Fuse Holders 15A 6×32 Phenolic Resin
Produktbeschreibung
For 6×30 6x32mm 3AG FUSES
Kontaktwiderstand: <0.02Oh
Withstanding Voltage: >AC3000V
lnsulation Resistance: 100mΩ Min @DC500V
Electrical: Rated at 15A 250V AC
Insulating Body: phenolic resin/bakelite
Bayonet type cap
Terminals: nickel-plated brass, faston type.
| Artikelname | H3-44 Fuse Holder |
| Mouting Type | Panel |
| Elektrische Bewertung | 15A 250V |
| Fire retardant grade | 94V-1 |
| Frame and cap | phenolic resin / bakelite |
| Terminal | nickel plated brass, 4.8MM |
| Fuses | 6×30 6x32mm 3AG |
| Cut-out diameter | 15.2 mm |
| Total length | 50.3 mm |
| Schrauben | M15 |
2．Model:H3-44
3．Voltage breakdown:AC2500 1minute
4．insulation?resistance:DC 500V 100MΩ M
5．Rating:15Ein 250VAC
6．Temperature tolerance:-20° C -150° C
7．Flammability class:UL94V0
8．Standard:IEC-60335-1 GB_9364.6-2001
9．Certification:ISO9001, ROHS,
10.Mounting Ways:Panel installation
11.Material:Thermosetting glue, Huang Tongtong
12．International Approvals:CE, CQC, UL,VDE
13．Fuse size:5*20mm,6*30 ROHS,
14. Anwendung:It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.
Drawing of H3-44 6×30 6×32 fuse holder
