H3-44B Fuse Holders 4.8mm Terminal for 250V 15 Amp 5.2×20 Fuse
H3-44B 5.2×20 Panel Mount Fuse Holders 250V 15 Amp 4.8mm Faston Terminal Fuse Block ; These panel mount fuse holder is compatible with round fuse holder. They’re used with Class CC fuses to provide overcurrent protection of branch circuits. Item: H3-10A, H3-10B, H3-24, H3-44B, H3-45A, H3-45B, H3-50A, H3-50B, H3-56A, H3-56B, H3-60A, H3-60B, H3-67, H3-68, H3-77A, H3-78, H3-79, MF550, H80-A1.
H3-44B 5.2×20 Panel Mount Fuse Holders 250V 15 Amp 4.8mm Faston Terminal Fuse Block ; These panel mount fuse holder is compatible with round fuse holder. They’re used with Class CC fuses to provide overcurrent protection of branch circuits. Item: H3-10A, H3-10B, H3-24, H3-44B, H3-45A, H3-45B, H3-50A, H3-50B, H3-56A, H3-56B, H3-60A, H3-60B, H3-67, H3-68, H3-77A, H3-78, H3-79, MF550, H80-A1.

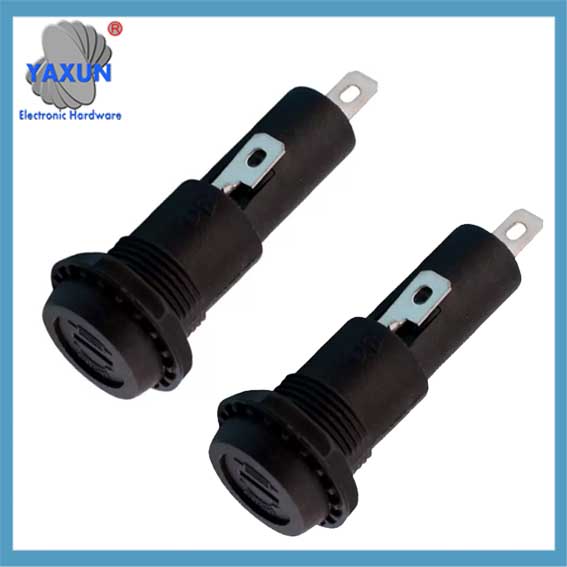

 H3-44B 5.2×20 Panel Mount Fuse Holders 250V 15 Amp 4.8mm Faston Terminal Fuse Block |

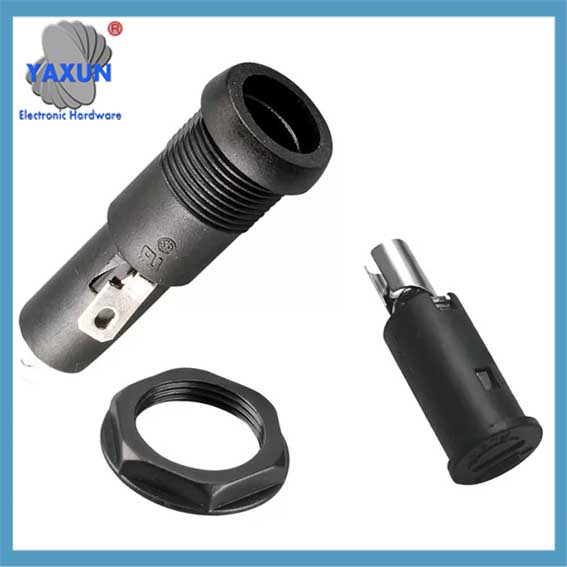

 China 15a panel fuse holder,5x20mm,250v,H3-44B |

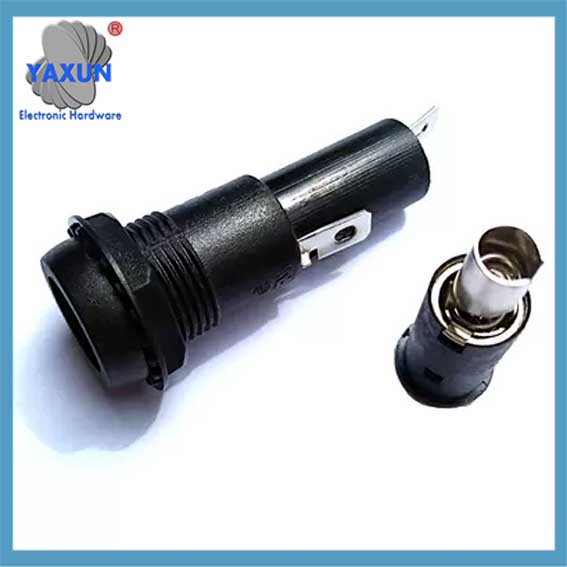

 Panel Mount Fuse Holder- H3-10A, H3-10B, H3-24, H3-44B, H3-45A, H3-45B, H3-50A, H3-50B |
| Item: | H3-44B Fuse Holder | Mount: | Panel Mount |
| Cap: | Bayonet | Terminal: | Nickel Plated Brass |
| Voltage: | 250Vac | Aktuell: | 15Amp |
| Applied To: | 5x20mm Fuses | RoHS Compliant: | Yes |
| Body: | Phenolic Resin | Length: | 54.3mm |
| Cut-Out Diameter: | 15.2mm | ||
| Hohes Licht: | H3-44B 15 Amp 5.2×20 Panel Mount Fuse Holders, 4.8mm Terminal Fuse Block | ||
Produktbeschreibung
5.2×20 Panel Fuse Holder H3-44B 15 Amp 250 Volts 5×20 Fuse Holder 4.8mm Faston Terminal Panel Mount
These panel-mount fuse holders are compatible with either 1-1/4″ x 1/4″ or 20mm x 5mm glass and ceramic fuses for overcurrent protection in electronics equipment, appliances, and lighting circuits. They have a removable cap for installing and removing fuses. They’re used with fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits.
Produktbeschreibung
Contact Resistance: <0.02Ω
Withstanding Voltage: >AC3000V
lnsulation Resistance: DC500V 100mΩ Min
Electrical Rating: Rated at 15A 250V AC
Insulating Body: phenolic resin/bakelite
Bayonet type cap
Terminals: nickel-plated brass, faston type.
| Item | H3-44B Fuse Holder |
| Mouting Style | Panel Mount |
| Rating | 15A 250Vac |
| Fire retardant grade | UL94V-1 |
| Frame and cap | phenolic resin/bakelite |
| Terminal | nickel plated brass |
| Fuse Size | 5x20mm |
| Cut-out diameter | 15.2mm |
Please allow 1-3mm tolerance due to manual measurement.
Product Features
15A 250V AC rating
5.2x20mm fuses
Bayonet type cap
Faston terminal
Phenorlc resln body
Drawing of H3-44B fuse holder
