Hochwertiger Standard-ATO-Sicherungshalter für Leiterplattenmontage, 125 V, Schwarz

Plastic PCB Mount ATC ATO Blade Fuse Clip Holder for Car AutoSuitable for all kinds of circuit boards installed in use, einfache Installation, kleine Größe, erschwinglich. Kann direkt auf eine Leiterplatte gelötet werden. This PCB mount fuse holders bring the reliability and availability of blade fuse to the circuit board. Widely used in household appliances, Automobil, electric force, telecommunications, machine tool, , textile, printing, Mining machine, Mustic Instrument, usw.

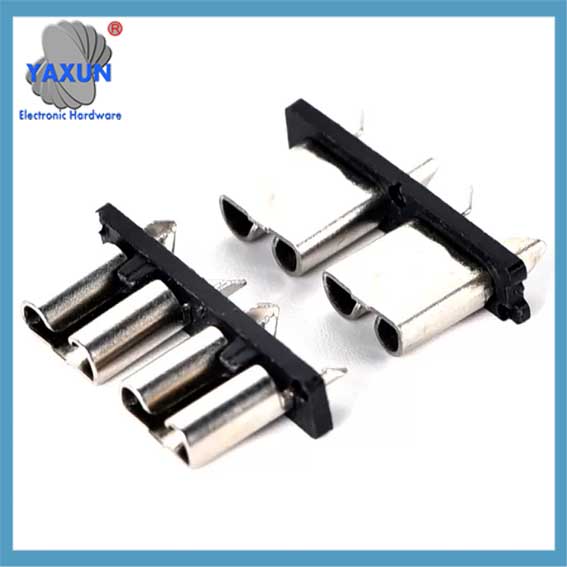

Hochwertiger Standard-ATO-Sicherungshalter für Leiterplattenmontage

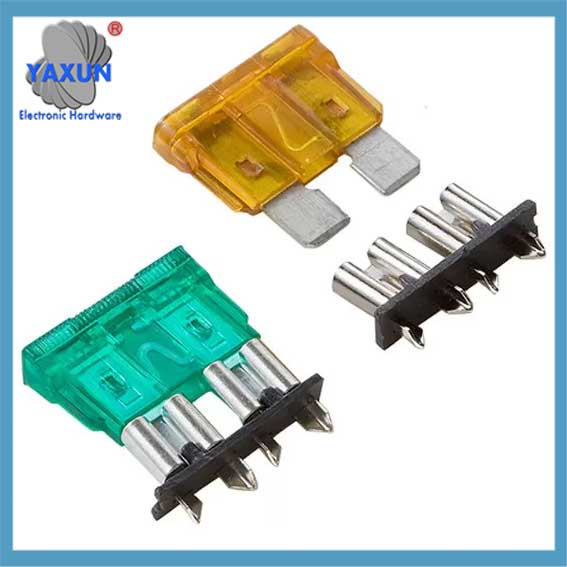

Standard blade fuse holder suitable for PCB mounting

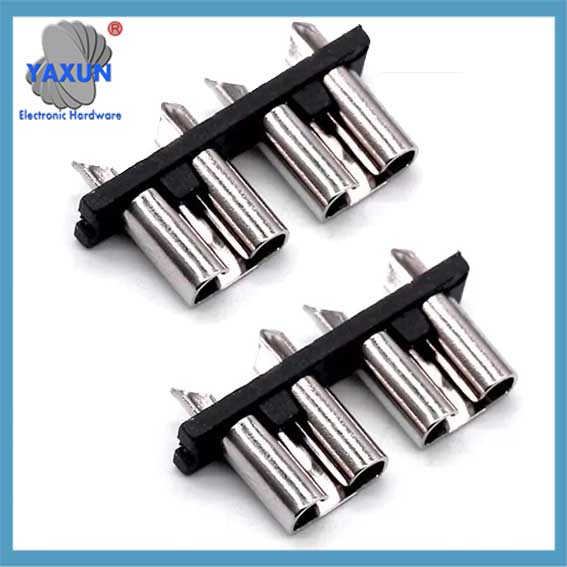

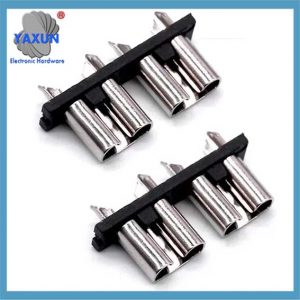

Atc/ato Flachsicherungshalter für Leiterplattenmontage

Produktname:	Fuse Clip Holder, Sicherungsclip	Mounting Way:	Leiterplatte
Ur:	125V 32V Dc	Und:	30A
Geeignet für:	Standard Blade Fuses ATO ATC	Isolationsmaterial:	PA66+glass Fiber
Contact Material:	Zinnplattierte Messing	Dimension:	19.5×4.5×11mm
RoHS-konform:	Ja
Hohes Licht:	125V PCB Mount ATO Blade Fuse Clip Holder

Produktbeschreibung
SL-506J ATO ATC Blade Fuse Holder PCB Mount Fuse Clip 125V 30A PCB Fuse Block For Medium Blade Fuses
Produktbeschreibung
1. Kontakte:Messing, tin plated
2. Insulation body: PA66, glass fiber
3. No burrs or sharp edge
4. For standard blade Fuses
6. Elektrische Bewertung: 30A 125Vdc
7. Insertion and extraction force: >1Kg
8. Spannungsfestigkeit: >2000Vac
9. Isolationswiderstand: >100mΩ @500VDC
10. Kontaktwiderstand: <50mΩ

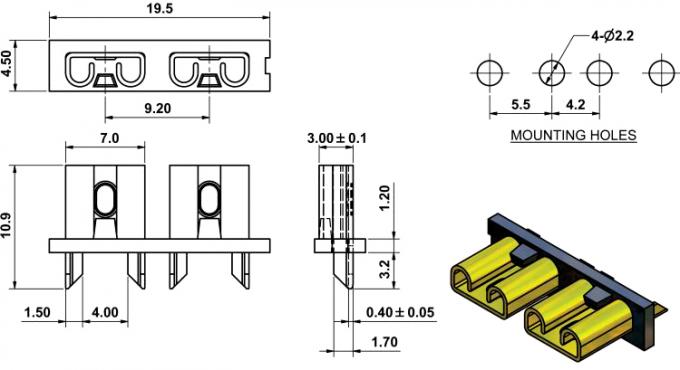

Drawing of SL-506J PCB Mount ATO Blade Fuse Clip

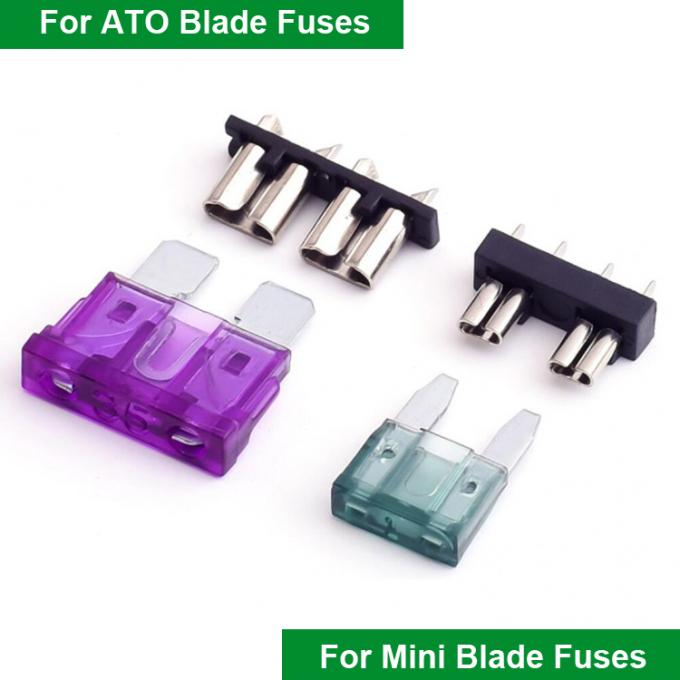

For ATO Blade Fuses For Mini Blade Fuses

Artikel	Blade Fuse Clip
Suitable for	ATO ATC ATS ATU Medium blade fuses
Mounting Style	Leiterplatte
Zertifizierung	RoHS
Körperfarbe	Schwarz
Körperlänge	19.5mm
Body Thickness	4.5mm
Höhe	10.9mm
Terminal Width	7mm
Terminal thickness	0.4mm

Suitable for all types of low-voltage electrical applications and automotive appliances.
Easy to install
Strong capability
Drawing of SL-506J PCB ATO Blade Fuse Clip
Blade Type Fuse Sizes

Blade size	Blade group	Dimensions L × W × H	Common ratings (maximum current)
Mikro2	GEEIGNET, ATR	9.1 × 3.8 × 15.3 mm	5, 7.5, 10, 15, 20, 25, 30
Mikro3	ATL	14.4 × 4.2 × 18.1 mm	5, 7.5, 10, 15
LP-Mini (niedriges Profil)	APS, ZU	10.9 × 3.81 × 8.73 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Mini	APM, Geldautomat	10.9 × 3.6 × 16.3 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A
Regulär	APR, ATC, ATO, ATS	19.1 × 5.1 × 18.5 mm	1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40
Maxi	APX	29.2 × 8.5 × 34.3 mm	20, 25, 30, 35, 40, 50, 60, 70, 80, 100,

Farben & Bewertungen

Farbe	Aktuelle Bewertung
Schwarz	1A
Grau	2A
Violett	3A
Rosa	4A
Bräunen	5A
Braun	7.5A
Rot	10A
Blau	15A
Gelb	20A
Transparent	25A
Grün	30A
Blaugrün	35A
Orange	40A

Anwendungen
Auto, Boot, LKW, SUV, Motorrad, usw.

Versandbedingungen:
EXW, DDU, DDP, C&F, FOB

Versandarten:
Express, Auf dem Luftweg, Auf dem Seeweg
Q1: What are your main products?
A1: Sicherungen, fuse holders, Thermoschalter, circuit breakers
Q2: How long is your delivery time?
A2: It depends on your qty. Most of the items are available within 15 Tage.
Q3: How can I get a sample? Is that for free?
A3: You are always welcome for requesting samples. Most of the samples are free of charge. But you will have to bear the express cost.
Q4:How can I get a more competitive price?
A4:Usually our quotation is made based on the order qty. You need to increase your qty if you demands lower prices.We can’t sacriface the quality for lower pricing and profit.
Q5:How do you control your quality system?
A5: We have enough number of QC staff at every stage from adopting materials, productionion, packing to loading, They are on for 7/24.
Q6:How long is your warranty period?
A6: Normally you will have 1-year warranty for most of our products.

Artikelname	703E Fuse Holder
Mouting Type	Panel
Elektrische Bewertung	30A 32V
Körperfarbe	Schwarz
Body material	PA66
Terminalmaterial	nickel plated brass
Länge	29mm
Breite	18mm
Dicke	15mm
Mounting hole	1.6mm dia
