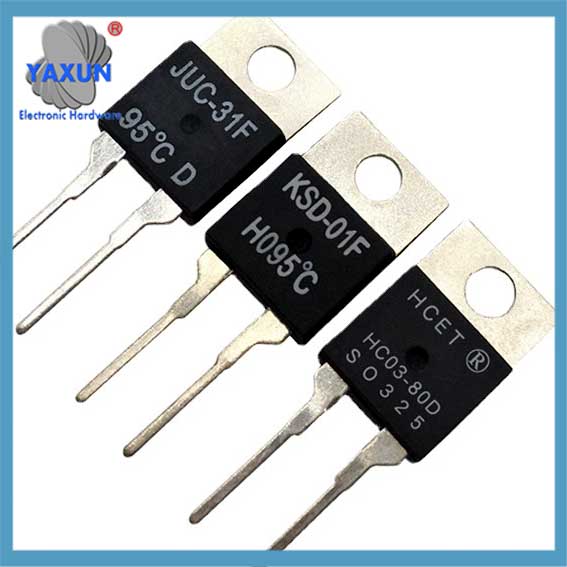

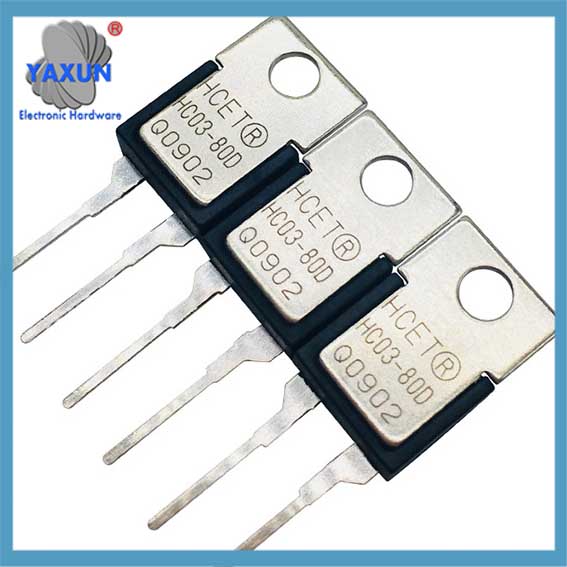

JUC-31F/KSD-01F/67F040 Temperature Switch TO220 bimetal thermal Control Thermostat
JUC-31F/KSD-01F/67F040 Temperature Switch (Normally Opened) TO220 plug-in bimetal thermal Control Thermostat for Testers Cooling Air Conditioning. JUC 31F Series TO-220 PCB-Bimetal Disc Thermostat meets RoHs standards. As a snap action SPST bimetallic thermostat, it gives accurate regulation for one device.
JUC-31F/KSD-01F/67F040 Temperature Switch (Normally Opened) TO220 plug-in bimetal thermal Control Thermostat for Testers Cooling Air Conditioning. JUC 31F Series TO-220 PCB-Bimetal Disc Thermostat meets RoHs standards. As a snap action SPST bimetallic thermostat, it gives accurate regulation for one device.
WE ARE THE ONLY MANUFACTURER OFFERING LOW TEMPERATURE AS LOW AS 0C (32F)~150C. The JUC-31F/KSD-01F/67F040 series is a RoHs compliant, snap action SPST bimetallic thermostat which provides accurate sensing capabilities in a single device.

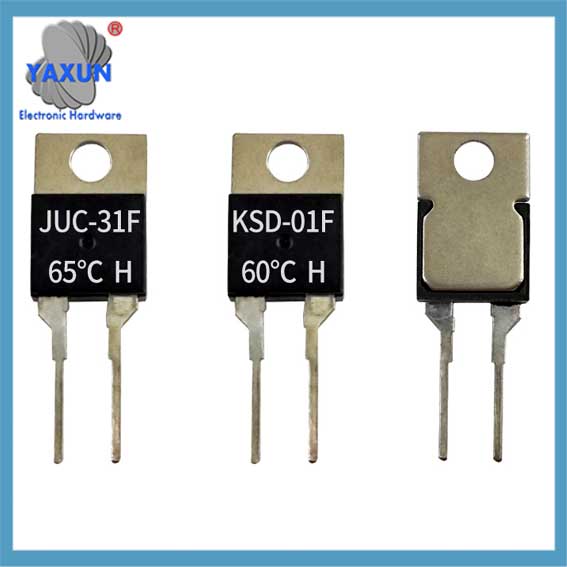

The JUC-31F Series confirms to IEP standards Y220/TO220. Therefore they may be automatically placed and soldered in a pick/place applications, ideal for printed circuit boards Factory calibrated 0C-150C in 5C increments.
This bimetal disc thermostat is designed for surface or air sensing for printed circuits and heat sinks and is available in normally open or normally closed configuration. Other features include:
Temperature range: 0C – 150C
Rohs compliant per EU directive 2002/95/EC

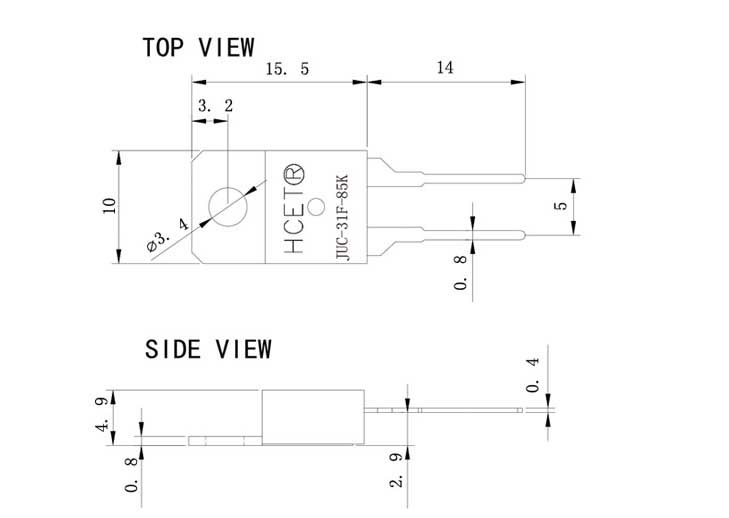

TO-220 international electronic package standard
100K cycles rating
Anwendungen
Power supplies
Medical devices
Test equipment
Refrigeration
HVAC
PCB
Features and advantages of JUC-31F/KSD-01F/67F040:
The shell is insulated and can resist water, salt water, alcohol, ammonia, trichloroethylene and most organic solvents.
The product is sensitive and does not arc, and has little radio interference.
The small size can better suit the installation and welding of printed circuit boards under high-speed automation equipment conditions, and can be easily installed.
Every product is calibrated and tested before leaving the factory to achieve the purpose of continuous and reliable working performance.
Electrical specifications:
2A/30V DC, 2A/120 V Wechselstrom, 1A/240V AC
Action temperature | Reset temperature | Action temperature | Reset temperature |
30±4℃ | 20以上 | 105±5℃ | 70±15 |
35±4℃ | 25以上 | 110±5℃ | 75±15 |
40±5℃ | 25±10 | 115±5℃ | 75±15 |
45±5℃ | 30±10 | 120±5℃ | 80±15 |
50±5℃ | 35±10 | 125±5℃ | 85±15 |
55±5℃ | 35±10 | 130±5℃ | 90±15 |
60±5℃ | 40±10 | 135±5℃ | 90±15 |
65±5℃ | 45±12 | 140±5℃ | 100±15 |
70±5℃ | 45±15 | 145±5℃ | 105±15 |
75±5℃ | 50±15 | 150±5℃ | 105±15 |
80±5℃ | 55±15 | 155±5℃ | 110±15 |
85±5℃ | 55±15 |
The special specification can also be manufactured as request |
|
90±5℃ | 60±15 | ||
95±5℃ | 65±15 | ||
100±5℃ | 70±15 |
