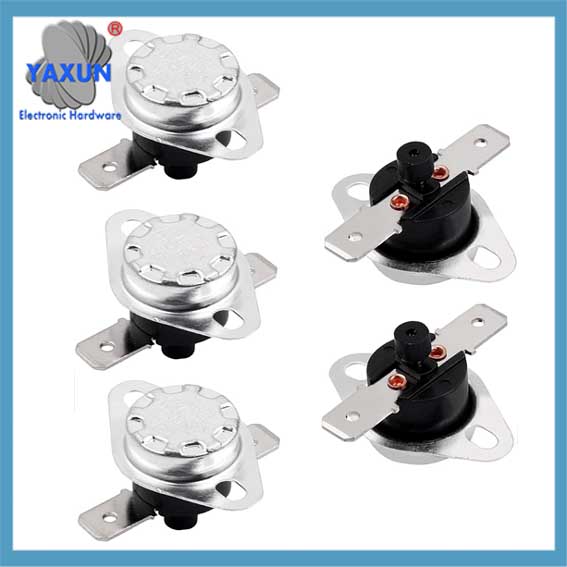

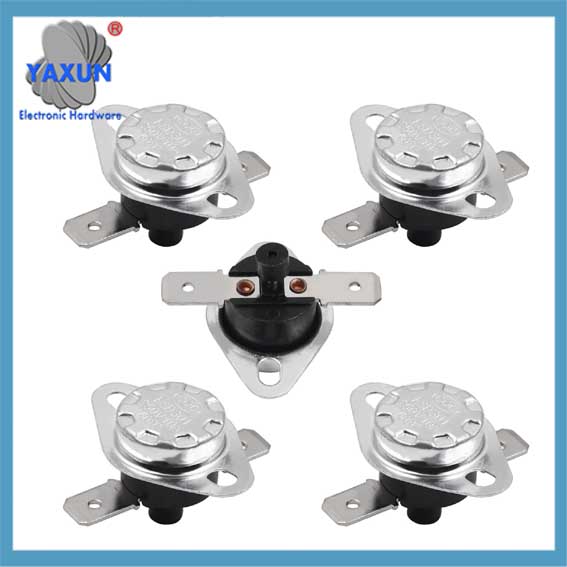

KSD301 Bimetal Snap Disc Temperature Switch for Microwave, Oven, Coffee Maker
KSD301 Series Bimetal Snap-Action Temperature Switches are based on a bimetal snap disc two-contact system with Disc thermostat response sensitivity. KSD301 Temperature Switch Bimetal 10A 250V Normally Closed NC / 110°C Automatic reset. Voltage: 250V Current: 10A; Fixing centres: 24mm.
KSD301 Series Bimetal Snap-Action Temperature Switches are based on a bimetal snap disc two-contact system with Disc thermostat response sensitivity. KSD301 Snap Disc, or snap switch thermostats are bimetal mechanical thermostats that function via the thermal expansion and contraction of a bimetal disc that “snaps”.
KSD301 Disc Thermostat (Snap-Action), Contact Voltage 120/240, Temperaturbereich 113 to 127 F, Switch Action: Closes on Rise, Differential: 30 F.

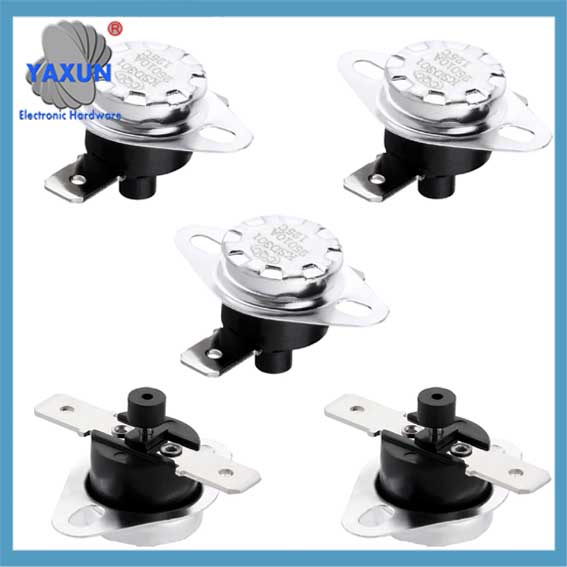

KSD301 Temperature Switch Bimetal 10A 250V Normally Closed NC / 110°C Automatic reset. Voltage: 250V Current: 10A; Fixing centres: 24mm.
KSD301 Disc Temperature Switch’s specification
1. Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max 16A
2. Action Temperature: -10~300 degree
3. Recovery and action temperature difference: 10 to 25 Grad, or according to client’s request.
4. Temperature deviation: +-3 / +-5 / +-10 degree or according to client’s request
5. Circuit resistance: ≤50mΩ (Initial value)
6. Insulation resistance: ≥100mΩ (DC500V Normal State)
7. Dielectric Strength: AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle: ≥100000
8. Normally closed or open
9. Two kinds of mounting bracket: movable or immovable
10. Terminal:
a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
11. Two kinds of body: plastic or ceramic.
12. Two kinds of temperature sensor face: aluminium cap or copper head.
KSD301 Temperature Switch Open temperature & Temperatur zurücksetzen
1. According to customer’s request to set the open temperature and reset temperature.
2. The standard open temperature and reset temperature’s sheet for auto reset type as below
Open Temp. | Reset Temp. | Open Temp. | Reset Temp. | Open Temp. | Reset Temp. |
-20℃+-5℃ | 5℃+-5℃ | 95℃+-5℃ | 80℃+-5℃ | 205℃+-5℃ | 175℃+-10℃ |
-15℃+-5℃ | 5℃+-5℃ | 100℃+-5℃ | 80℃+-10℃ | 210℃+-5℃ | 180℃+-10℃ |
-10℃+-5℃ | 5℃+-5℃ | 105℃+-5℃ | 85℃+-10℃ | 215℃+-5℃ | 185℃+-10℃ |
0℃+-5℃ | -10℃+-5℃ | 110℃+-5℃ | 90℃+-10℃ | 220℃+-5℃ | 190℃+-10℃ |
5℃+-5℃ | -5℃+-5℃ | 115℃+-5℃ | 95℃+-10℃ | 225℃+-5℃ | 195℃+-10℃ |
10℃+-5℃ | 0℃+-5℃ | 120℃+-5℃ | 100℃+-10℃ | 230℃+-5℃ | 200℃+-10℃ |
15℃+-5℃ | 5℃+-5℃ | 125℃+-5℃ | 105℃+-10℃ | 235℃+-5℃ | 205℃+-10℃ |
20℃+-5℃ | 5℃+-5℃ | 130℃+-5℃ | 110℃+-10℃ | 240℃+-5℃ | 210℃+-10℃ |
25℃+-5℃ | 10℃+-5℃ | 135℃+-5℃ | 115℃+-10℃ | 245℃+-5℃ | 215℃+-10℃ |
30℃+-5℃ | 15℃+-5℃ | 140℃+-5℃ | 120℃+-10℃ | 250℃+-5℃ | 220℃+-10℃ |
35℃+-5℃ | 20℃+-5℃ | 145℃+-5℃ | 125℃+-10℃ | 255℃+-5℃ | 225℃+-10℃ |
40℃+-5℃ | 25℃+-5℃ | 150℃+-5℃ | 130℃+-10℃ | 260℃+-5℃ | 230℃+-10℃ |
45℃+-5℃ | 30℃+-5℃ | 155℃+-5℃ | 130℃+-10℃ | 265℃+-5℃ | 235℃+-10℃ |
50℃+-5℃ | 35℃+-5℃ | 160℃+-5℃ | 135℃+-10℃ | 270℃+-5℃ | 240℃+-10℃ |
55℃+-5℃ | 40℃+-5℃ | 165℃+-5℃ | 140℃+-10℃ | 275℃+-5℃ | 245℃+-10℃ |
60℃+-5℃ | 45℃+-5℃ | 170℃+-5℃ | 145℃+-10℃ | 280℃+-5℃ | 250℃+-10℃ |
65℃+-5℃ | 50℃+-5℃ | 175℃+-5℃ | 150℃+-10℃ | 285℃+-5℃ | 255℃+-10℃ |
70℃+-5℃ | 55℃+-5℃ | 180℃+-5℃ | 155℃+-10℃ | 290℃+-5℃ | 260℃+-10℃ |
75℃+-5℃ | 60℃+-5℃ | 185℃+-5℃ | 155℃+-10℃ | 295℃+-5℃ | 265℃+-10℃ |
80℃+-5℃ | 65℃+-5℃ | 190℃+-5℃ | 160℃+-10℃ | 300℃+-5℃ | 270℃+-10℃ |
85℃+-5℃ | 70℃+-5℃ | 195℃+-5℃ | 165℃+-10℃ | ||
90℃+-5℃ | 75℃+-5℃ | 200℃+-5℃ | 170℃+-10℃ |
